Young’s Modulus Apparatus

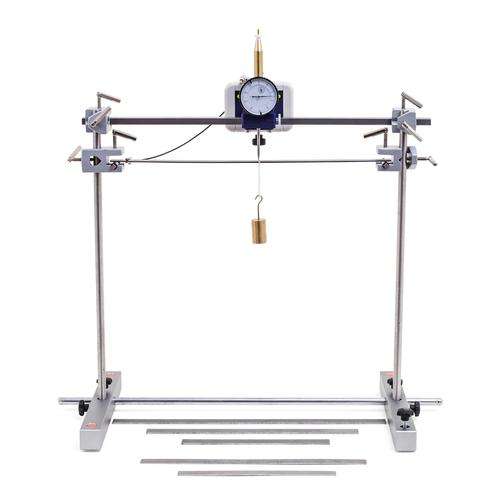

Young’s Modulus Apparatus, 1018527 [U8557260], Elastic Deformation
$ 1,270.00
In Stock
In stock
Included In Bundle
Overview of all experiments in which the product is used
Experiment Topics: ..
• Elastic deformation of flat bars
• Determining modulus of elasticity

Product Information: ..
Measuring apparatus for investigating the elastic deformation of rods of flat geometry and for determining the modulus of elasticity. Features a strain gauge unit for determining the deformation of electrically conducting material samples. The strain gauge unit is electrically connected to the material sample in such a way that placing of the probes on the sample is determined with a high degree of sensitivity and displayed with the help of two LEDs. The bending of the material sample with the weight suspended is measured to an accuracy of 0.01 mm and the modulus of elasticity can then be calculated from the reading.

Advantages: ..
• Load characteristics of the strain gauge may be ignored
• Measurements can be set up with the material samples supported on both sides or clamped at one end

Specifications: ..
Measurement accuracy: 0,01 mm
Battery of measurement unit: 9 V, 6F22
Dimensions: 550 mm x 280 mm x 500 mm
Weight: 5.5 kg approx.

Contents: ..
6 Flat steel rods (w: 15 mm, l: 200 / 300 / 400 mm, thickness: 2 / 3 mm)
1 Strain gauge unit
1 Horizontal beam with stand
2 Knife-edge bearings
1 Clamping chuck
1 Set of weights and retaining clamps



Item No.: 1018527 [U8557260]
Weight 12.35 lb
Dimensions 21.7 x 11.0 x 19.7 in
Brand 3B Scientific

Documentation

PDF Product Manual - Young’s Modulus Apparatus - U8557260 [1018527] (EN)
