Resistance Apparatus

Resistance Apparatus, 1009949 [U8492030], Resistance Measurement
Resistance Apparatus, 1009949 [U8492030], Resistance Measurement
$ 445.00
In Stock
In stock
Included In Bundle
Overview of all experiments in which the product is used
Product Information: ..

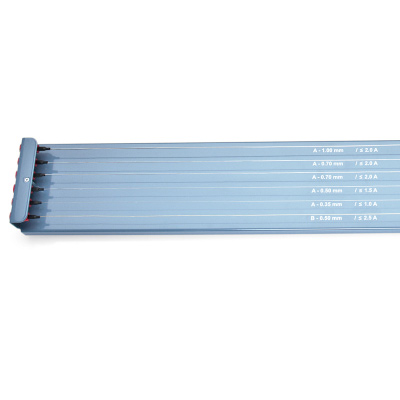

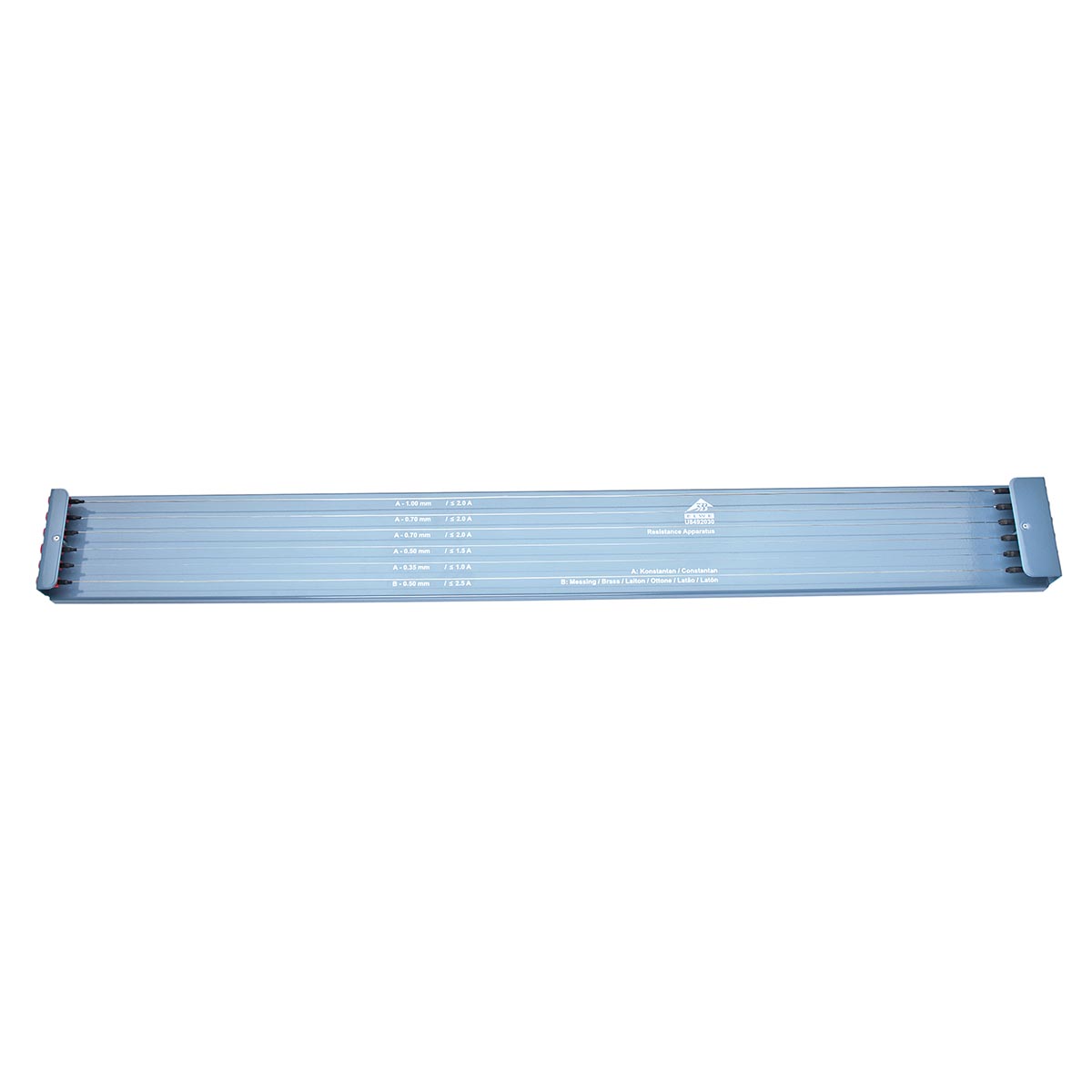

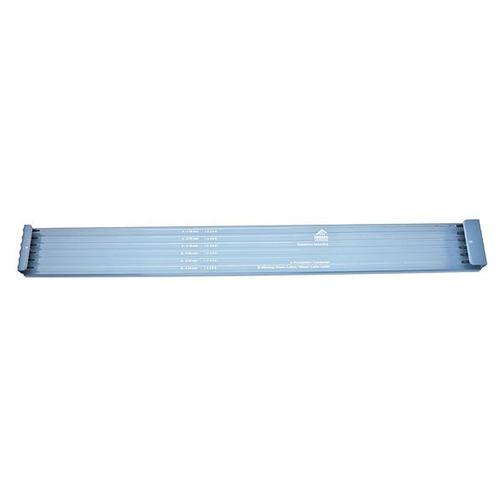

Apparatus to investigate the dependency of electrical resistance on conductor length, conductor cross-section and material. Six wires are laid out side by side on a metal base and both ends connect to 4 mm sockets.

Wire specimens: ..
Constantan: 1.0 mm dia.
  0.7 mm dia. (2x)
  0.5 mm dia.
  0.35 mm dia.
Brass: 0.5 mm dia.

Specifications: ..
Wire lengths: 1000 mm
Dimensions: approx. 1085 mm x 120 mm x 50 mm
Weight: approx. 1.35 kg

Item No.: 1009949 [U8492030]
Weight 2.95 lb
Brand 3B Scientific

Documentation

PDF Product Manual - Resistance Apparatus - U8492030 [1009949] (EN)
