Kadmiumlámpa kiegészítőkkel
(115 V, 50/60 Hz)

Kadmiumlámpa kiegészítőkkel
(115 V, 50/60 Hz), 1021747 [U8557780-115], Zeeman-Effektus (Small)

Kadmiumlámpa kiegészítőkkel
(115 V, 50/60 Hz)

646 176,00 Ft

A termék felhasználásával végzett összes kísérlet áttekintése

Kérdés a termékkel kapcsolatosan

Leírás
A következő kísérletekben használják

Product Information:_..

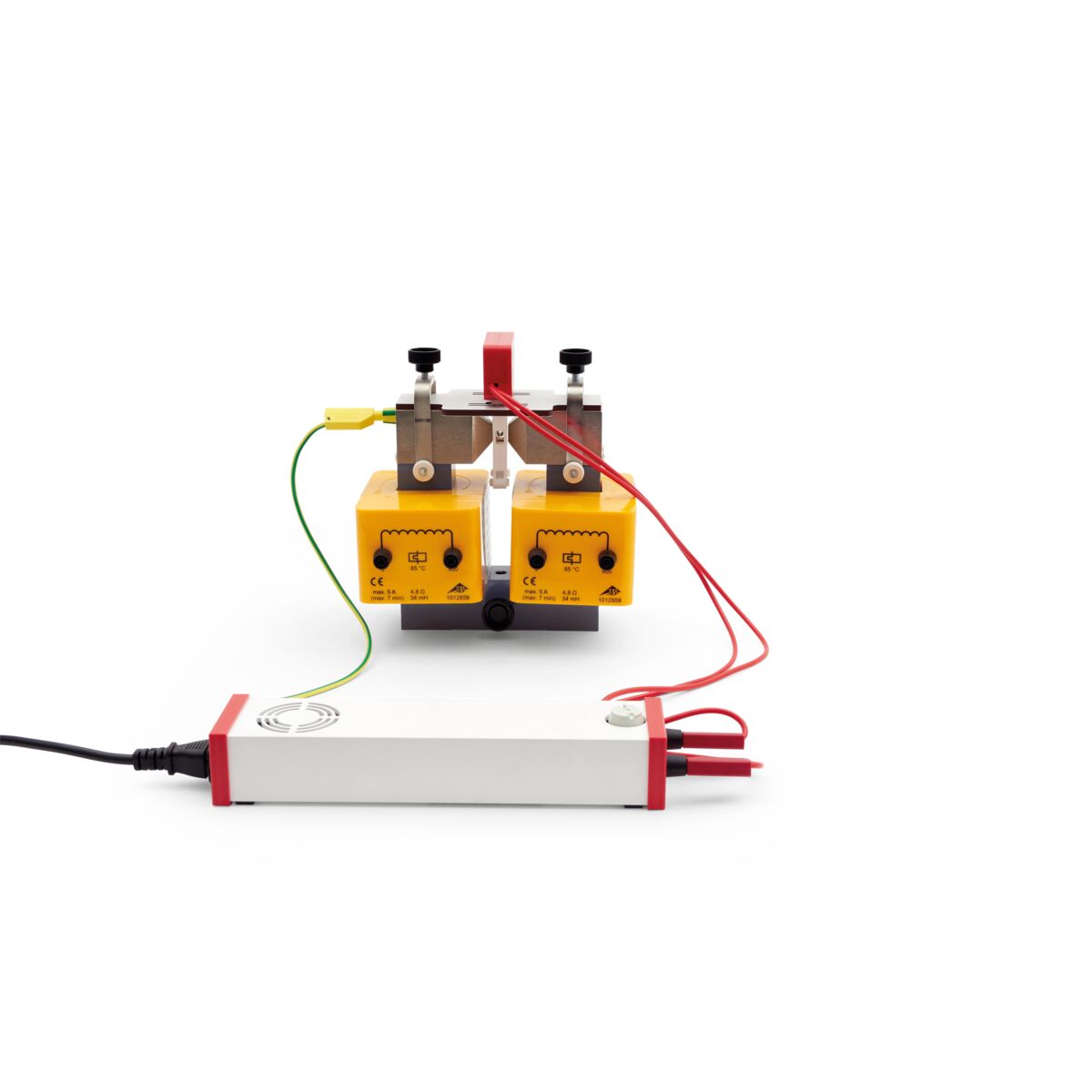

For the experiment to demonstrate the Zeeman effect. The casing of the lamp is made of heat-resistant plastic and has both longitudinal and lateral openings, such that it is only necessary to rotate the electromagnet by 90° when swapping from transverse to longitudinal configuration. Power is supplied from the ballast unit specifically designed for the cadmium lamp, which also provides protective earthing via a connection from the ballast unit to the pole piece of the electromagnet accessory for the Zeeman effect. The cadmium lamp is positioned in the air gap of the electromagnet by securing the lamp's base plate to the pole pieces of the magnet with the help of the clamp for the Zeeman effect electromagnet (P-1021365).

Specifications:_..

Cadmium lamp:_..
Electrical power:	max. 15 W
Operating temperature range:	5 – 40°C
Warm-up time (90% of light output):	5 min approx.

Lamp casing:_..
Dimensions:	110 mm x 70 mm x 20 mm approx.
Weight including lamp:	160 g approx.

Ballast:_..
Electrical power consumption in operation with lamp:	110 W approx.
Dimensions:	260 mm x 60 mm x 45 mm approx.
Weight:	930 g approx.

Base plate:_..
Dimensions:	130 mm x 80 mm x 5 mm approx.
Weight:	55 g approx.
Protection class:	CAT II
