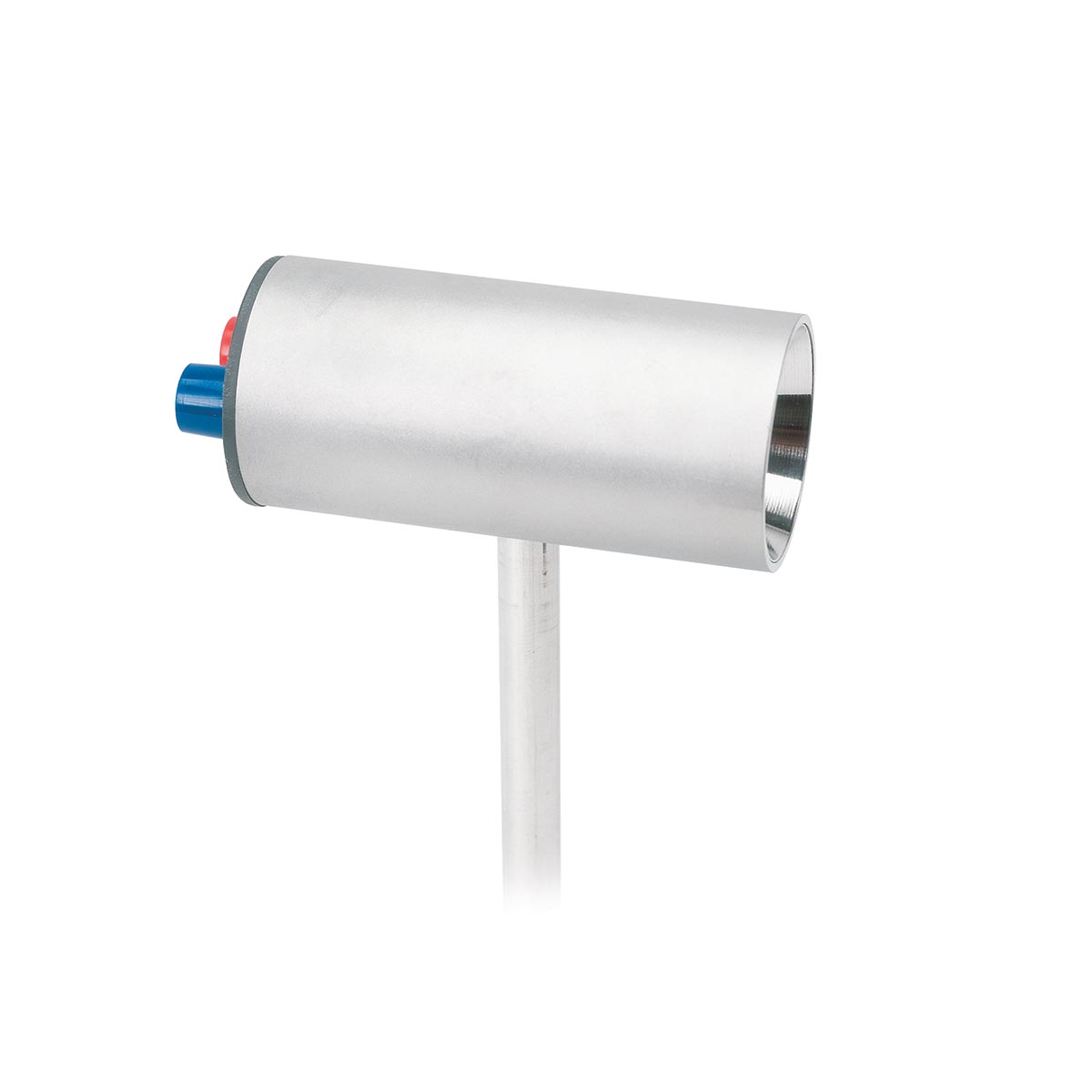

Moll’s Thermopile
![Moll’s Thermopile, 1000824 [U8441301], Heat Flow and Radiation of Heat](/imagelibrary/U8441301/U8441301_01_Moll-s-Thermopile.jpg)
![Moll’s Thermopile, 1000824 [U8441301], Heat Flow and Radiation of Heat](/thumblibrary/U8441301/U8441301_01_1200_1200_Moll-s-Thermopile.jpg)
Moll’s Thermopile
| Application: .. |
| Product Information: .. |
With two 4 mm safety sockets, mounted on a stem.
| Specifications: .. |
| Sensitivity: | 0.14 µV / µW approx. |
| Response time: | 40 s for 95% of the measured value |
| Absorber area: | 15 mm Ø approx. |
| Internal resistance: | 1 Ω approx. |
| Connections: | two 4 mm safety sockets |
| Stem: | 10 mm Ø |
| Dimensions: | 94 mm x 40 mm Ø approx. |
| Weight: | 200 g approx. |
Item No.: 1000824 [U8441301]
| Weight | 0.45 kg |
| Brand | 3B Scientific |
