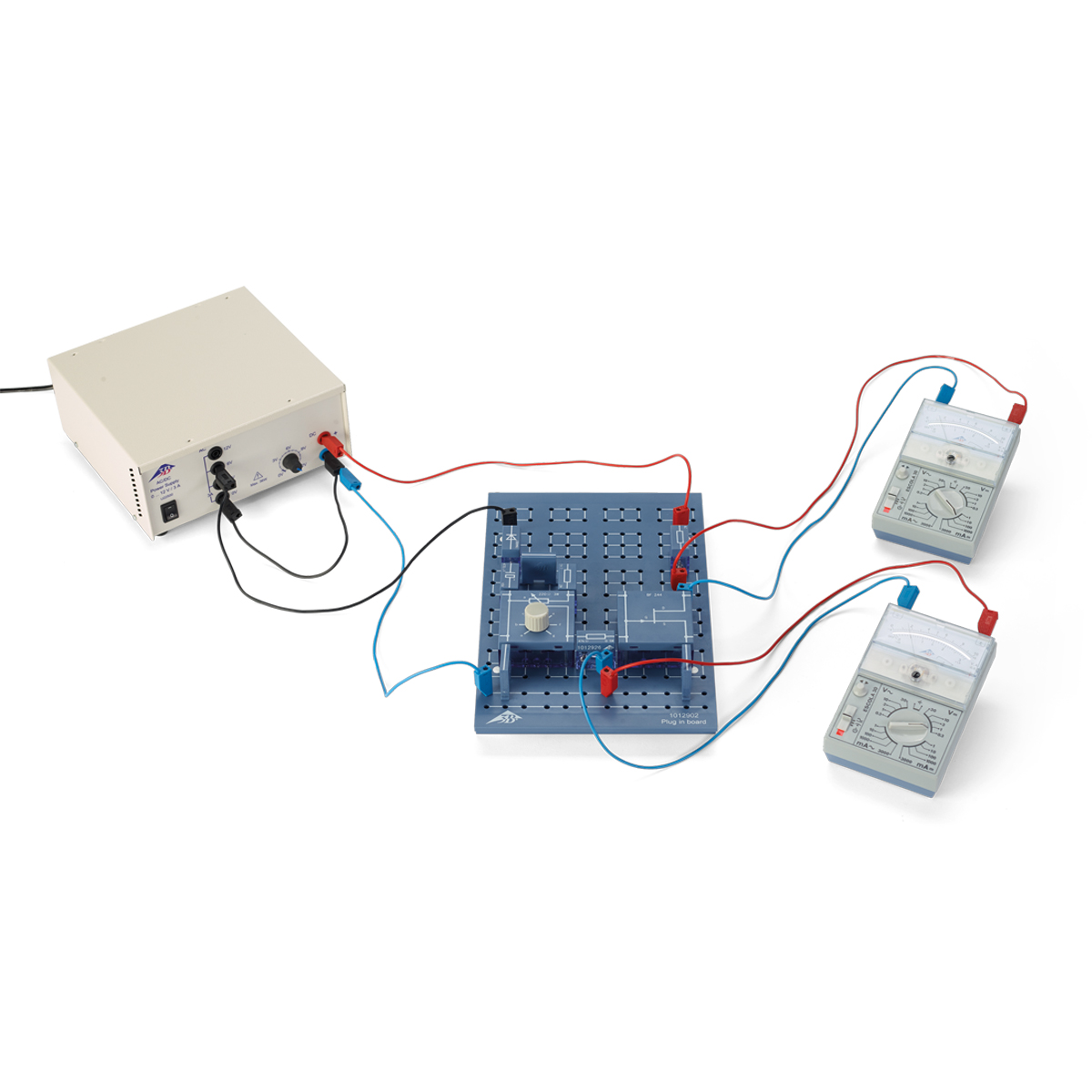

Kísérlet:
Térvezérlésű tranzisztor (FET)
![Kísérlet:
Térvezérlésű tranzisztor (FET), 8000676 [UE3080300-230], Elektronika](/imagelibrary/UE3080300-230/UE3080300-230_01_Kiserlet-Tervezerlesu-tranzisztor-FET.jpg)
![Kísérlet:
Térvezérlésű tranzisztor (FET), 8000676 [UE3080300-230], Elektronika](/thumblibrary/UE3080300-230/UE3080300-230_01_1200_1200_Kiserlet-Tervezerlesu-tranzisztor-FET.jpg)
Kísérlet:
Térvezérlésű tranzisztor (FET)
Objective: Measure the characteristics of a field effect transistor
A field effect transistor (FET) is a semiconductor component in which electric current passes through a channel and is controlled by an electric field acting perpendicular to the channel. FETs have three contacts, called source, drain and gate due to their respective functions. If a voltage is applied between the source and the drain, then a drain current flows between the two. For small voltages between the drain and source, an FET acts like a simple ohmic resistor with a correspondingly linear characteristic. As the source-drain voltage increases, the channel becomes restricted and eventually is cut off entirely. The characteristic then enters an area of saturation. When the gate voltage is non-zero, the saturation value of the drain current decreases.
Kódszám: 8000676 [UE3080300-230]
| Márka | 3B Scientific |
