Kísérlet:
Bipoláris tranzisztor

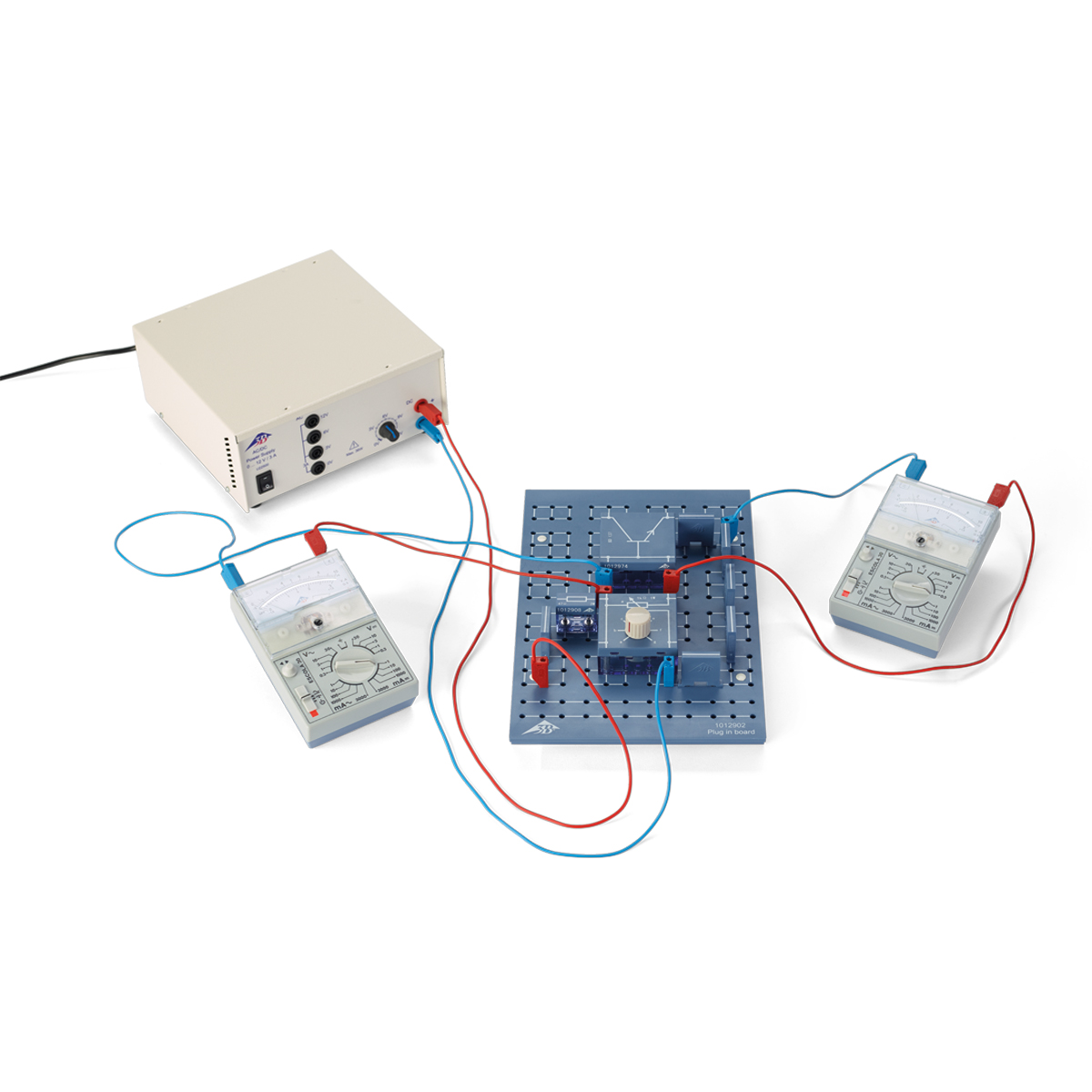

![Kísérlet:
Bipoláris tranzisztor, 8000674 [UE3080200-230], Elektronika](/imagelibrary/UE3080200-230/UE3080200-230_01_Kiserlet-Bipolaris-tranzisztor.jpg)
![Kísérlet:
Bipoláris tranzisztor, 8000674 [UE3080200-230], Elektronika](/thumblibrary/UE3080200-230/UE3080200-230_01_1200_1200_Kiserlet-Bipolaris-tranzisztor.jpg)
Kísérlet:
Bipoláris tranzisztor
Objective: Messung der relevanten Kennlinien eines npn-Transistors
A bipolar transistor is an electronic component composed of three alternating p-doped and n-doped semiconductor layers called the base, the collector and the emitter. Depending on the sequence of the layers, the transistor may either be termed npn or pnp. The response of a bipolar transistor may be distinctively described by, for example, an input characteristic, a control characteristic and an output characteristic. In this experiment, examples of these are to be measured for an npn transistor, displayed on a graph and evaluated.
Kódszám: 8000674 [UE3080200-230]
| Márka | 3B Scientific |
