Interferenciaszűrő, 546 nm

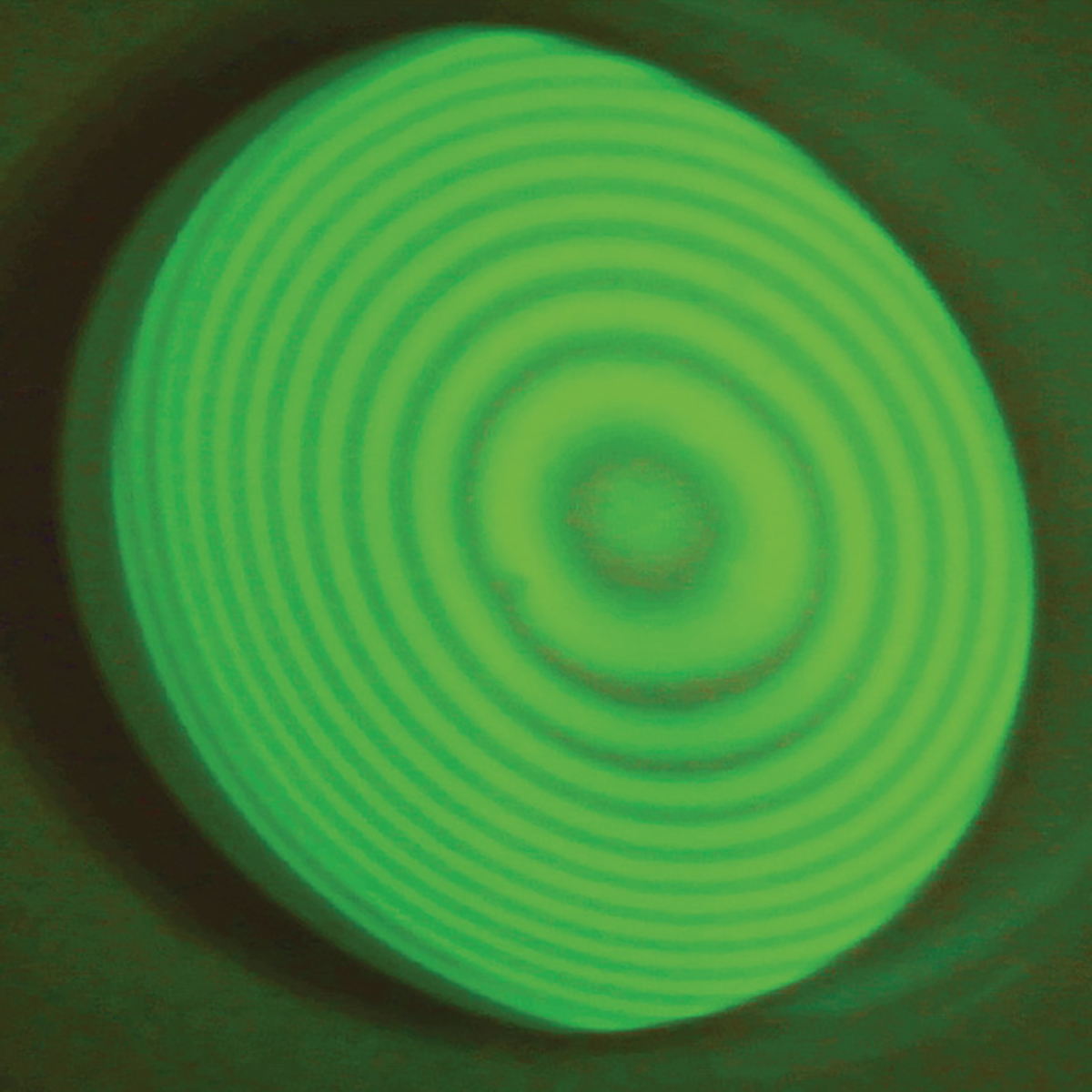

![Interferenciaszűrő, 546 nm, 1008670 [U22019],
Színszűrők](/imagelibrary/U22019/U22019_01_Interferenciaszuro-546-nm.jpg)
![Interferenciaszűrő, 546 nm, 1008670 [U22019],
Színszűrők](/thumblibrary/U22019/U22019_01_1200_1200_Interferenciaszuro-546-nm.jpg)
Interferenciaszűrő, 546 nm
Narrow frequency-range optical filters for filtering out light of a specific wavelength from a spectrum featuring multiple wavelengths or for making a nearly mono-chromatic light source from a continuous spectrum.
Diameter: 40 mm
Thickness: 3 mm
Precision: 3 nm
Band width (full width half maximum): 10 nm
Transmission: > 60 %
Parasitical transmission: < 1 %
Wavelength: 546 nm
Filtered spectral lines: Green mercury line
The suitable component holder can be ordered separately (see Recommended).
Diameter: 40 mm
Thickness: 3 mm
Precision: 3 nm
Band width (full width half maximum): 10 nm
Transmission: > 60 %
Parasitical transmission: < 1 %
Wavelength: 546 nm
Filtered spectral lines: Green mercury line
The suitable component holder can be ordered separately (see Recommended).
Kódszám: 1008670 [U22019]
| Súly | 0.1 kg |
