Fűtőkemence
(115 V, 50/60 Hz)

Fűtőkemence (115 V, 50/60 Hz), 1006796 [U8482590-115], Tartozékok, D típus
Fűtőkemence (115 V, 50/60 Hz), 1006796 [U8482590-115], Tartozékok, D típus
Fűtőkemence (115 V, 50/60 Hz), 1006796 [U8482590-115], Tartozékok, D típus
500 253,00 Ft

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz

Product Information: ..

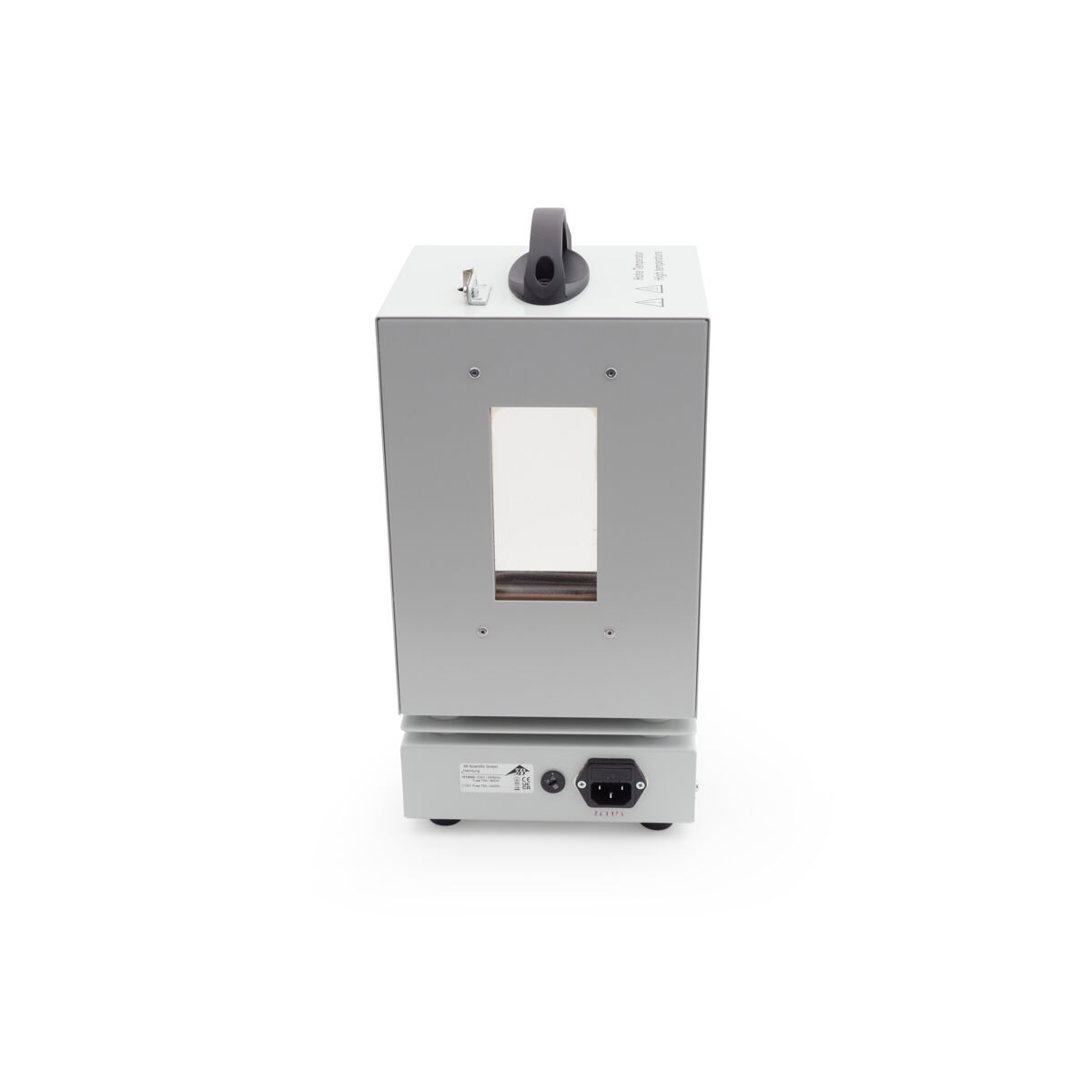

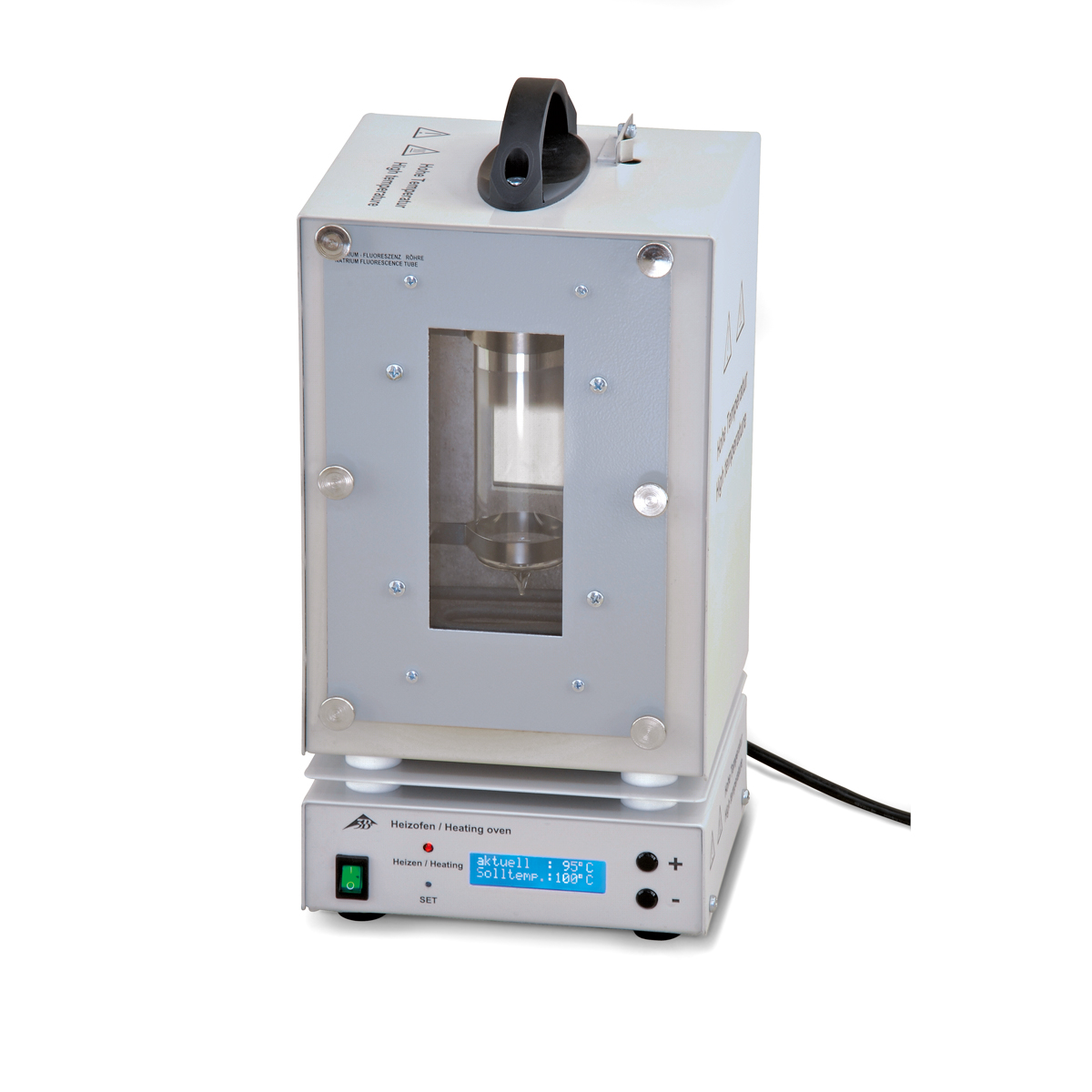

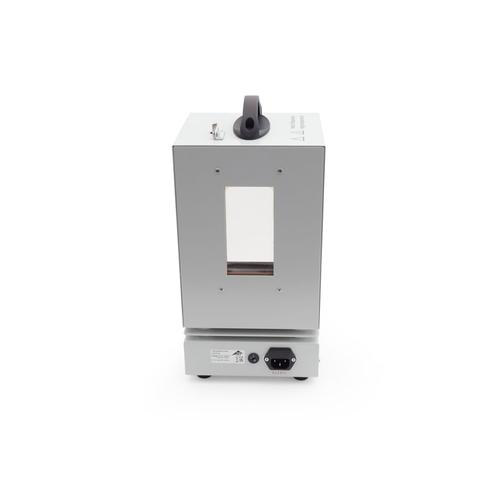

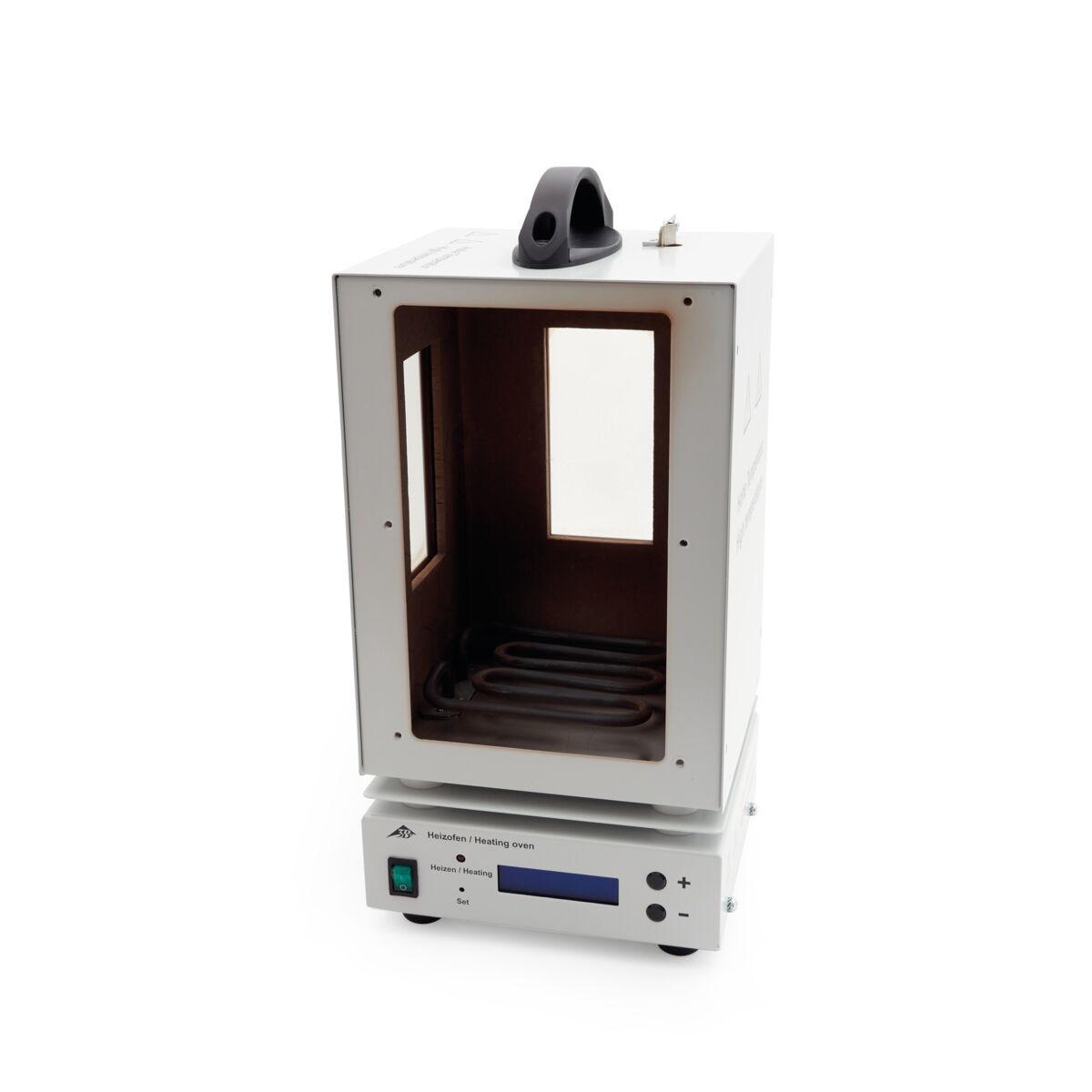

The heating chamber can be employed to conduct the Franck-Hertz experiment or the sodium resonance fluorescence experiment in safety. It consists of a powder-coated sheet steel casing with two viewing windows. The front plate is attached via six knurled screws. The chamber is heated via a tubular heating element in the chamber floor. Temperature measurement and regulation is carried via an integrated micro-controller and a PT 100 thermocouple. A digital temperature display allows you to read off the temperature set-point and the actual temperature value. The “SET” button can be used to toggle the display between ° Celsius and ° Fahrenheit. The “+/-” keys allow you to set the set-point for the temperature in steps of 1 K. There is an opening at the top with a spring clip for holding a thermometer and a thermally insulated carrying handle. The heating chamber can accommodate both the Franck-Hertz tube with Hg filling and the sodium fluorescence tube on furnace wall.

Specifications: ..
Dimensions of front opening: 230 mm x 160 mm approx.
Heating power: 400 W
Maximum temperature: 250°C
Temperature constancy: ±1°C approx.
Dimensions: 335 mm x 180 mm x 165 mm approx.
Weight: 5.6 kg approx.

Note: ..
Without support plate and tube; must be purchased separately.
Kódszám: 1006796 [U8482590-115]
Súly 3.55 kg
Márka 3B Scientific
