Wireless Force and Acceleration Sensor
Wireless Force and Acceleration Sensor
| Product Information: .. |

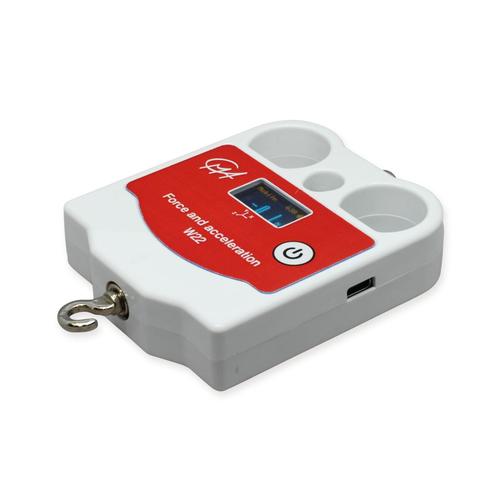

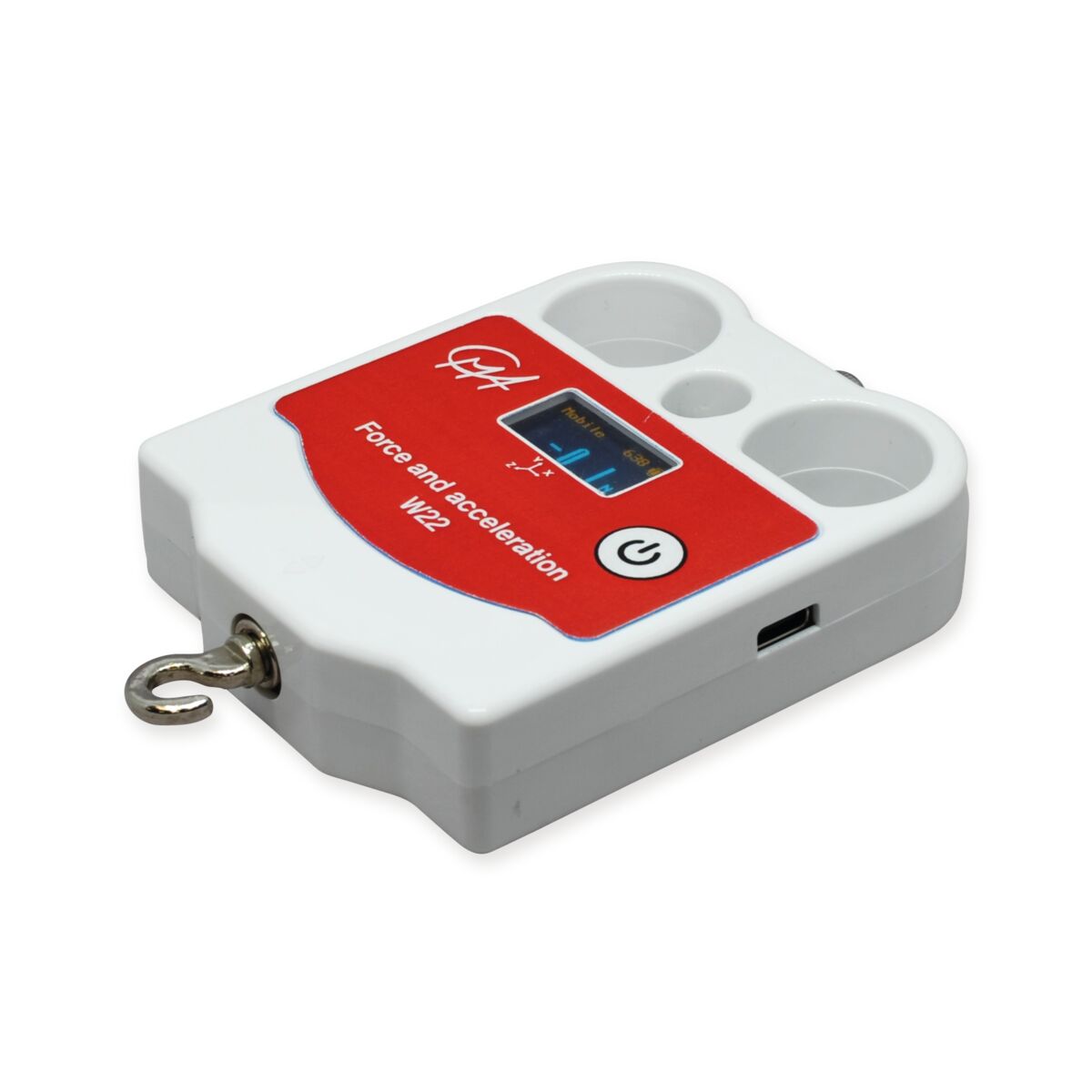

The sensor measures forces in the range between -80 N and 80 N and accelerations along 3 axes x, y, and z, in the range between -16 g .. 16 g.
The sensor is equipped with an OLED color display which shows some sensor information and the measured by the sensor values. This makes the sensor suitable to use as an independent measuring instrument.
This sensor can be used wirelessly via Bluetooth or wired via USB with the Coach 7 or Coach 7 Lite software/apps on computers (Windows and Mac), Chromebooks, and mobile devices (Android and iOS).
| Specifications: .. |
| Model number: | W22 |
| Measuring ranges: | Force: – 80 N .. 80 N (0.012 N ) |
| Acceleration: –16 g .. 16 g in three directions x, y and z (0.0004 g) | |
| Accuracy: | ± 0.5% of full scale at 25°C |
| Maximum force: | 100 N (For forces above this value the sensor can be damaged permanently) |
| Temperature range: | between 0°C and 40°C |
| Max. sampling rate: | 100 Hz (1000 Hz with USB cable) |
| OLED display: | 0.96” (128 x 64 px) |
| Battery lifetime: | 12h when full (rechargeable) |
| Connection: | Bluetooth 5, Low Energy (Mac, Android, iOS) Bluetooth 2.1, Classic (Windows) or USB-C 2.0 |
| Note: .. |
How does our digital measurement system work and what is required?
Item No.: 1027031
| Weight | 0.22 kg |
| Dimensions | 0 x 0 x 0 cm |
| Brand | CMA - Centrum voor Microcomputer |
