Experiment:
Water Anomaly, Basic Equipment

Experiment: Water Anomaly, Basic Equipment, 8000578 [UE2010301], Thermal Expansion
Experiment: Water Anomaly, Basic Equipment, 8000578 [UE2010301], Thermal Expansion
Price Request

Device for Demonstrating the Anomaly of Water

Device for Demonstrating the Anomaly of Water

Plastic Trough

Plastic Trough

Magnetic stirrer,
cost-effective

Magnetic stirrer,
cost-effective

Digital Thermometer, 1 Channel

Digital Thermometer, 1 Channel

Thematic focus: ..
•  Measure the thermal expansion of water over a temperature range between 0°C and 15°C.
•  Demonstrate the thermal anomaly.
•  Determine the temperature when the density is at a maximum.

Experiment description: ..
When temperature is raised from 0°C to about 4°C the volume of a mass of water initially becomes smaller and only begins to expand thermally at higher temperatures. The density of water is therefore at its greatest at around 4°C.

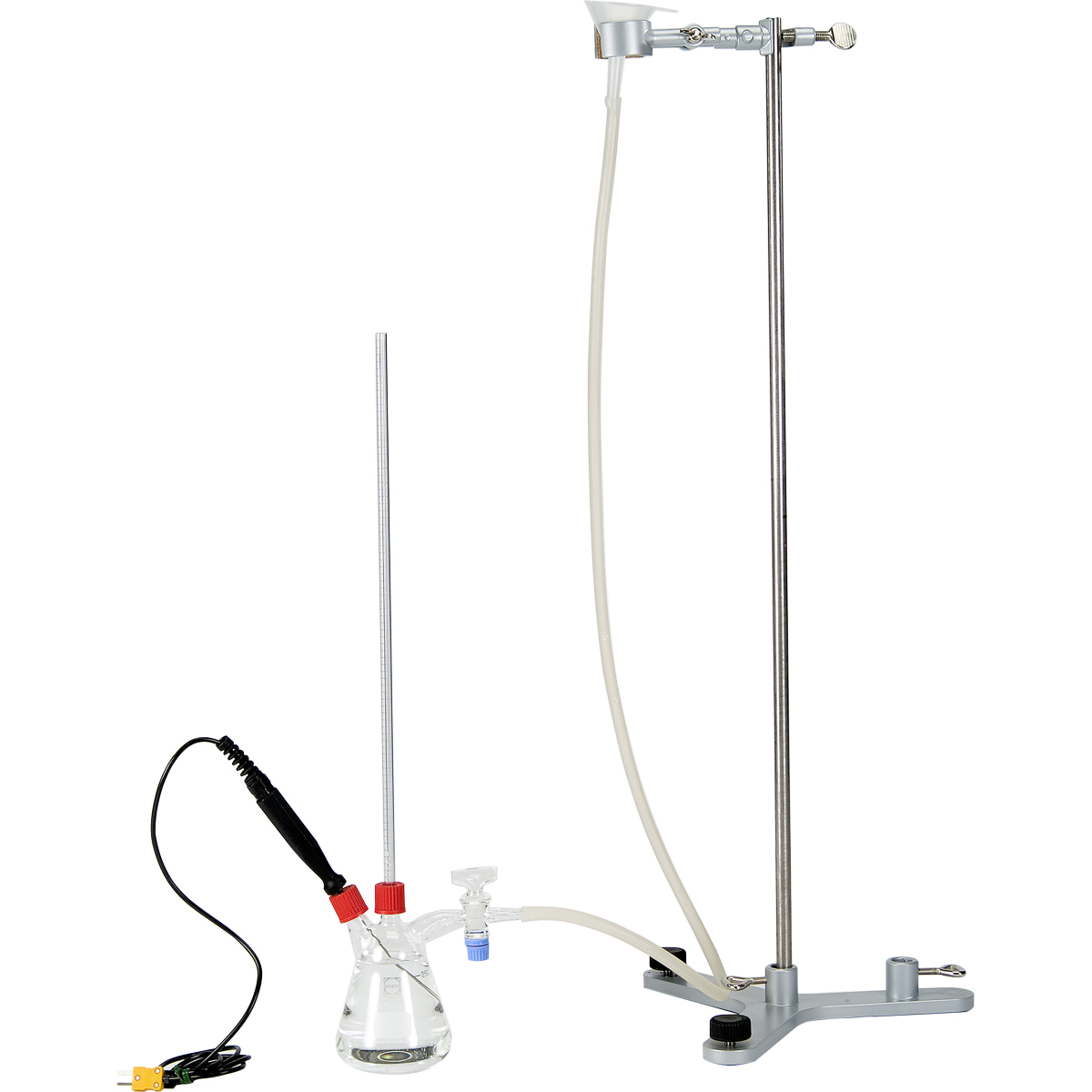

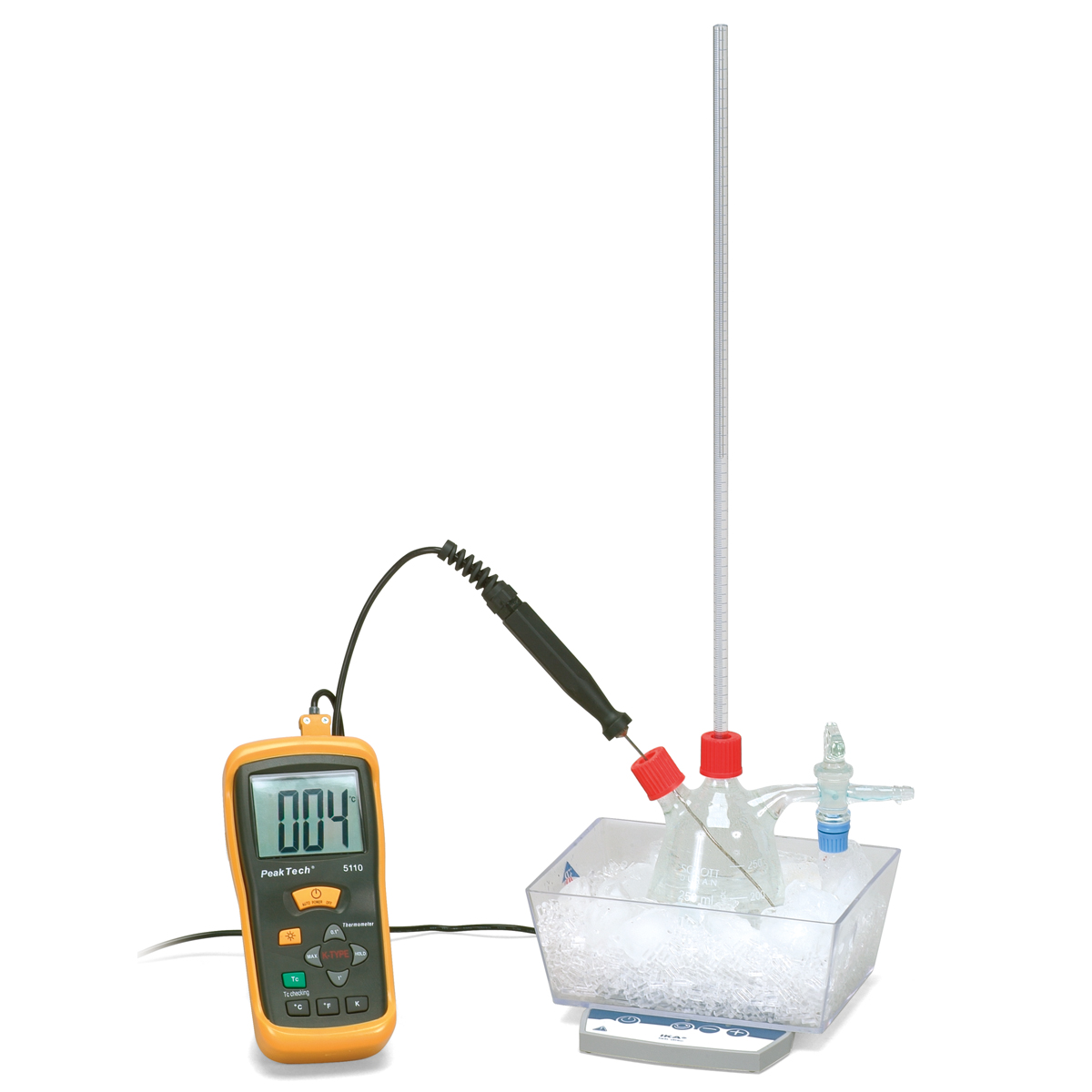

The experiment involves measuring the expansion of water in a vessel with a riser tube. The height h to which water rises up the tube is measured as a function of the water temperature ϑ.
Item No.: 8000578 [UE2010301]
Brand 3B Scientific

Documentation

PDF Experiment instructions - Experiment: Water Anomaly, Basic Equipment - UE2010301 [8000578]
PDF Product Manual - Experiment: Water Anomaly, Basic Equipment - UE2010301 [8000578]
PDF UE2010301_Experiment instruction
  • Secure online payment with SSL
  • Expert advice
  • Easy returns & exchanges
  • International shipping available
Service hotline: +49-40-73966-0
ADD TO QUOTE

Delivery scope

Device for Demonstrating the Anomaly of Water, 1024284, Density and Volume

Device for Demonstrating the Anomaly of Water

1024284
Plastic Trough, 4000036 [T52006], Density and Volume

Plastic Trough

4000036 [T52006]
Magnetic stirrer, cost-effective, 1022866 [W16142], Magnetic Stirrers

Magnetic stirrer,
cost-effective

1022866 [W16142]
Digital Thermometer, 1 Channel, 1002793 [U11817], Thermometers

Digital Thermometer, 1 Channel

1002793 [U11817]
