Function Generator FG 100 – 1 mHz to 100 kHz | 1009957 | U8533600-230 | Function Generators

Description
Experiments

Application:_..

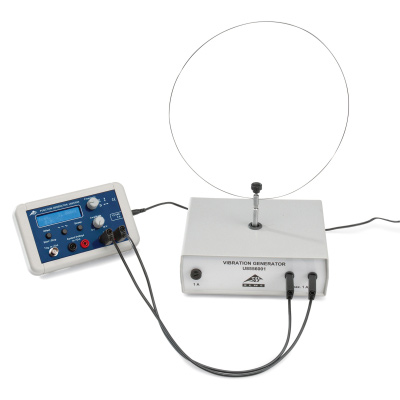

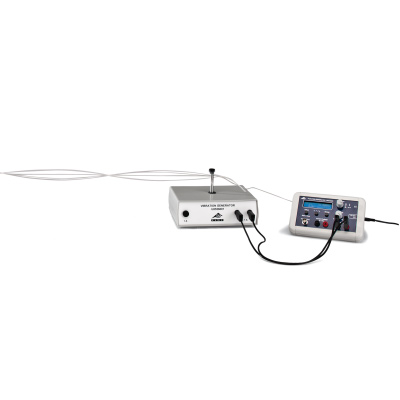

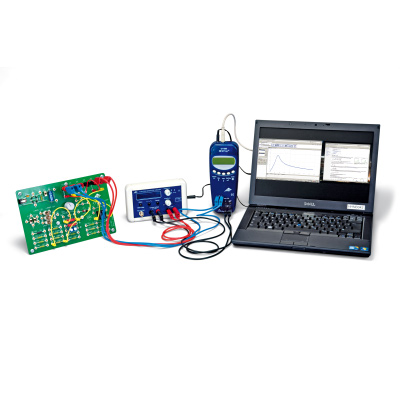

The function generator FG100 features internal and external sweep functions and includes a power amplifier for use in experiments for students and university lab courses. For example, a wide variety of experiments involving oscillations, alternating current, and induction can be conducted using the generator.

Product Information:_..

The equipment outputs sinusoidal, triangular, and square-wave voltages with adjustable amplitude and frequency. The built-in power amplifier allows currents of up to 1 A.
The generator provides 3 operating modes within the frequency sweep function: external, internal continuous, and internal single. In the internal sweep modes, a trigger pulse is generated for each sweep, and a voltage proportional to the frequency is provided simultaneously. The last setting in sweep mode is saved in the function generator.

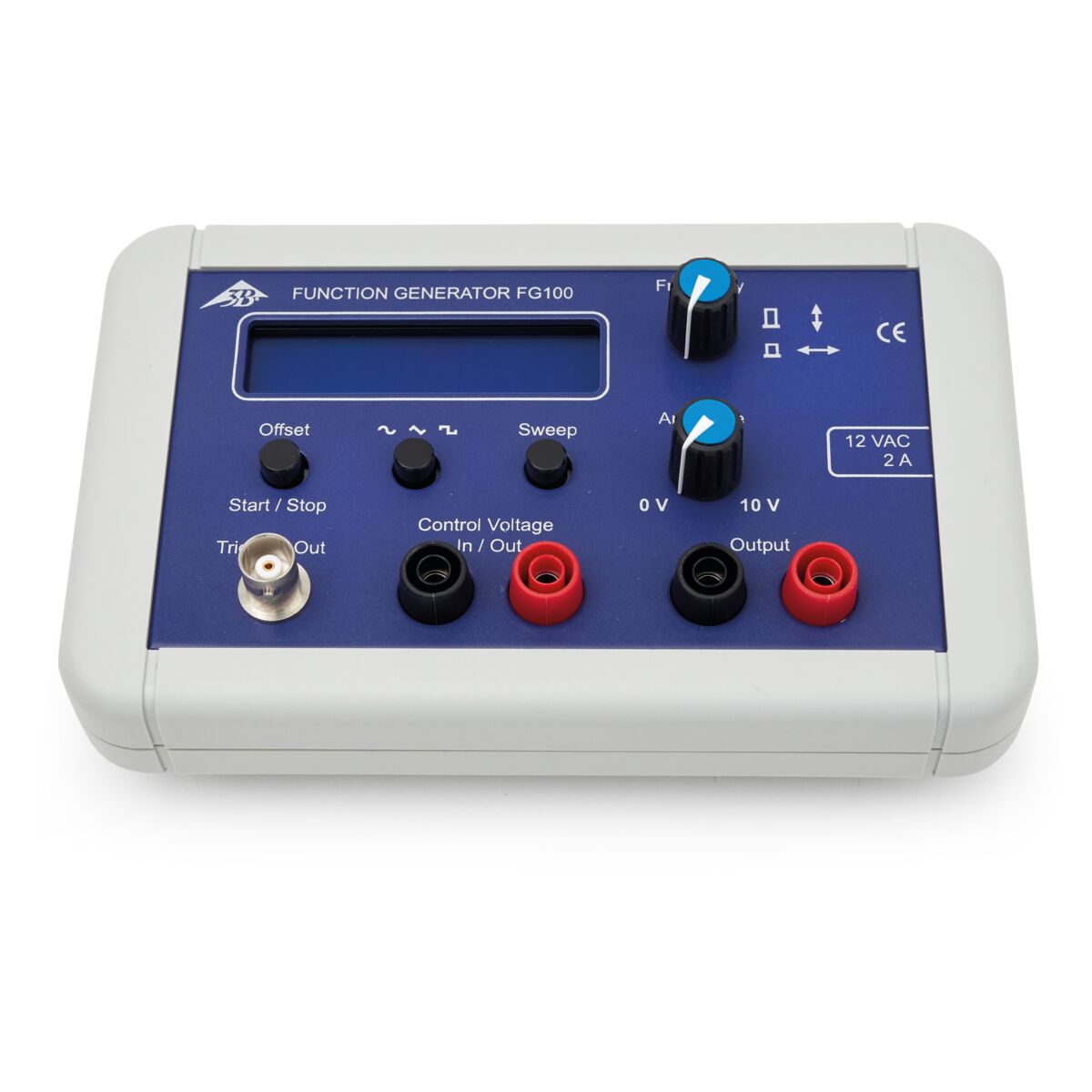

The function generator features a backlit digital display for frequency, waveform, offset, and other parameters. The output is short-circuit protected and also protected against induced voltages and spark discharges.

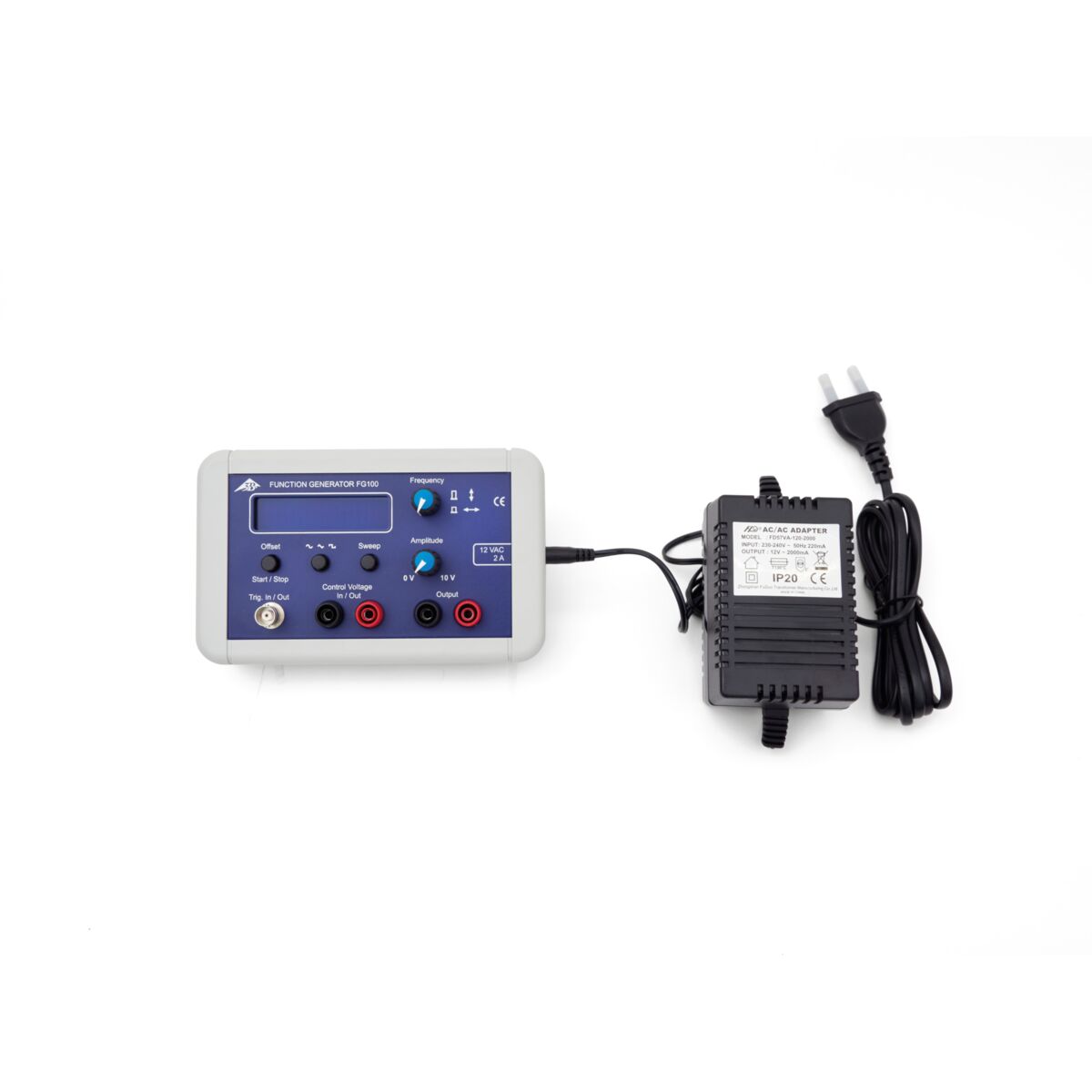

The device is equipped with flip-down feet. It is powered by a 12 V AC plug-in power supply.

Product Safety Information:_..

•		The function generator FG100 conforms to DIN EN 61010: Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1.
•		Safety isolating transformer conforming to EN 61558-2-6.
•		Protective separation between the supply mains and output circuits.

Specifications:_..

Signals:	Frequency range:	1 mHz to 100 kHz
	Total harmonic distortion THD):	< 1%_.
	Waveforms:	sine, square, triangle
	Offset:	0 to ±5 V, adjustable in 0.1 V steps
Output:	Output amplitude:	0 to 10 V, continuously adjustable
	Output power:	10 W, permanent
	Output current:	1 A, 2.0 A max.
Sweep:	Sweep modes:	external, internal continuous,internal single
	Frequency range:	1 Hz to 100 kHz
	Stop/start frequency ratio:	1000 : 1 max., e.g. 2 Hz to 2 kHz max.
	Sweep time range:	0.04 s to 1000 s
	External sweep:	start via trigger pulse or application of 0 to 5 V control voltage; modulation frequency: 200 Hz max.
	Internal continuous sweep / Internal single sweep:	start and stop via Start/Stop button; output of one trigger pulse per cycle and a proportional voltage.
General data:	Power supply:	plug-in power supply, 12 V AC, 2 A
	Dimensions:	170 mm x 105 mm x 40 mm
	Weight:	0.5 kg
