X-Ray Energy Detector

Description
Experiments

Application Area:_..

•	X-ray energy spectroscopy
•	Compton effect
•	X-ray fluorescence spectroscopy
•	Absorption experiments
•	Bragg's reflection
•	Duane-Hunt's displacement law
•	Moseley's law

Product Information:_..

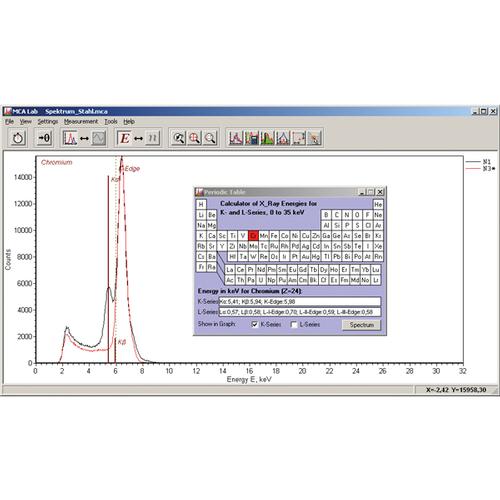

X-ray detector for recording energy spectra of X-rays or γ radiation in the energy range of approx. 2 keV to 60 keV. It mainly consists of a Si-PIN photodiode which is integrated in a metal housing together with a charge sensitive preamplifier, a main amplifier with pulse shaping and a digital signal processing circuit. The detector holder is particularly designed for installation on the swiveling arm of the X-ray apparatus (U192001 and U192001-US). The power supply is ensured via the USB port of a PC. Including CD with measuring and evaluation software for PC.

Specifications:_..

Energy range:	2 keV up to 60 keV approx.
Energy resolution (FWHM):	0.55 keV @ E_FeKα = 6.40 keV
Entrance window:	Plastics (absorption equivalent to Graphite with d = 40 µm)
Detector:	Si-PIN photo diode
Active Area:	0.8 mm dia.
Thickness:	200 µm approx.
Dead time per pulse:	200 µs approx.
Connection:	USB
Cable length:	1.75 m
Dimensions:	80 mm x 22 mm dia.
Mass:	150 g
