Student Kit – Acoustics

Student Kit – Acoustics, 1000816 [U8440012], Student Kits
Student Kit – Acoustics, 1000816 [U8440012], Student Kits
In Stock
In stock
Product Information: ..
The acoustics kit allows students to carry out numerous experiments on acoustics independently. A wide variety of sound sources are studied to begin with and the concepts of noise, bangs and tones as well as pitch and loudness are investigated. Waves along a rope are used to illustrate harmonic vibrations and overtones. There is also some extensive study of various different musical instruments. Different high-pitched tones are generated by means of a monochord and the ensuing intervals are calculated experimentally. These studies are expanded to other instruments and can easily lead over to a study of musical notes.
In the scope of delivery: comprehensive experiment descriptions (student / instructor version).

Includes 26 Experiments on the Subject of Acoustics: ..
•   Noise, bangs, pure tones
•   Vibrating air columns
•   Whistles and pipes
•   Vibrating bars, plates and bells
•   Infra-sound
•   Ultra-sound
•   Tuning fork with plotter pen
•   Travelling waves along a rope
•   Velocity of propagation of sound
•   Moving sources of sound (Doppler effect)
•   Plate vibrations (Chladni figures)
•   Vibrations of a bell
•   Standing waves on a rope, overtones
•   Sounds of musical instruments
•   Timbre of the human voice
•   Measurement of wavelength (Kundt figures)
•   Resonance
•   Helmholtz ball resonators
•   Sound analysis
•   Loudness
•   Pitch of string instruments
•   Pitch of wind instruments
•   Reed pipe
•   C-major scale and its intervals
•   Triads, harmonies
•   Semitones, major and minor

Specifications: ..
Dimensions: 530 mm x 375 mm x 155 mm approx.
Weight: 4.5 kg approx.

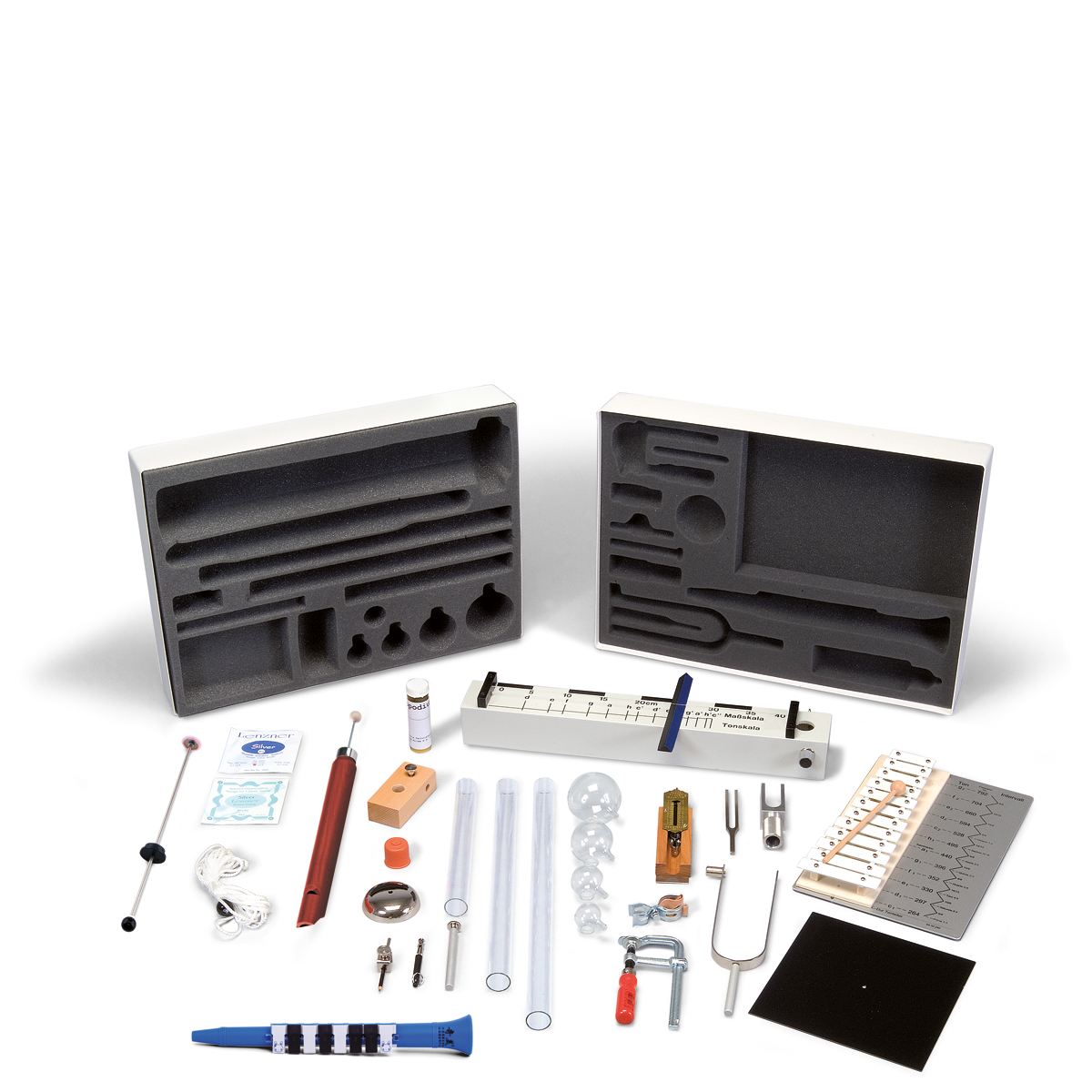

Contents: ..
1   Monochord, with ruler and musical scale
1   Steel string
1   Perlon string
1   Spring balance on support
1   Reed pipe with 8 valves

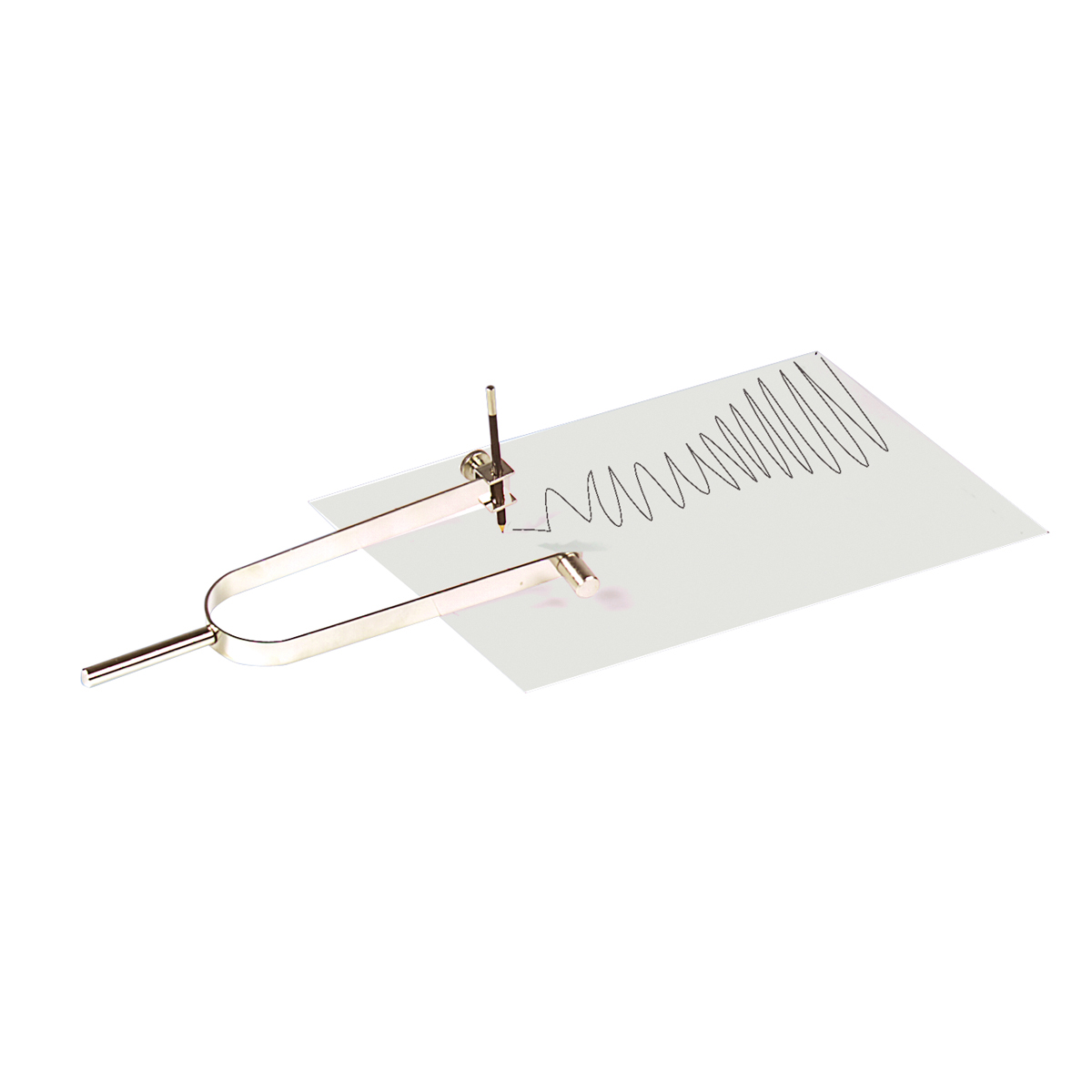

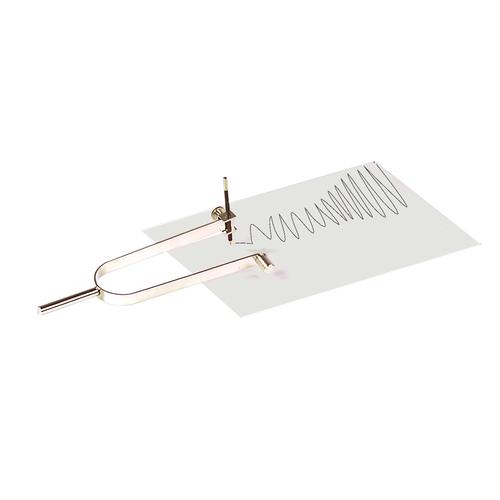

1   Tuning fork with plotter pen, 21 Hz
1   Tuning fork, 440 Hz
1   Light-metal tuning fork, 1700 Hz
1   Pipe
1   Variable-length closed air column
1   Tuned open air column
1   Chladni disc with handle
1   Galton whistle
1   Kundt pipe with retaining clip
5 g Lycopodium powder in sprinkling cellar
1   Metallophone with beater
1   Rope for demonstrating waves
1   Helmholtz resonator, 70 mm dia.
1   Helmholtz resonator, 52 mm dia.
1   Helmholtz resonator, 40 mm dia.
1   Helmholtz resonator, 34 mm dia.
1   Screw clamp
1   Plastic block
1   Plunger
1   USB-stick with experiment descriptions


Item No.: 1000816 [U8440012]
Weight 5.2 kg
Dimensions 62 x 43.2 x 27.2 cm
Brand 3B Scientific

Documentation

PDF Product Manual - Student Kit – Acoustics - U8440012 [1000816] (EN)
