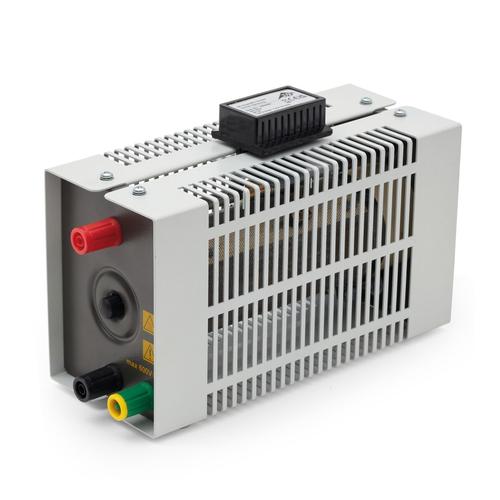

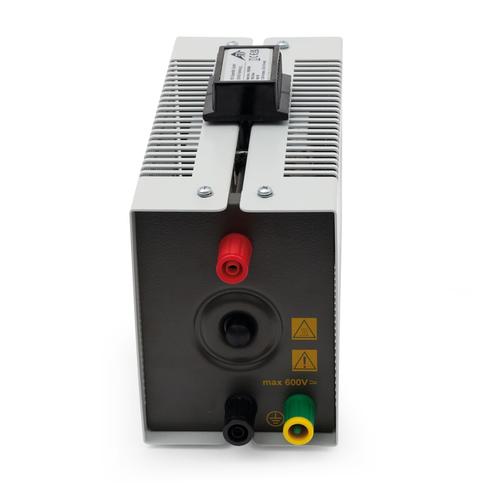

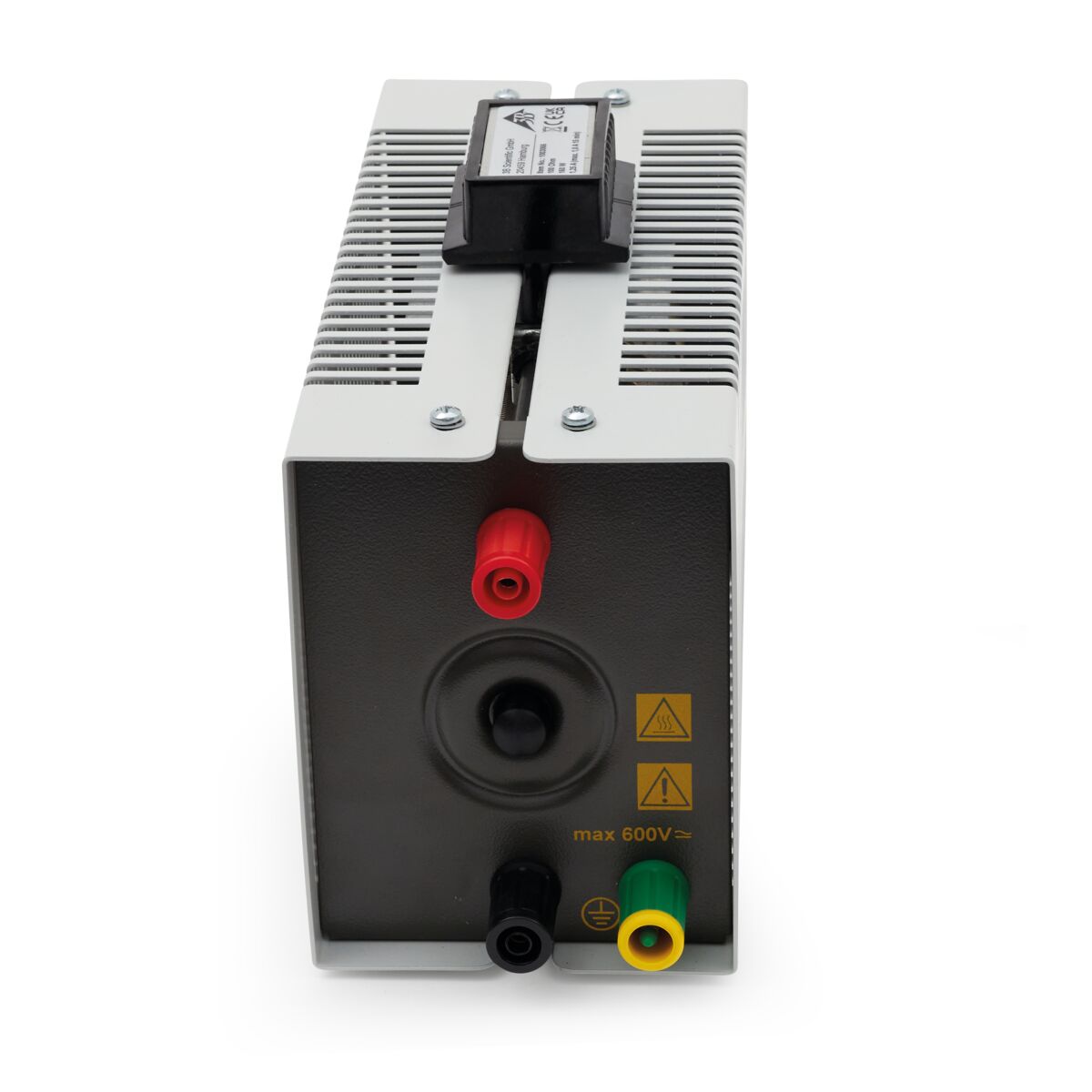

Sliding Rheostat, 3.3 Ohm, 160 W

Sliding Rheostat, 3.3 Ohm, 160 W, 1026321, Rheostats
Sliding Rheostat, 3.3 Ohm, 160 W, 1026321, Rheostats
In Stock
In stock
Product Information: ..
Sliding rheostat in touch-proof housing for experiments in extra-low and low voltage circuits. Suitable for use as a continuously adjustable series resistor to set the desired current, as a fixed resistor, or as a voltage divider. Equipped with an integrated grounding socket.

Specifications: ..
Resistance: 3.3 Ω
Resistance tolerance: 10% from nominal value
Max. permissible power: 160 W (continuous operation), 320 W (max. 15 min)
Max. permissible current: 7 A (continuous operation), 10 A (max. 15 min)
Max. permissible voltage: 600 V AC/DC
Connection: 4 mm safety sockets
Dimensions: 250 mm x 105 mm x 170 mm approx.
Weight: up to 3.25 kg

Item No.: 1026321
Weight 3 kg
