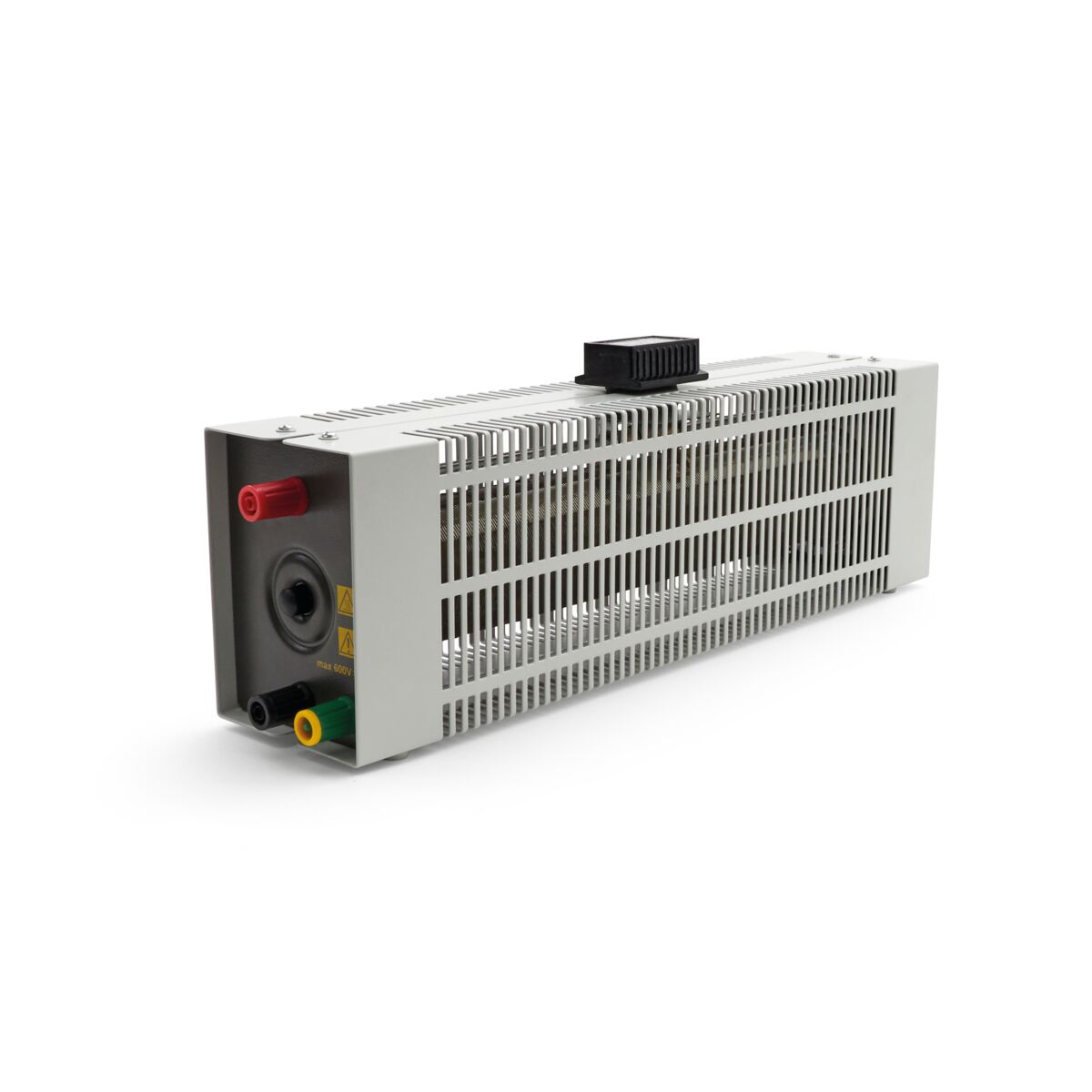

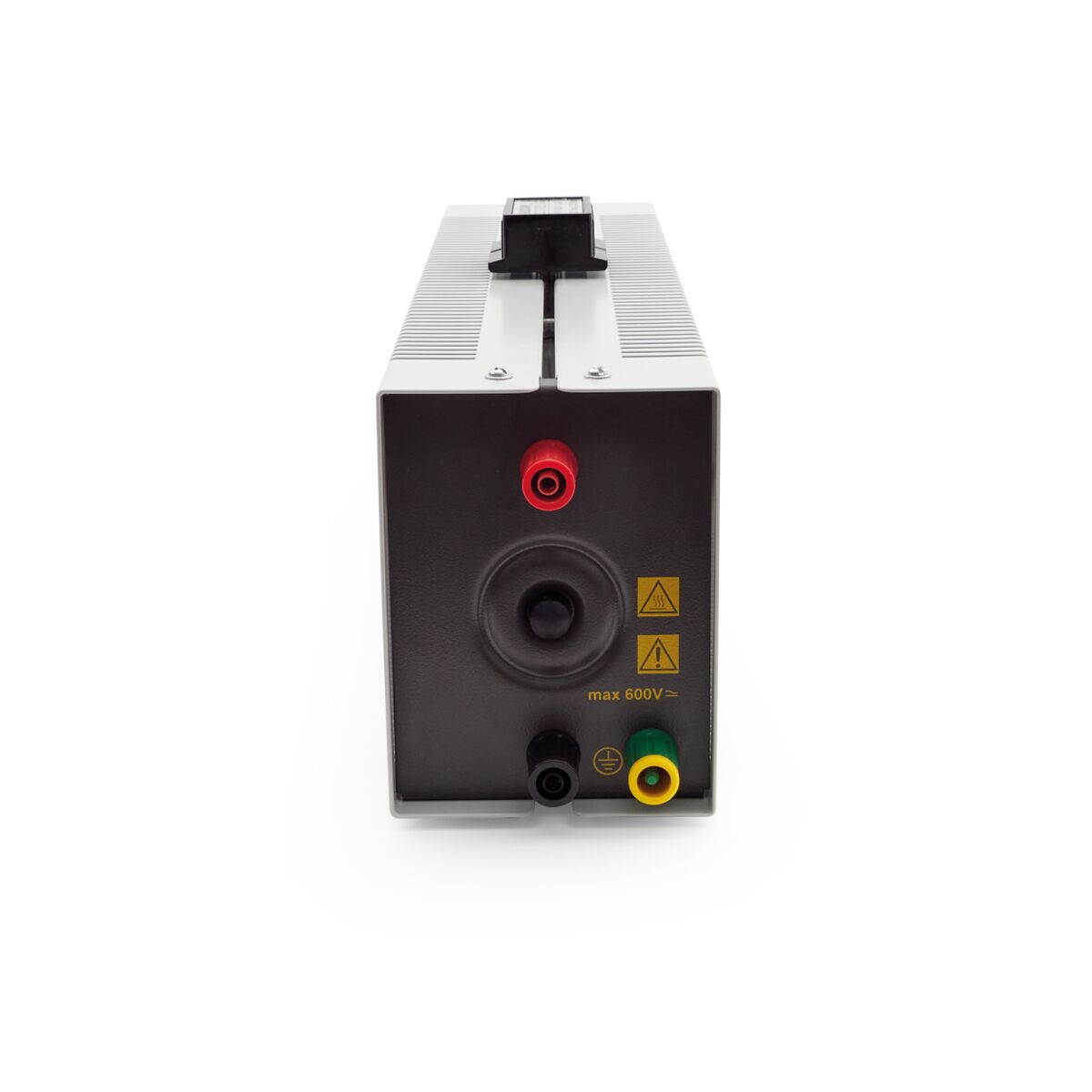

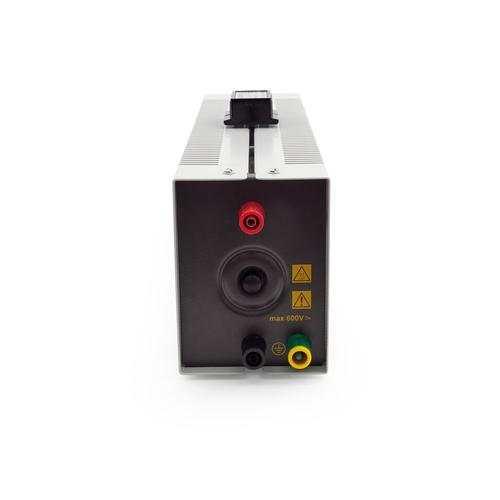

Sliding Rheostat, 10 Ohm, 320 W

Sliding Rheostat, 10 Ohm, 320 W, 1003064 [U17352], Rheostats
Sliding Rheostat, 10 Ohm, 320 W, 1003064 [U17352], Rheostats
In Stock
In stock
Product Information: ..
Used during experiments in extra-low and low voltage circuits, these heavy-duty variable resistors have shockproof housings and built-in ground sockets. Use them as a continuously variable series resistor, for setting power levels, as fixed resistor or as voltage divider.

Specifications: ..
Resistance: 10 Ω
Resistance tolerance: 10% from nominal value
Max. permissible power: 320 W (continuous operation), 640 W (max. 15 min)
Max. permissible current: 5.7 A (continuous operation), 8 A (max. 15 min)
Max. permissible voltage: 600 V AC/DC
Connection: 4 mm safety sockets
Dimensions: 446 mm x 93 mm x 150 mm approx.
Weight: up to 3.25 kg

Item No.: 1003064 [U17352]
Weight 3.054 kg

Documentation

PDF Safety and Warning Information
