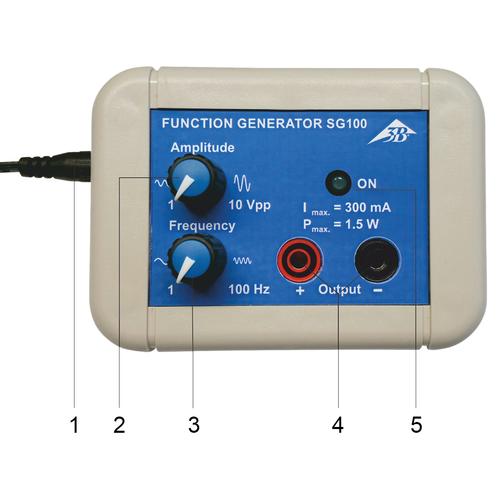

Sine Wave Generator –
SG 100, 1 Hz - 100 Hz
(115 V, 50/60 Hz)
Sine Wave Generator –
SG 100, 1 Hz - 100 Hz
(115 V, 50/60 Hz)
| Product Information: .. |
The equipment outputs a sine-wave voltage of adjustable amplitude and frequency.
The LED "ON" indicates that the device is ready for operation.
The output is resistant against short circuits, and protected from induced voltages and spark discharges.
Power is supplied via a 12 V AC plug-in power supply.
The sine wave generator SG100 with order number 1021745 is intended for a mains voltage of 115 V (±10%), whereas the one numbered 1021744 is for 230 V (±10%).
| Specifications: .. |
| Signals:.. | |
| Frequency range: | 1 Hz to 100 Hz |
| Distortion factor: | < 5% |
| Signal waveform: .. | Sine |
| Output:.. | |
| Output amplitude: | 1 Vpp to 10 Vpp, continuously adjustable |
| Output power: | 1.5 W permanent |
| Output current:.. | 300 mA max. |
| General data:.. | |
| Power supply: | Plug-in power supply, 12 V AC, 0.5 A |
| Transformer: | Safety transformer according to DIN EN 61558-2-6 |
| Safety: | DIN EN 61010-1 |
| Dimensions: | 100 mm x 75 mm x 35 mm approx. |
| Weight: | 400 g approx. (including power supply) |
Item No.: 1021745
| Weight | 0.48 kg |
| Dimensions | 24.5 x 16 x 8 cm |
| Brand | 3B Scientific |
| Previous Item No. | 1017738 |
