Quincke’s Resonance Tube

Quincke’s Resonance Tube, 1018475 [U8557190], Sound
In Stock
In stock
Thematic focus: ..
•  Resonances in an oscillating column of air
•  Standing sound waves
•  Determination of wavelengths of sound waves in air
•  Determination of speed of sound in air

Product Information: ..

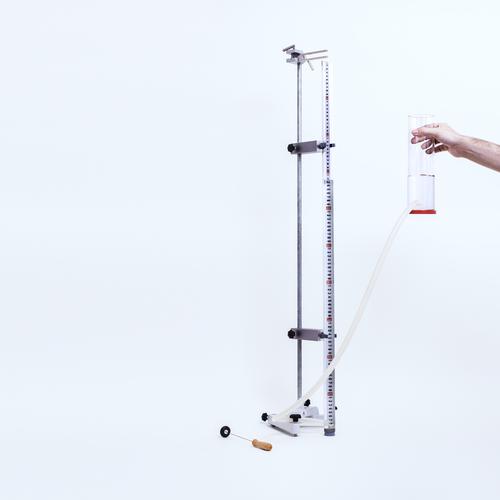

Quincke’s resonance tube is used for demonstrating interference effects in standing sound waves. The equipment set consists of a resonance tube with a millimetre scale which is partially filled with water and is connected to an expansion vessel with a tube. The column of air above the water is excited to oscillate by using a tuning fork (or optionally a loudspeaker). By raising the expansion tank, the level of water inside the tube can be raised as well, which therefore reduces the height of the air column. The sound wave emitted by a sound source above the one open end of the tube is superimposed on the wave reflected from the surface of the water which results in constructive or destructive interference. Audible resonances occur when the length of the oscillating column of air is an odd integer multiple of a quarter wavelength of the sound.

Specifications: ..
Resonance tube:
Height : 100 cm
Diameter : 3 cm
Scale: 98 cm
Divisions: 1 mm..
Expansion vessel:
Height : 24 cm
Diameter : 7 cm..
Complete Device:
Weight : 3.3 kg approx. (without accessories and stands)

Contents: ..
1 Resonance tube with scale
1 Expansion vessel
1 Silicone tube
2 Horizontal clamps
1 Standard tuning fork, a1 = 440 Hz
1 Beater


Item No.: 1018475 [U8557190]
Weight 1.5 kg
Brand 3B Scientific

Documentation

PDF Product Manual - Quincke’s Resonance Tube - U8557190 [1018475] (EN)
