Hofmann Electrolysis Apparatus, Type S

Hofmann Electrolysis Apparatus, Type S, 1003507 [U58010], Electrochemistry
Hofmann Electrolysis Apparatus, Type S, 1003507 [U58010], Electrochemistry
Product Information: ..

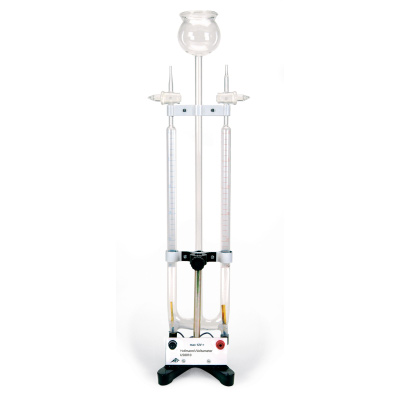

Hofmann’s voltameter is used for determining the chemical composition of water by volume. The apparatus consists of three vertical glass tubes connected to each other at the bottom. Taps at the top ends of the outside tubes are closed whilst the inner cylinder is open at the top to allow the addition of water via a reservoir. Platinum electrodes are fitted to the lower ends of the outside tubes and connected to a low voltage DC power supply unit. The proportion of hydrogen and oxygen produced by electrolysis from the water can be read from the raduations on the side tubes.
By opening the taps at the top of the tubes, gases can be collected for analysis. Carbon electrodes are also available for analysis of solutions where platinum is unsuitable.

Specifications: ..
Dimensions: 580 mm x 150 mm approx.
Stand base, A-shaped: 115 mm leg length
Operating voltage: 4 – 12 V DC

Item No.: 1003507 [U58010]
Weight 0.789 kg

Documentation

PDF Product Manual - Hofmann Electrolysis Apparatus, Type S - U58010 [1003507]
PDF Product Manual - Hofmann Electrolysis Apparatus, Type S - U58010 [1003507] (EN)
