Digital Stroboscope (230 V, 50/60 Hz)
![Digital Stroboscope (230 V, 50/60 Hz), 1003331 [U40160-230], Rotational Motion Accessory](/imagelibrary/U40160-230/U40160-230_01_Digital-Stroboscope-230-V-5060-Hz.jpg)
![Digital Stroboscope (230 V, 50/60 Hz), 1003331 [U40160-230], Rotational Motion Accessory](/thumblibrary/U40160-230/U40160-230_01_1200_1200_Digital-Stroboscope-230-V-5060-Hz.jpg)
Digital Stroboscope (230 V, 50/60 Hz)
| Product Information: .. |

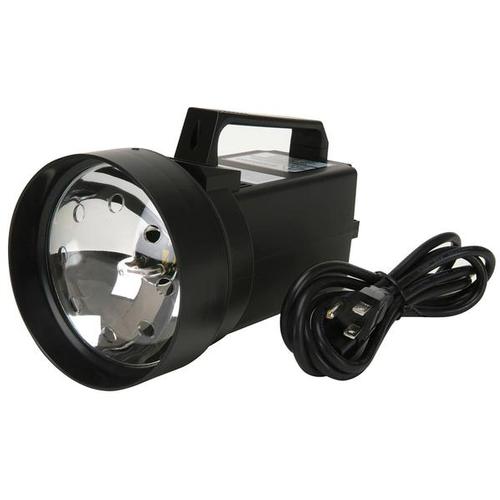

Xenon flash tube built into a robust plastic casing with handle and photo thread for mounting on a stand, continuous frequency adjustment in two ranges through coarse and fine setting using control knobs, 4-digit digital display permits readings of the desired flash sequence per minute.
| Specifications: .. |
| Meas. ranges: | 100rpm – 1000 rpm (1.5 Hz – 18 Hz approx.) |
| 1000 rpm – 10000 rpm (18 Hz – 165 Hz approx.) ... | |
| Accuracy: | ± (0.05% + 1 digit) |
| Display: | 4-digit LED |
| Resolution: | 0.1 rpm (< 1000 rpm ) |
| 1 rpm (1000 rpm – 9999 rpm ) | |
| 10 rpm (10000 rpm ) ... | |
| Flash duration: | 60 μs – 100 μs |
| Flash energy: | 4 Ws |
| Flash angle: | 80° |
| Dimensions: | 210 mm x 210 mm x 120 mm approx. |
| Weight: | 1 kg approx. |
Item No.: 1003331 [U40160-230]
| Weight | 1.105 kg |
| Dimensions | 21 x 21 x 12 cm |
