CLAB Data Logger
CLAB Data Logger
| Product Information: .. |
CLAB is equipped with its own processor and memory, enabling measurements at high sampling rates up to 100 000 Hz with accurate independent timing. It has FLASH memory to allow easy upgrade of the internal system software and to store measured data.
For connecting sensors CLAB provides three BT sensor inputs that support CMA sensors. 3B Scientific offers a wide range of these sensors that can be connected to these inputs. CLAB also has a built-in 3-axis accelerometer.
| Specifications: .. |
| Processors: | PIC32MZ (512 kB SRAM) |
| Memory: | 2 MB Flash |
| Power: |
Rechargeable battery Li-ion 3.7 V, 1200 mAh USB Power Adapter (100-240 V AC, DC 5V/1A) |
| Status Information: |
Two color LEDs (left Power and right Measurement status) One speaker |
| ADC Resolution: | 12 bits |
| Sampling Frequency: |
Max 100 000 Hz, via one channel Max 60 000 Hz, via two channels simultaneously Max 40 000 Hz, via three channels simultaneously |

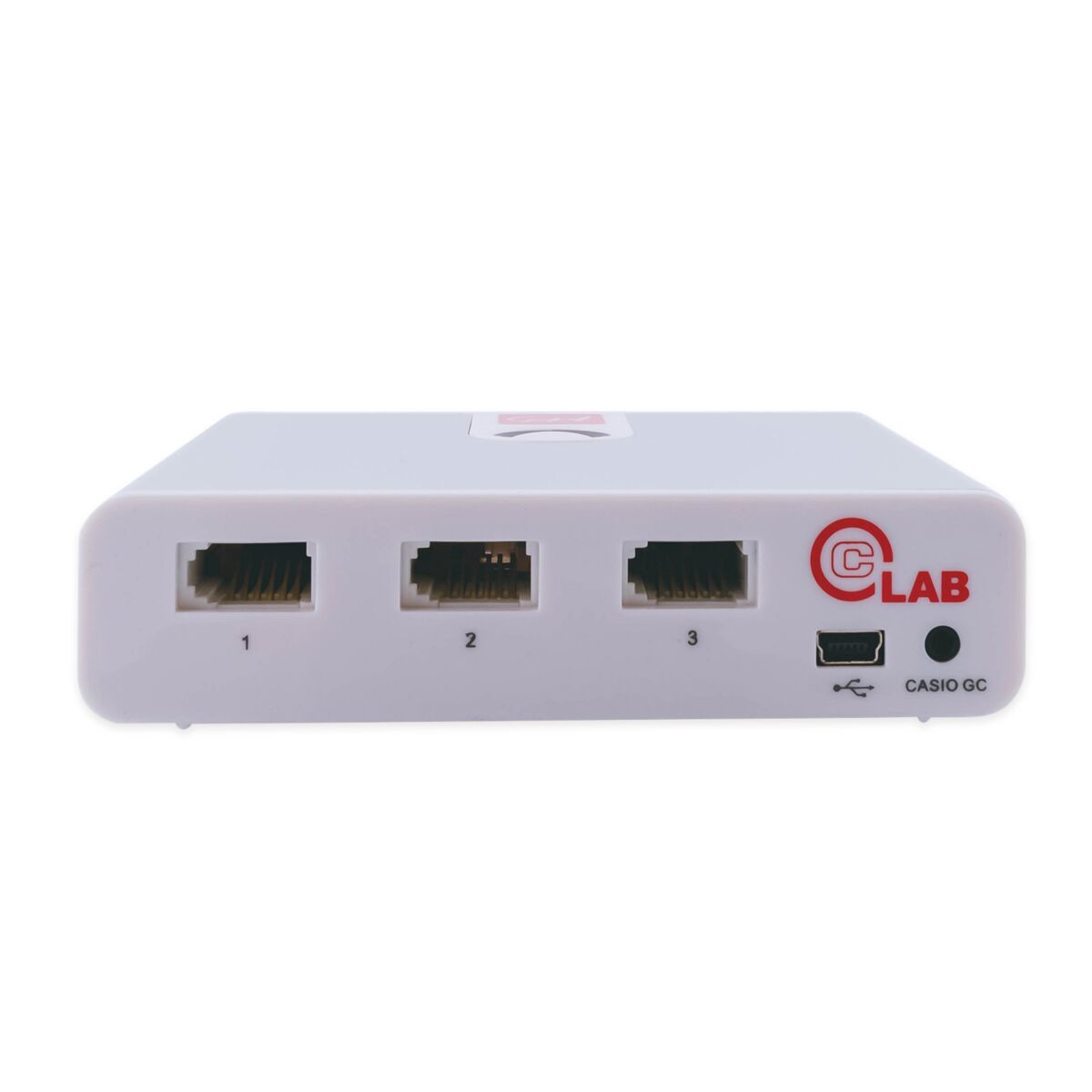

| Sensor Inputs: | Three sensor inputs, analog BT inputs |
| Built-In-Sensor: 2 |
3-axis Accelerometer (±20 m/s2 , ±40 m/s2 and ±80 m/s2 ), max. frequency 400 Hz |
| Calculator Connection: | 3-pin port for communication to CASIO Graphic Calculators |
| Computer Connection: | Mini USB port (also used for powering) |
| Calculator Software: | CASIO E-CON software |
| Computer Software: | Coach 7 Lite (free) or Coach 7 (license required) |

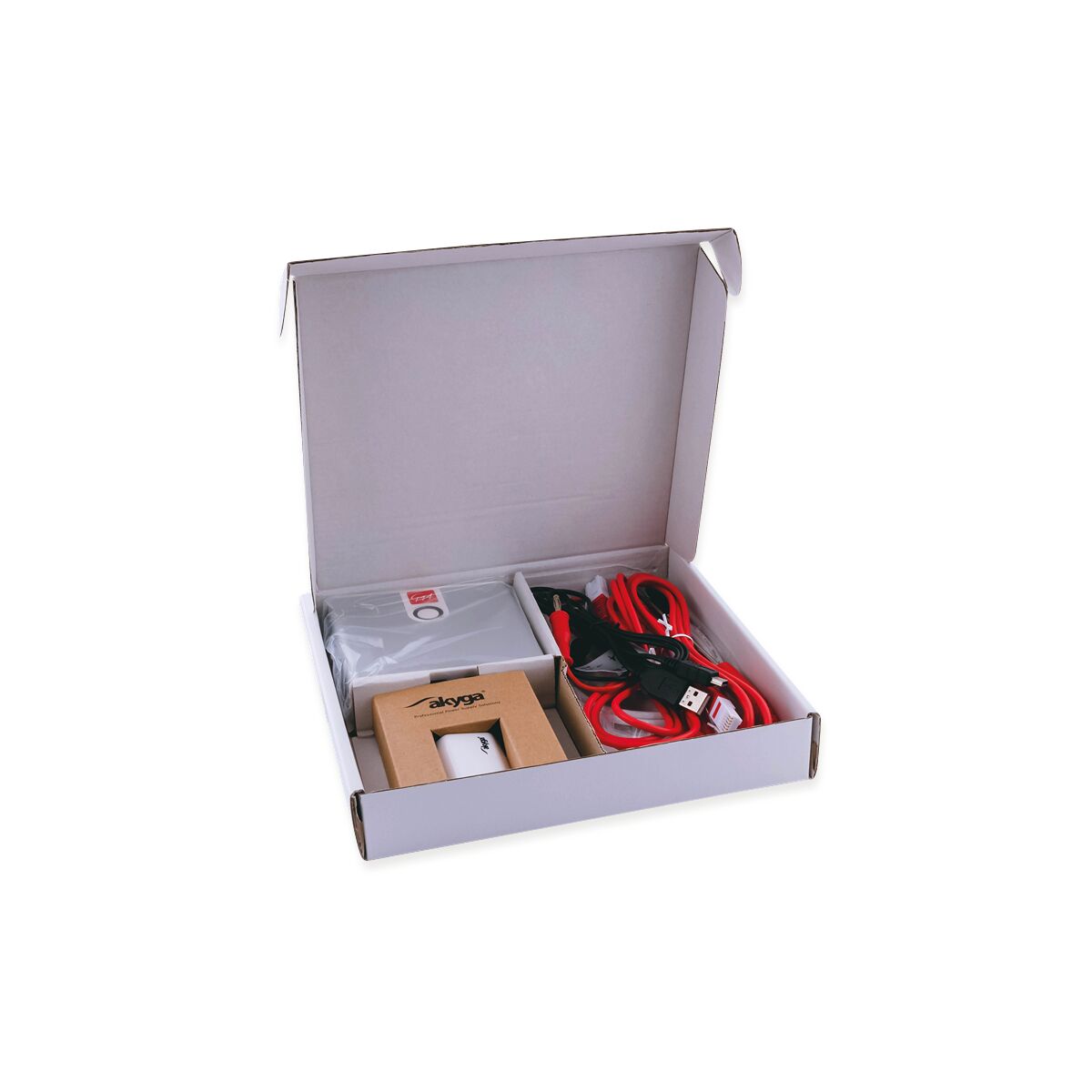

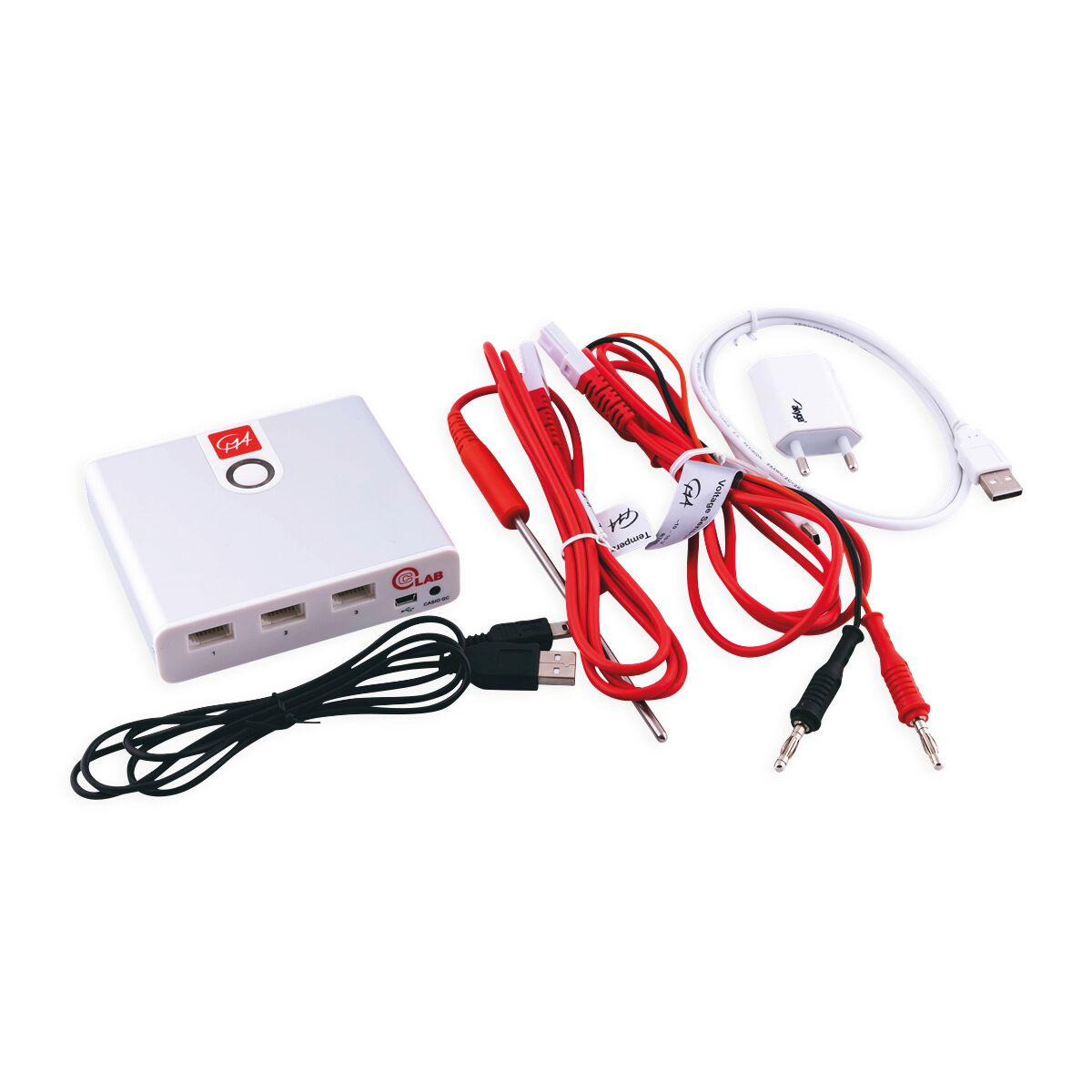

| Scope of Delivery: .. |
| 1 | CLAB data logger |
| 1 | USB Power Adapter |
| 1 | USB Cable |
| 1 | BT02i Voltage sensor (-10 V .. 10 V) |
| 1 | BT05i Temperature sensor (-40 °C .. 150 °C) |
| 1 | Connector Cable for CASIO Graphic Calculators |
| 3 | Quick Start Guides in English, Dutch and German |
| Features: .. |
| • | WiLab supports two types of data collection, wireless via Bluetooth® for tablets (iPad, Android), Chromebooks, smartphones and wired via USB for computers (Windows and Mac) and Android tablets (via OTG cable). Status LED displays the connection status. |
| • | Internal rechargeable battery accommodates multiple lab experiments and can be charged using provided power adapter or a USB cable. Battery life will depend on the sensors and features used but typically you can expect to use WiLab at least 4 hours (in case of 2 sensors connected) up to 8 hours without recharging it. To prolong battery life, automatic power down turns WiLab off after 15 minutes of inactivity. |
| • | WiLab is equipped with Bluetooth Low Energy, which supports Bluetooth 4 and Bluetooth 5 with compatible devices. The benefits of Bluetooth 5 are: range, speed, and bandwidth. |
| • | Coach 7 software automatically searches for WiLabs (Bluetooth devices) nearby. When one or more WiLabs are present the connection is automatically established to the strongest WiLab. |
| • | Sensor inputs support as well new as old CMA sensors. |
| • | WiLab can sample up to two sensors simultaneously. For measurement via one input maximum sampling frequency is 100 kHz, for measurement via two inputs simultaneously 50 kHz. |
| • | WiLab has two built-in actuators, a RGB LED located in the front and a buzzer located inside WiLab. RGB colors of the LED can be set to 16 intensity levels and the buzzer can generate 16 different tones. |
For connecting sensors WiLab has two analog (right-handed) BT sensor inputs.
These inputs support all analog CMA BT sensors including Motion Detector BT55i (but excluding digital Motion Detector 0664) and automatically identify these sensors.
Older CMA sensors (without auto detection) are supported via Sensor Library in the Coach software.
Software is required! To use WiLab, you need:
On computers (Windows Mac) – Coach 7 Lite program (free) or Coach 7 program (License fee) (starting from version 7.3)
On tablets and smartphones: Coach 7 Lite App (free) or Coach 7 App (License fee) starting from version 7.3
Item No.: 1021859
| Weight | 0.12 kg |
| Dimensions | 12 x 6 x 3.5 cm |
| Brand | CMA - Centrum voor Microcomputer |
