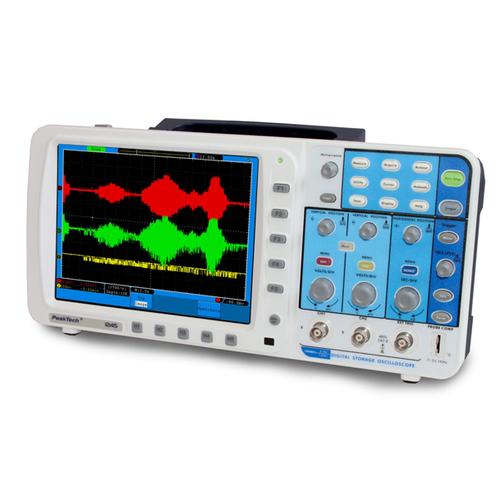

Dijital osiloskop
2x100 MHz

Dijital osiloskop 2x100 MHz, 1020911 [U11835], Osiloskoplar
Dijital osiloskop 2x100 MHz, 1020911 [U11835], Osiloskoplar
Included In Bundle
Ürünün kullanıldığı tüm deneylere genel bakış


Latest generation, dual-channel digital storage oscilloscope for many applications with the following features:
  • High-resolution colour display and back-lighting
  • Large internal data memory
  • VGA output for connecting external monitor
  • LAN connection for remote access via network
  • USB port for real-time data transmission or for reading internal memory
  • Autoset and autoscale functions for user-friendly operation
  • 20 automatic measuring modes plus FFT function
  • PASS/FAIL function
Includes two probes, two BNC cables, USB connecting cable, and software CD for Windows 2000/XP/VISTA/7/8/10.

Channels:                          Two
Band width:                       100 MHz
Sample rate:                      Dual CH 500 MS/s
                                             Single CH 1 GS/s
Operating modes:             CH1, CH2, XY
Input:
Input coupling:                  DC, AC, GND
Input impedance:              1 MΩ ±2% ll 10 pF ±5 pF
Input voltage:                     0 – 400 V DC or ACpp
Vertical:
Deflection coefficient:      2 mV/div. – 10 V/div.
Precision:                           ± 3%
A/D converter:                   8-bit resolution
Horizontal:
Time-base coefficient:     2 ns/div. – 100 s/div.
Sampling range:               0.5 S/s – 250 MS/s
Precision:                           100 ppm
Measuring mode:
Automatic measurement:  Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, overshoot, pre-shoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), freq, period, FFT
Maths functions:               +, -, *, /, FFT
Trigger:
Trigger type:                       Edge, Video, Pulse, Slope
Trigger modes:                  Auto, Normal, Single
Trigger detection:              Sample, peak detect, average
Interfaces:
Memory size:                     10000 measurements
Interface:                            USB 2.0, VGA, LAN
Power supply:                   100 ~ 240 V ACeff, 50/60 Hz
General data:
Display:                                TFT colour screen, 8 inches, 800 x 600 pixels, 65536 colours
Dimensions:                      340x155x70 mm³ approx.
Weight:                               1.8 kg approx.
Ürün No: 1020911 [U11835]
Ağırlık 2.9 kg
Marka PeakTech

Dokümantasyon

PDF Safety and Warning Information
