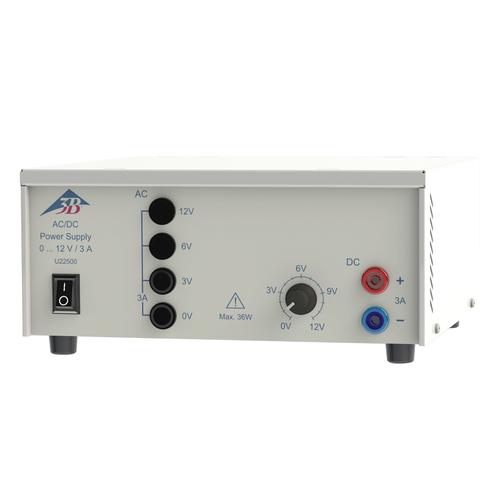

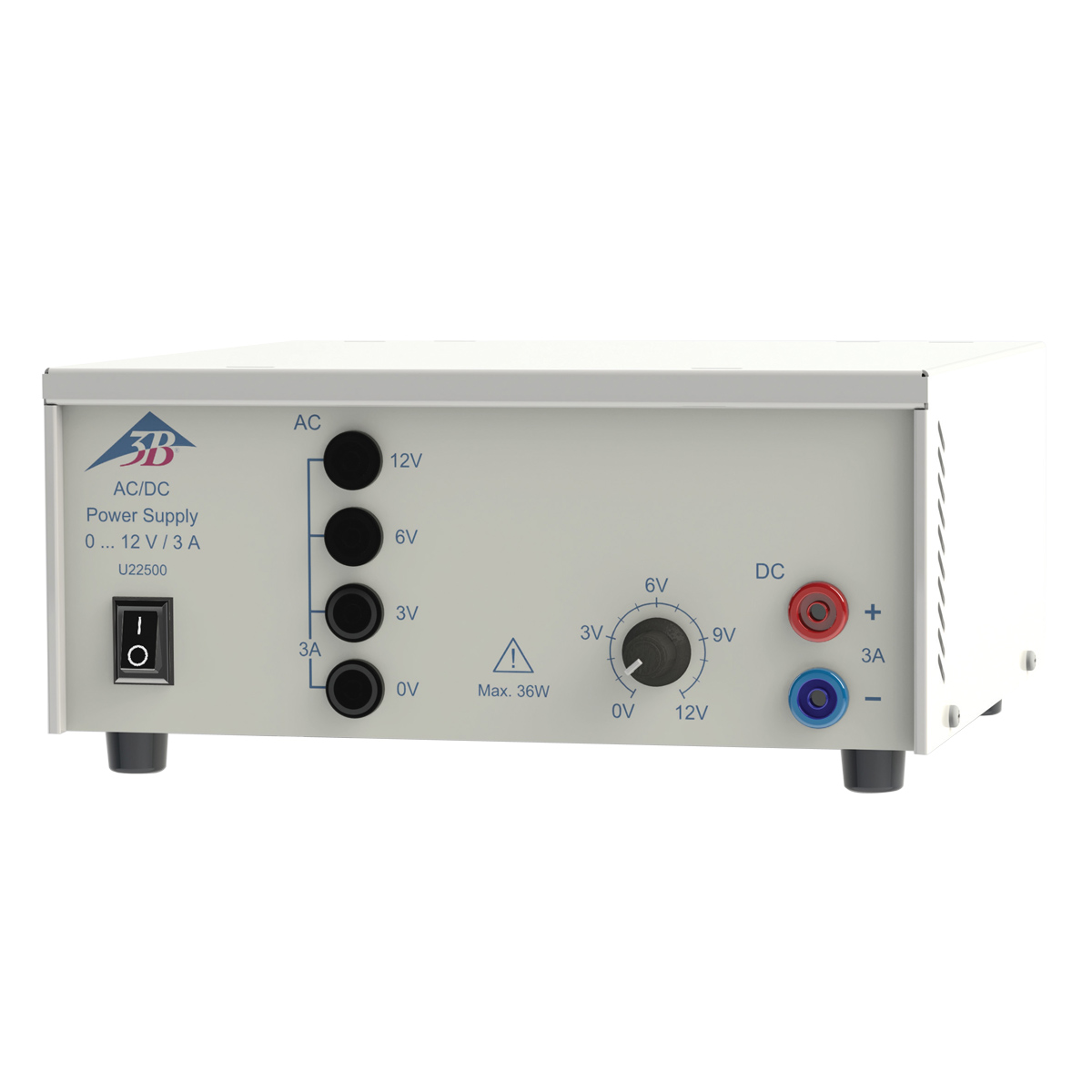

AC/DC Güç Kaynağı,
0 − 12 V, 3 A (115 V, 50/60 Hz)

Ürünün kullanıldığı tüm deneylere genel bakış

Sorum var

Açıklama
Aşağıdaki deneylerde kullanıldı

Product Information:_..

Extra low voltage power supply with continuously adjustable, stabilised and regulated DC output voltage. DC voltage output is short circuit proof and noise voltage proof. Three AC outputs galvanically isolated from the DC voltage outputs are overload protected via semiconductor fuses (multifuses).

•	Safety extra-low voltage (SELV) and functional extra-low voltage (FELV)
•	Safety transformer conforming to EN 61558-2-6
•	Safe isolation between power supply and output circuits

Specifications:_..

DC output:		0 − 12 V, max. 3 A
AC outputs:		3 / 6 / 9/ 12 V, max. 3 A (differential)
Output power:		max. 36 W
Terminals:		4 mm safety sockets
