Ne Franck-Hertz Tube
with Connector Base

Description
Experiments

Product Information:

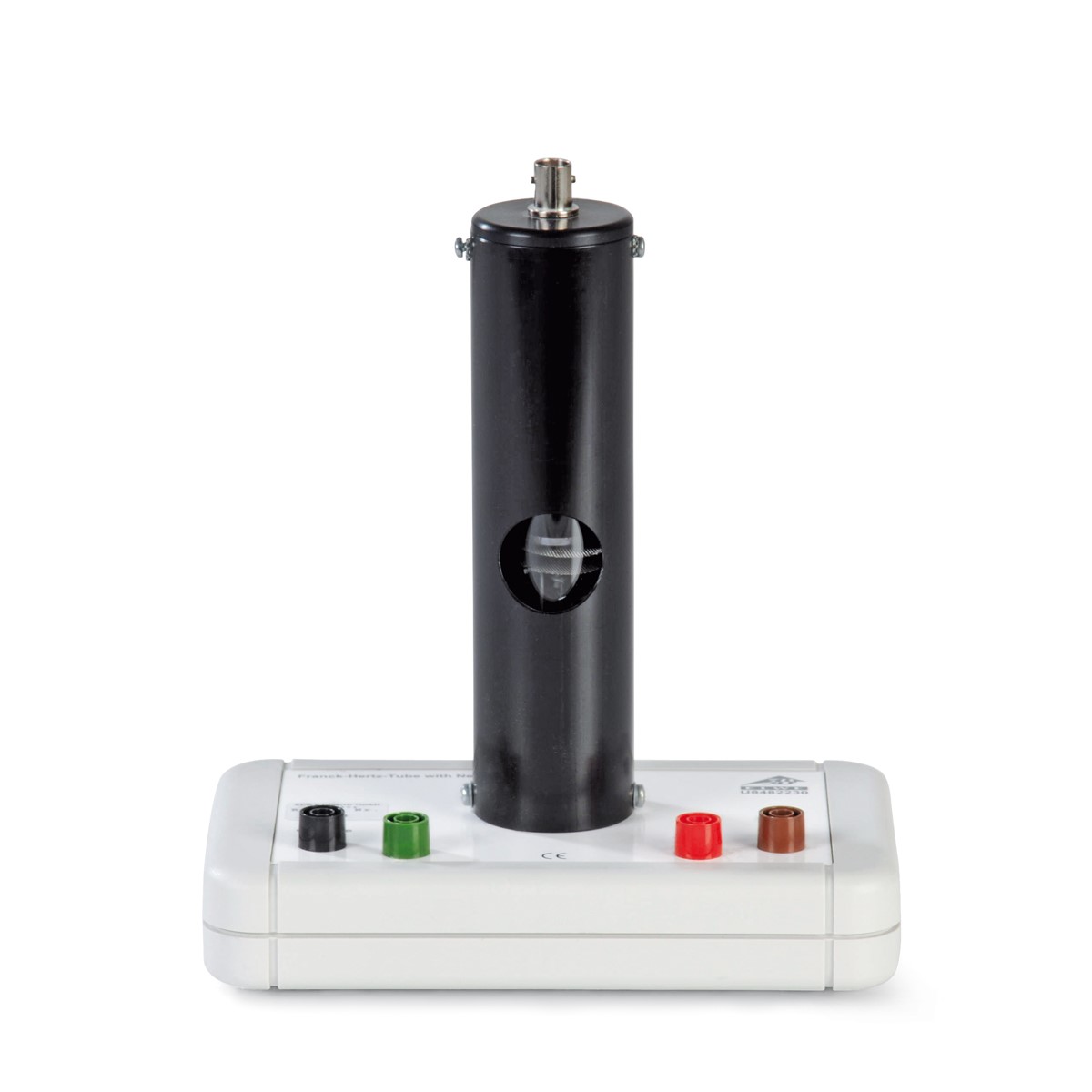

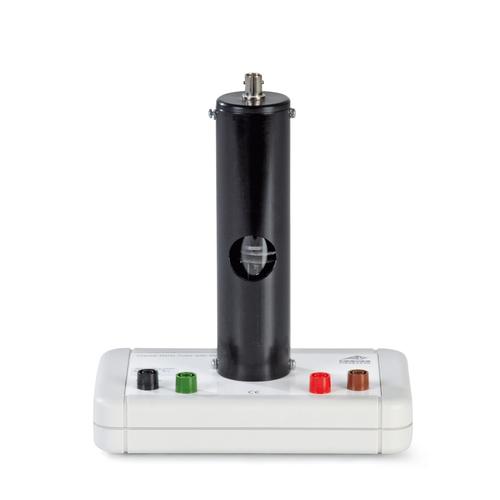

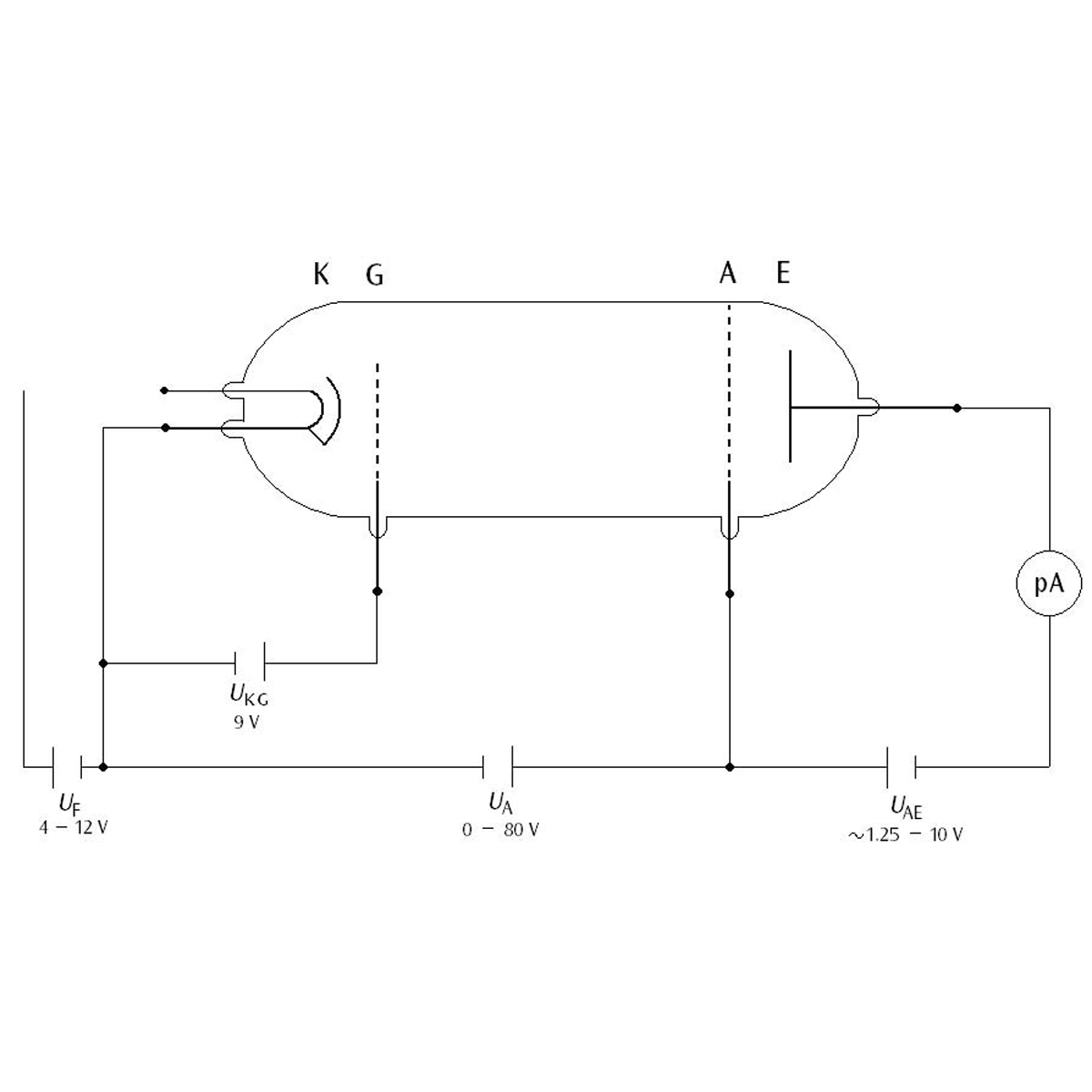

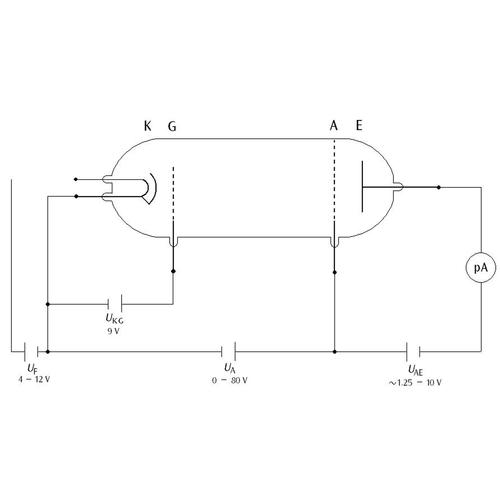

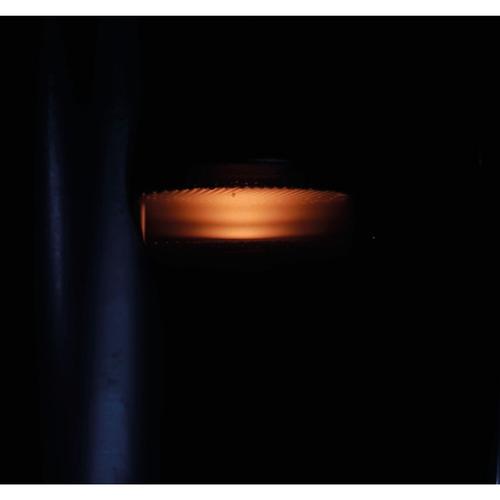

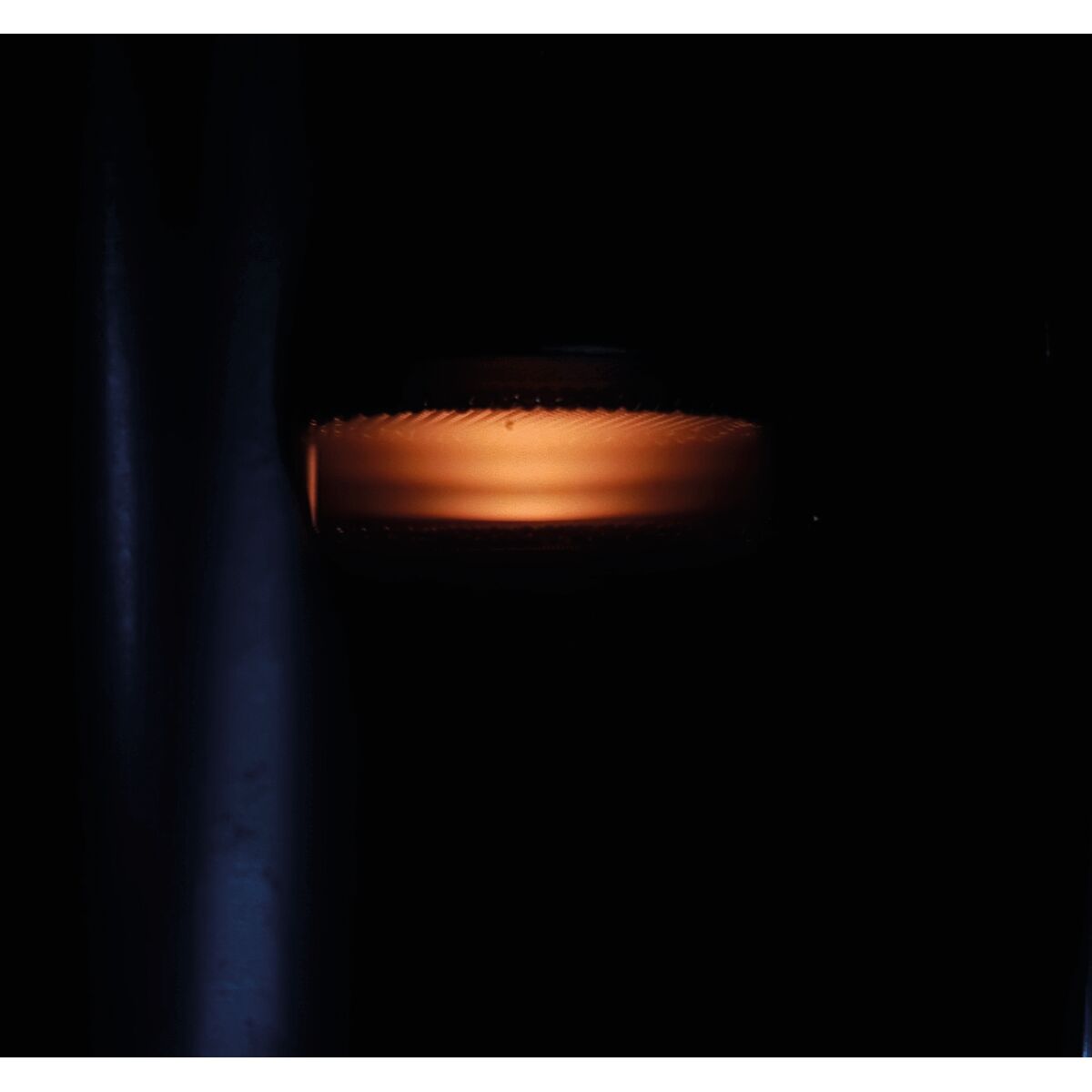

The Ne Franck-Hertz tube can be operated at room temperature. The tube is a tetrode featuring an indirectly heated barium oxide cathode, a mesh-type control grid, a mesh-type anode grid, and a collector electrode. These four electrodes are arranged in a plane-parallel configuration.
The connection sockets for the heater, control grid, and anode grid voltages are located on the base of the instrument. The collector current is taken off through the BNC socket at the top end of the shielding cylinder. An internal 10 kΩ limiting resistor is permanently installed between the connection sockets for the accelerator voltage (control grid) and the anode voltage. This protects the tube in the event of a spark discharge caused by the application of excessively high voltage. The voltage drop across this resistor during measurements is negligible, as the anode current in the tube is less than 5 pA. (Thus, the voltage drop across the protective resistor is 0.05 V.)

Specifications:_..

Filament voltage:	4 V − 12 V
Control voltage:	9 V
Accelerating voltage:	max. 80 V
Retarding voltage:	1.2 V − 10 V
Tube dimensions:	130 mm x 26 mm Ø approx.
Base with connection sockets:	190 mm x 115 mm x 115 mm approx.
Weight:	450 g approx.

Recommendation:_..

3B Scientific offers three complete experiments (in 115 V and 230 V) for school and university education on the topic of “Verification of Discrete Energy States in Atoms.” :

	Item no. :_..	Experiment:_..
	8000711	Experiment: Franck-Hertz – Mercury (115 V, 50/60 Hz)
	8000712	Experiment: Franck-Hertz – Mercury (230 V, 50/60 Hz)
	8000713	Experiment: Franck-Hertz – Neon (115 V, 50/60 Hz)
	8000714	Experiment: Franck-Hertz – Neon (230 V, 50/60 Hz)
	8000715	Experiment: Ionization Potentials (115 V, 50/60 Hz)
	8000716	Experiment: Ionization Potentials (230 V, 50/60 Hz)
