Objective: Description of elliptical oscillations of a string pendulum as the superimposition of two components perpendicular to one another

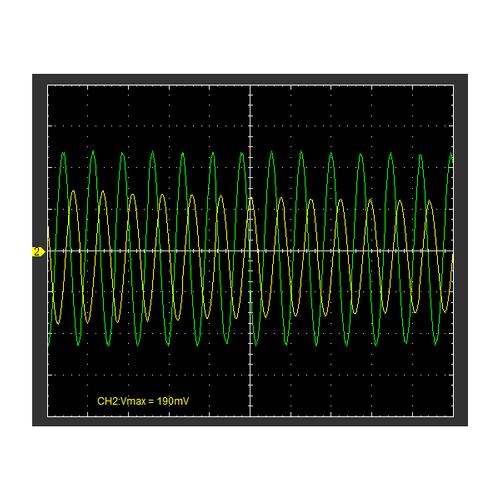

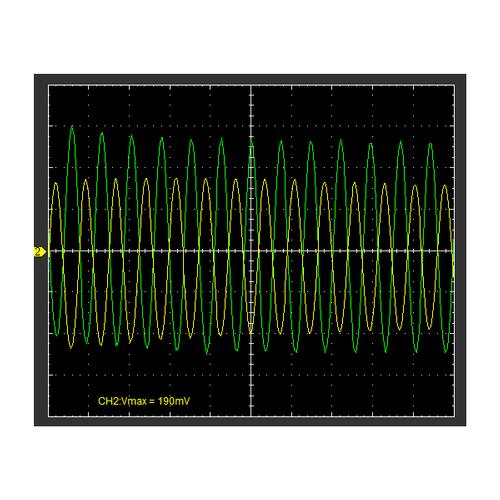

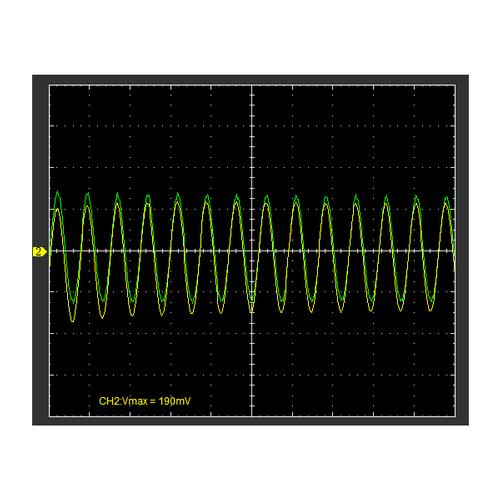

Depending on the initial conditions, a suitable suspended string pendulum will oscillate in such a way that the bob’s motion describes an ellipse for small pendulum deflections. If the motion is resolved into two perpendicular components, there will be a phase difference between those components. This experiment will investigate the relationship by measuring the oscillations with the help of two perpendicularly mounted dynamic force sensors. The amplitude of the components and their phase difference will then be evaluated.
Item No.: 8000549 [UE1050121-230]
Brand 3B Scientific

Documentation

PDF UE1050121_Experiment instruction
ADD TO QUOTE

Delivery scope

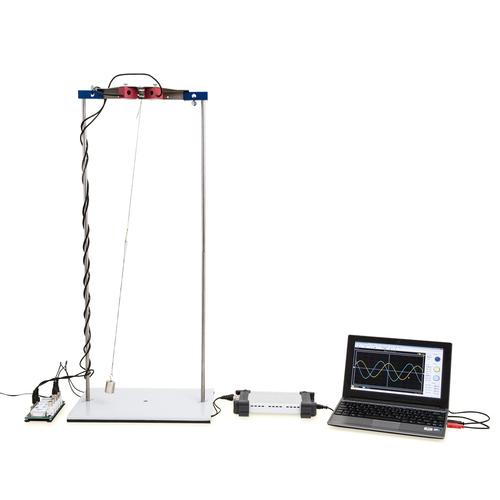

Set String Pendulum - for tabletop experiments, 1012854 [U61025], Oscillations

Set String Pendulum -
for tabletop experiments

1012854 [U61025]
Laboratory Support Equipment Mechanical Oscillations, 1012849 [U61022], Tripods and Barrel Feet

Laboratory Support Equipment Mechanical Oscillations

1012849 [U61022]
Sensor Technology Mechanical Oscillations, 1012850 [U61023-230], Oscillations - Accessory

Sensor Technology Mechanical Oscillations

1012850 [U61023-230]
PC Oscilloscope 2x25 MHz, 1020857 [U11830], Oscilloscopes

PC Oscilloscope 2x25 MHz

1020857 [U11830]
