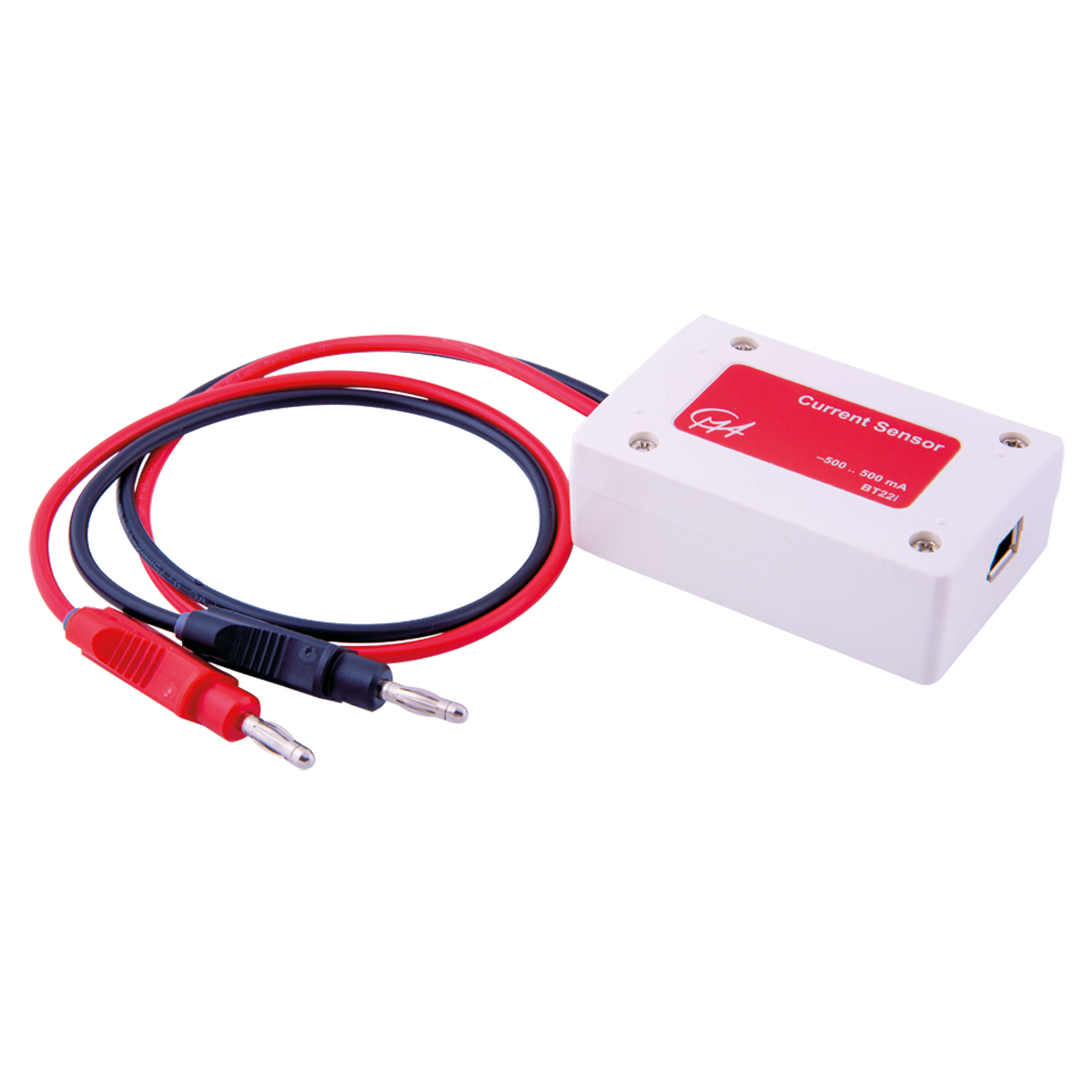

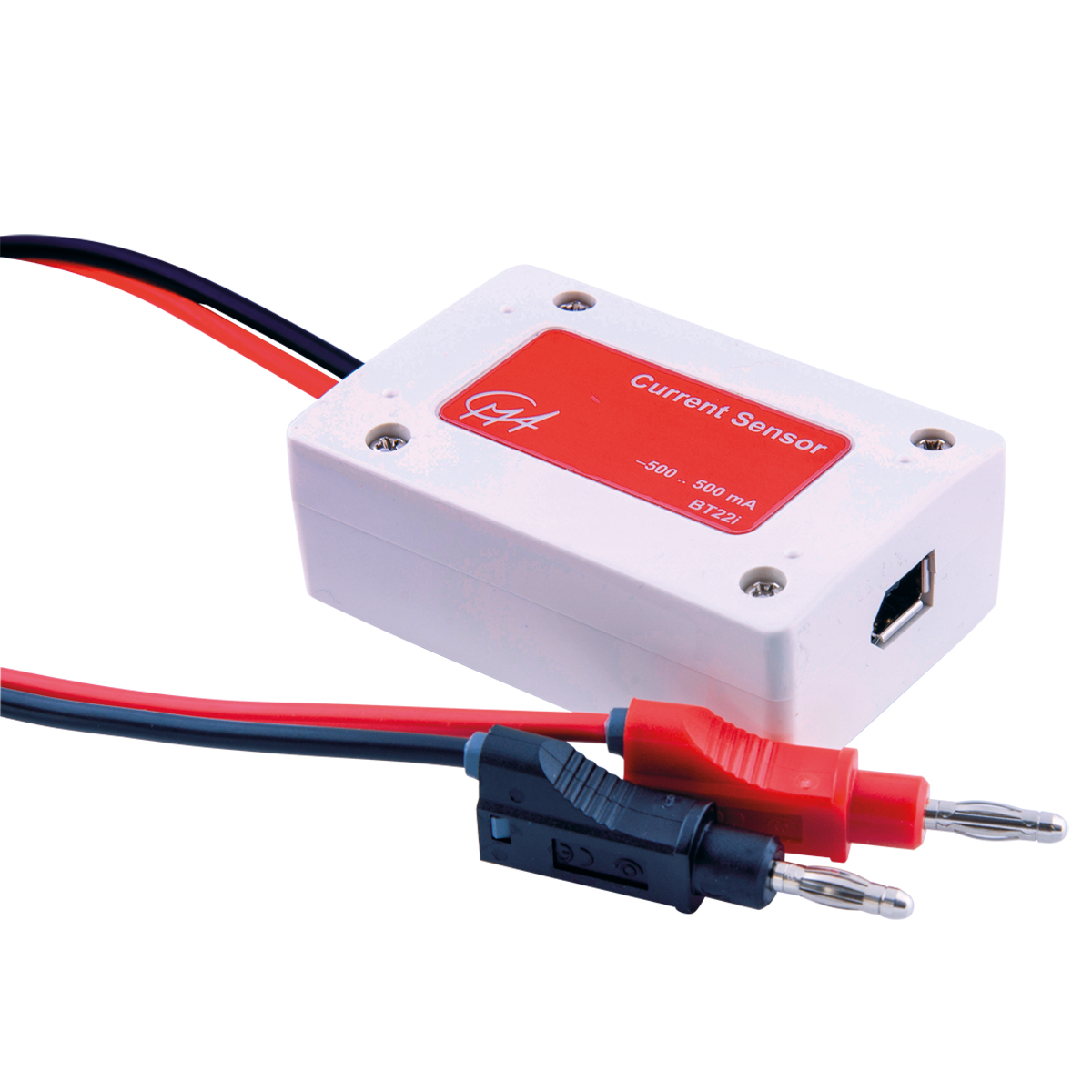

전류 센서,
-500 mA ~ +500 mA
| Product Information: .. |
| • | characteristics of a light bulb and a diode |
| • | measurements of internal resonance and EMF |
| • | measurements in series and parallel electrical circuits |
Together with a Differential Voltage Sensor it can be used to investigate and explore the relationship between the current and the voltage in electrical circuits - the Ohm’s Law.
The Current Sensor can be directly connected to analog inputs of the suitable interfaces.
| Note: The sensor cable required to connect the sensor to an interface is not included with delivery of the sensor and must therefore be purchased separately. |
| Specifications: .. |
| Range: | -500 to +500 mA |
| Resolution (12-bit): | 0.38 mA |
| Additionally required: .. |
| Variant 1: (PC/Tablet) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1022284 | WiLab |
| 1 x | Software License Coach7 | |
| or | ||
| Variant 2: (Data-Logger VinciLab) | ||
| 1 x | 1021514 | Sensor Cable |
| 1 x | 1021477 | VinciLab |
| 1 x | Software License Coach7 | |
