저항 측정 브리지

저항 측정 브리지

제품설명
다음 실험들에 사용됩니다.

Product Information:_..

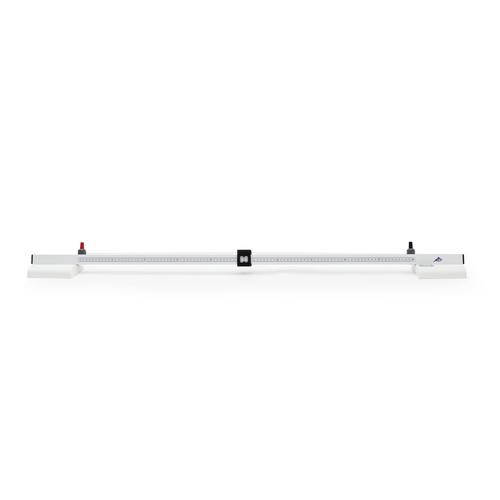

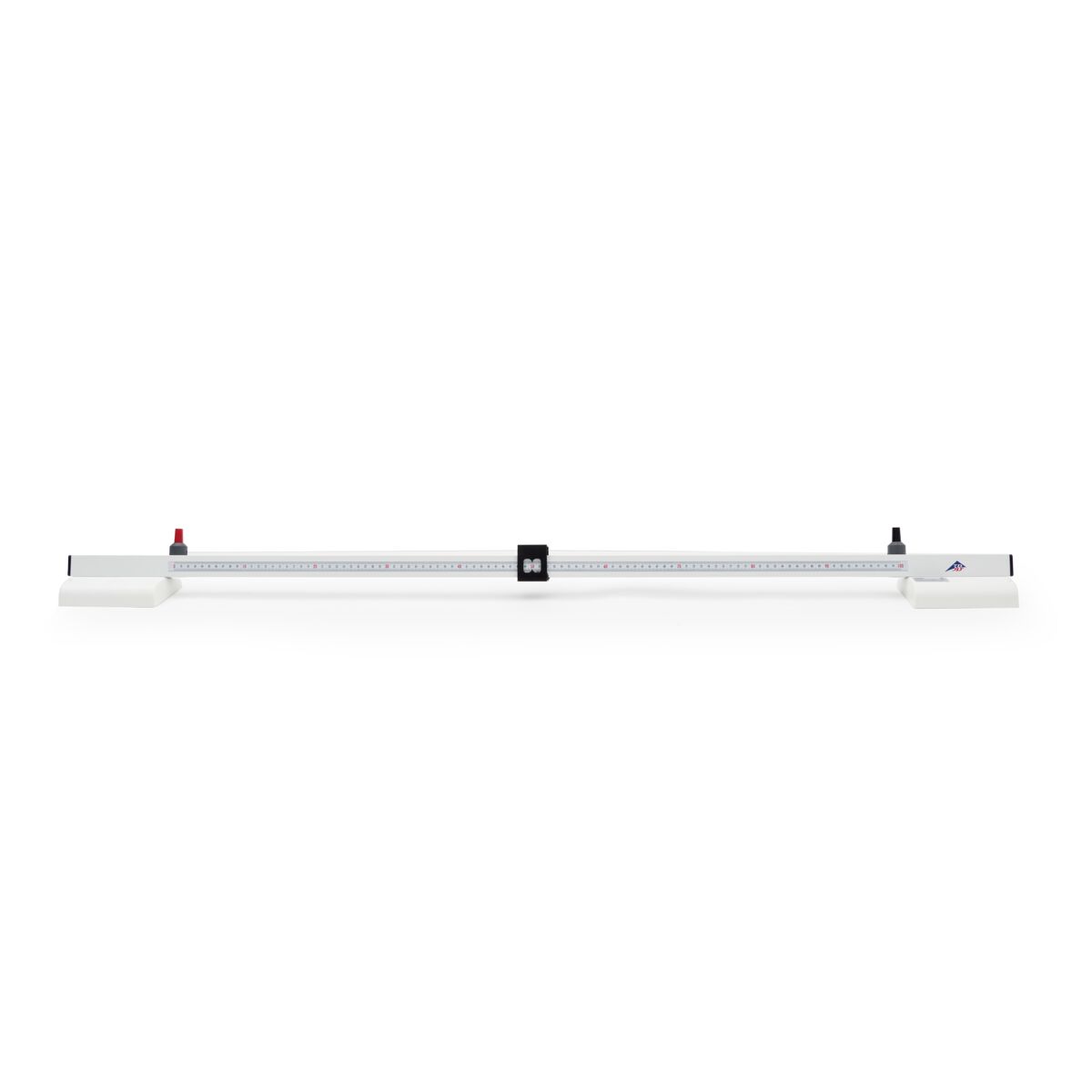

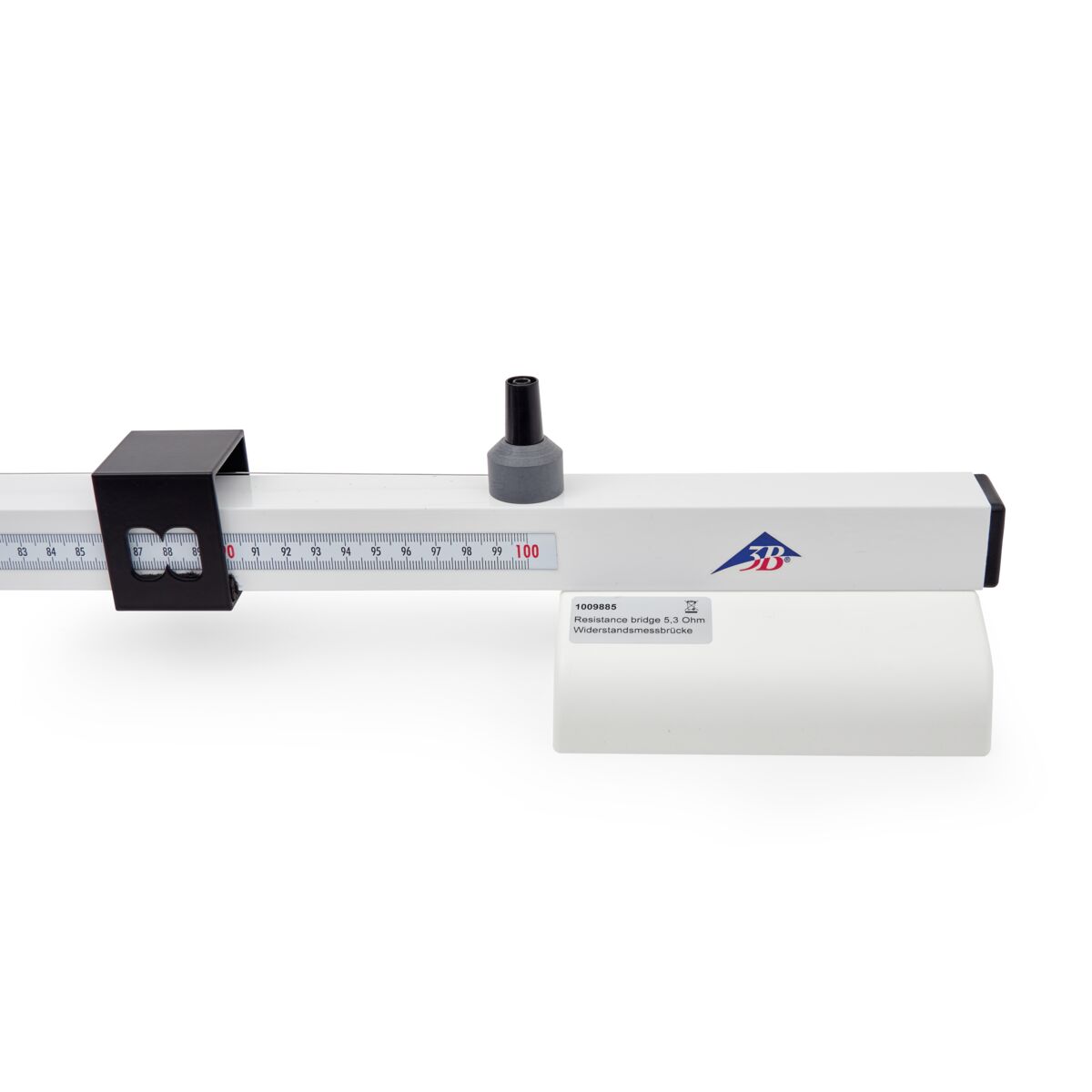

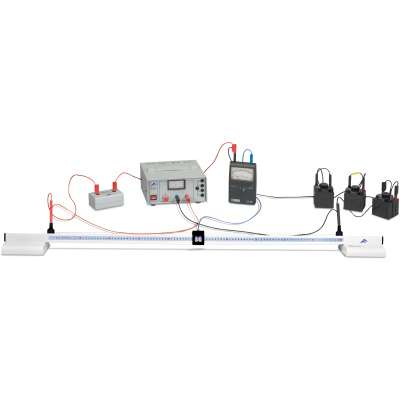

Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages. It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.

Specifications:_..

Dimensions:	approx. 1300 mm x 100 mm x 90 mm
Rail:	approx. 30 mm x 30 mm
Scale:	0 – 1000 mm
Scale divisions:	mm
Resistance wire:	1 m, 0.5 mm dia.
Material:	NiCr
Resistance:	5.3 Ω
Connection:	4 mm safety jacks
Maximum permissible voltage:	8 V
Maximum permissible current:	1.5 A
