실험: LC 진동 회로
![실험: LC 진동 회로, 8000652 [UE3050400-230], Direct and alternating current (DC and AC)](/imagelibrary/UE3050400-230/UE3050400-230_01_실험-LC-진동-회로.jpg)
![실험: LC 진동 회로, 8000652 [UE3050400-230], Direct and alternating current (DC and AC)](/thumblibrary/UE3050400-230/UE3050400-230_01_1200_1200_실험-LC-진동-회로.jpg)

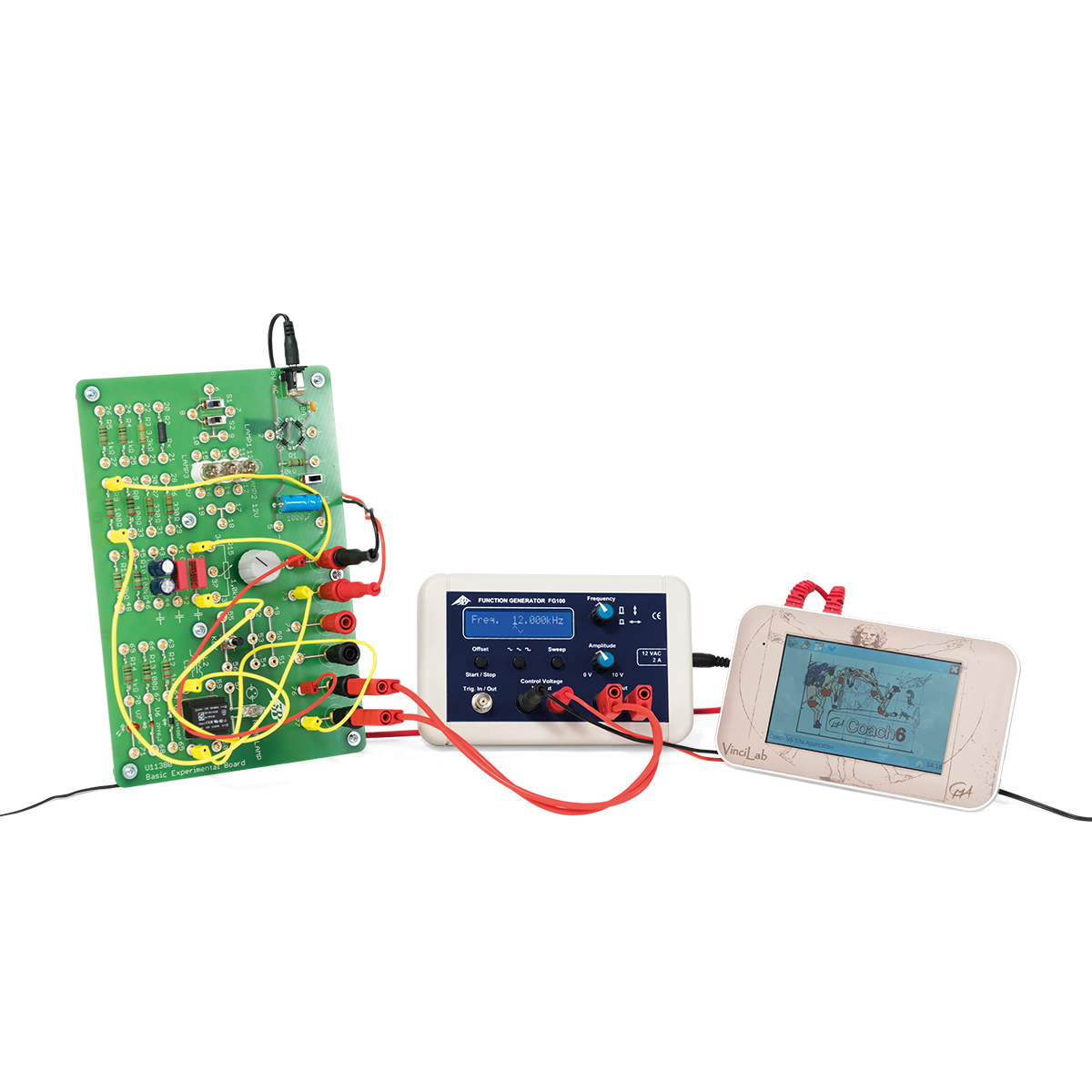

Objective: Investigate the resonance response of a series LC resonant circuit
An electric resonant (also resonance or tuned) circuit is a circuit which is capable of resonating at a specific frequency. It comprises an inductor and a capacitor. In this experiment an AC voltage is generated with the help of a function generator and fed to a series resonant circuit. What will be measured is the amplitude resonance curve, i.e. the current as a function of the frequency at a constant voltage amplitude. If the capacitance is known, it is possible to calculate the unknown inductance of the circuit.
