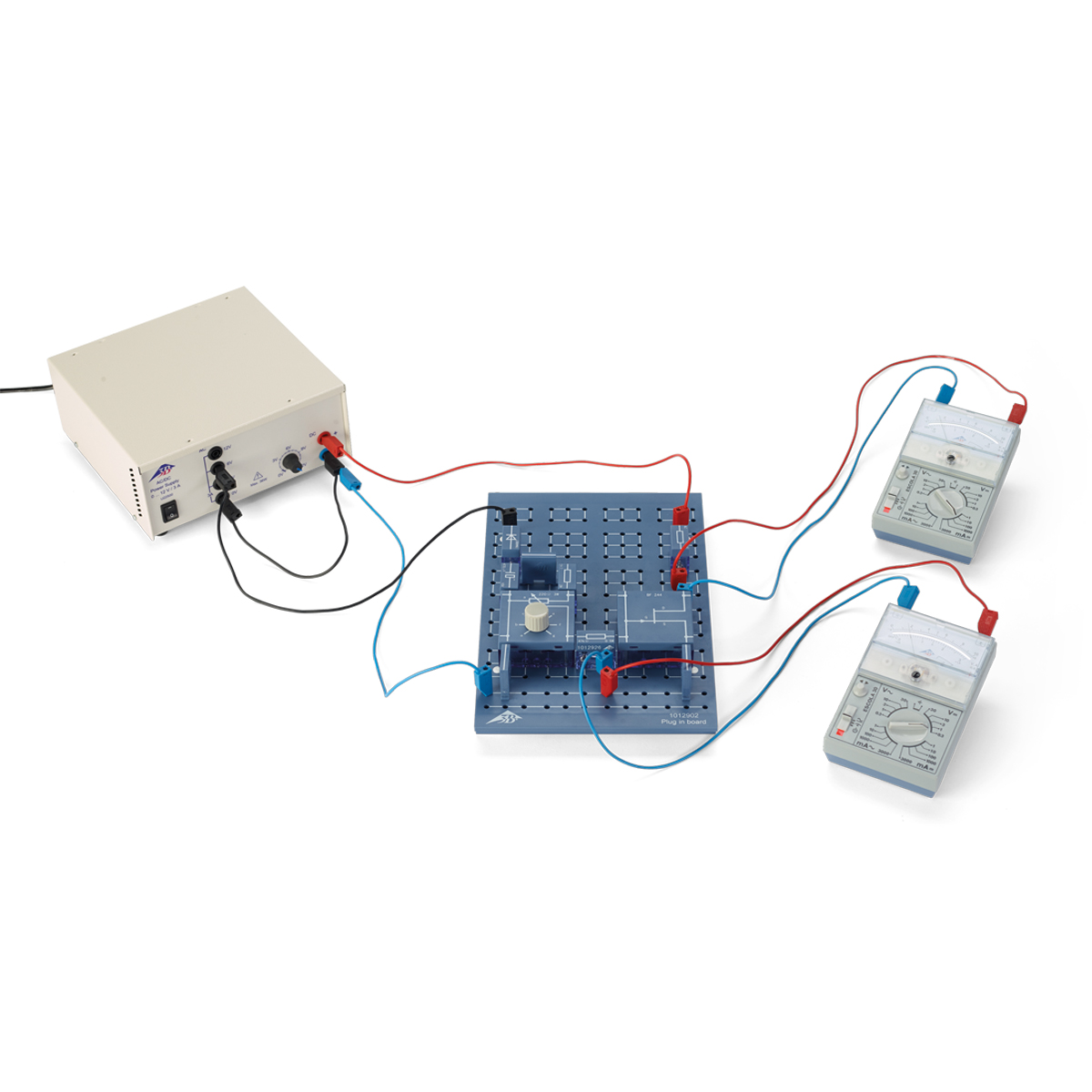

실험: 전계 효과 트랜지스터
(115볼트, 50/60헤르츠)

가격 문의

제품 문의

제품설명
Delivery scope

Objective: Measure the characteristics of a field effect transistor

A field effect transistor (FET) is a semiconductor component in which electric current passes through a channel and is controlled by an electric field acting perpendicular to the channel. FETs have three contacts, called source, drain and gate due to their respective functions. If a voltage is applied between the source and the drain, then a drain current flows between the two. For small voltages between the drain and source, an FET acts like a simple ohmic resistor with a correspondingly linear characteristic. As the source-drain voltage increases, the channel becomes restricted and eventually is cut off entirely. The characteristic then enters an area of saturation. When the gate voltage is non-zero, the saturation value of the drain current decreases.

품번: 8000675 [UE3080300-115]
