실험: 원기둥 막대의 비틀림

실험: 원기둥 막대의 비틀림, 8000759 [UE1090300-230], 고체 물체의 변형
실험: 원기둥 막대의 비틀림, 8000759 [UE1090300-230], 고체 물체의 변형

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz
가격 문의

Objective: Determination of torsional coefficients and shear modulus.

Thematic focus: ..
• Determine the torsional coefficients of cylindrical rods as a function of their length.
• Determine the torsional coefficients of cylindrical rods as a function of their diameter.
• Determine the torsional coefficients of cylindrical rods made of various materials and also find their shear modulus

Experiment description: ..

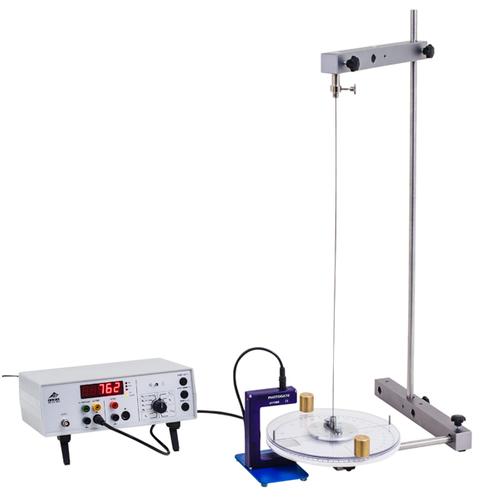

In order for solid bodies to be deformed, an external force needs to be applied. This acts against the body’s own resistance to deformation, which is dependent on the material from which the body is made, as well as its geometry and the direction of the applied force. The deformation is reversible and proportional to the applied force as long as that force is not too great. One example which is often investigated is torsion applied to a uniform cylindrical rod which is fixed at one end. The resistance of the rod to deformation can be numerically analysed and determined by building a set-up which is capable of oscillating involving the rod itself and a pendulum disc and then measuring the period of the oscillation.
품번: 8000759 [UE1090300-230]
브랜드 3B Scientific

제품 매뉴얼

PDF Safety and Warning Information
가격 문의

Delivery scope

Torsion Apparatus - torsion and shear modulus, 1018550 [U8557300], 비틀림 장치

Torsion Apparatus -
torsion and shear modulus

1018550 [U8557300]
Supplement: Torsion Apparatus, 1018787 [U8557430], 비틀림 장치

Supplement: Torsion Apparatus

1018787 [U8557430]
Photo Gate, 1000563 [U11365], 물리학 센서

Photo Gate

1000563 [U11365]
디지털 카운터/타이머, 1001033 [U8533341-230], 디지털 카운터

디지털 카운터/타이머

1001033 [U8533341-230]
