마이크로초급 타이머/카운터

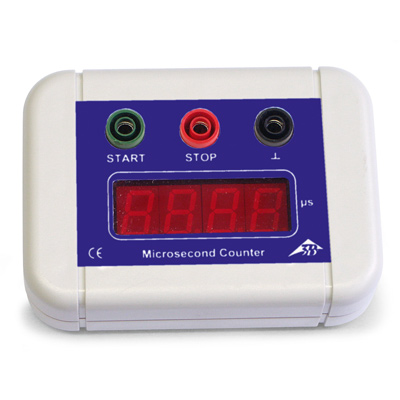

마이크로초급 타이머/카운터, 1017333 [U8498285-230], 디지털 카운터
마이크로초급 타이머/카운터, 1017333 [U8498285-230], 디지털 카운터

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz
가격 문의
Included In Bundle
제품을 사용하는 모든 실험에 대한 개요

Application: ..
The microsecond counter is a component of experiments to determine the speed of sound (item no: 8000567) and a required accessory for Kundt's Tube E (item no: 1017339). The microsecond counter is used in conjunction with the microphone box.

Product Information: ..
The microsecond counter is a compact counter for measuring time in microseconds. It is especially well suited for measurements made in conjunction with Kundt’s tube and the microphone box.
The counting process is start via the Start input and halted via the Stop input. The count is automatically reset back to zero on each start. Both inputs respond to rising edges and have internal pull-up resistors.

Specifications: ..
Voltage supply: Plug-in power supply 12 V AC, 500 mA
  (included in delivery)
Dimensions: 100 mm x 75 mm x 35 mm approx.
Weight: 400 g approx. incl. plug-in power supply

Start input:
Internal resistance: 2,4 kΩ
Trigger thresholds: Low 0...0.5 V, High 1...5 V
Stop input:
Internal resistance: 5,6 kΩ
Trigger thresholds: Low 0...1 V, High 2...5 V

Connectors: 4-mm safety sockets
Switching edge
for both inputs: Rising edge
Display: 4-digit LED display
Measuring range: 1...9999 µs
Resolution: 1 µs
Precision: Quartz precision

Contents: ..
1 Counter
1 Plug-in power supply 12 V AC
1 Instruction sheet



품번: 1017333 [U8498285-230]
무게 0.431 kg
치수 24.5 x 16 x 8 cm
브랜드 3B Scientific
