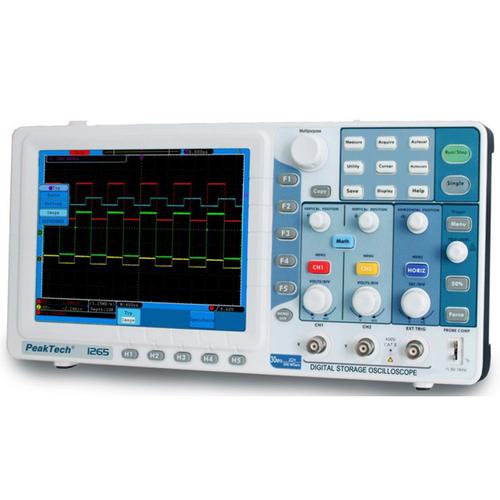

디지털 오실로스코프, 2 x 30 메가헤르츠

디지털 오실로스코프,
2 x 30 메가헤르츠

제품설명
다음 실험들에 사용됩니다.

Latest generation, dual-channel digital storage oscilloscope for many applications with the following features:

High-resolution colour display and back-lighting
Large internal data memory
VGA output for connecting external monitor
LAN connection for remote access via network
USB port for real-time data transmission or for reading internal memory
Autoset and autoscale functions for user-friendly operation
20 automatic measuring modes plus FFT function
PASS/FAIL function

Includes two probes, two BNC cables, pass/fail adapter, USB connecting cable, and software CD for Windows 2000/XP/VISTA/7/8/10.

Channels:                          Two
Band width:                       30 MHz
Sample rate:                      Dual CH 125 MS/s
                                             Single CH 250 MS/s
Operating modes:             CH1, CH2, XY
Input:
Input coupling:                  DC, AC, GND
Input impedance:              1 MΩ ±2% ll 10 pF ±5 pF
Input voltage:                     0 – 400 V DC or ACpp
Vertical:
Deflection coefficient:      5 mV/div. – 5 V/div.
Precision:                           ± 3%
A/D converter:                   8-bit resolution
Horizontal:
Time-base coefficient:     4 ns/div. – 100 s/div.
Sampling range:               5 S/s – 125 MS/s
Precision:                           100 ppm x reading + 0.6 ns
Measuring mode:
Automatic measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, overshoot, pre-shoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), freq, period
Maths functions:               +, -, *, /, FFT
Trigger:
Trigger type:                       Edge, Video, Pulse, Slope
Trigger modes:                  Auto, Normal, Single
Trigger detection:              Sample, peak detect, average
Interfaces:
Memory size:                     10000 measurements
Interface:                            USB 2.0, VGA, LAN
Power supply: 100 ~ 240 V AC_eff, 50/60 Hz
General data:
Display:                              TFT colour screen, 8 inches, 800 x 600 pixels, 65536 colours
Dimensions:                      355x178x118 mm³ approx.
Weight:          1.6 kg approx.

품번: 1020910 [U11834]
