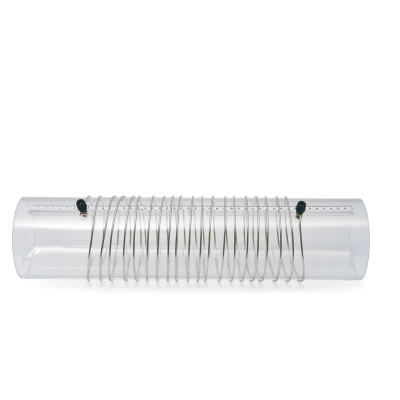

권선 밀도 가변 솔레노이드
![권선 밀도 가변 솔레노이드, 1000965 [U8496175], 기본 장비](/imagelibrary/U8496175/U8496175_01_권선-밀도-가변-솔레노이드.jpg)
| Product Information: .. |
The flux density is measured using a teslameter with Hall sensor (e.g. item no. 1024236). An insertable plastic strip is used to mount a compass in order to determine how the field lines align. The coil can be mounted on any 10-mm stand rod.
| Specifications: .. |
| Coil material: | Cu wire, 2.00 mm² |
| Coil diameter: | 100 mm |
| Number of turns: | 30 |
| Coil length: | 80 – 450 mm |
| Current: | max. 10 A, for short periods 20 A |
| Connection: | via 4-mm-safety sockets |
| Weight: | 410 g approx. |
