광속 측정기
(115 볼트, 50/60 헤르츠)

광속 측정기 (115 볼트, 50/60 헤르츠), 1000881 [U8476460-115], 빛의 속도
광속 측정기 (115 볼트, 50/60 헤르츠), 1000881 [U8476460-115], 빛의 속도

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz
가격 문의
Included In Bundle
제품을 사용하는 모든 실험에 대한 개요

Product Information: ..
Equipment set for determining the speed of light thanks to electronic run-time measurement.

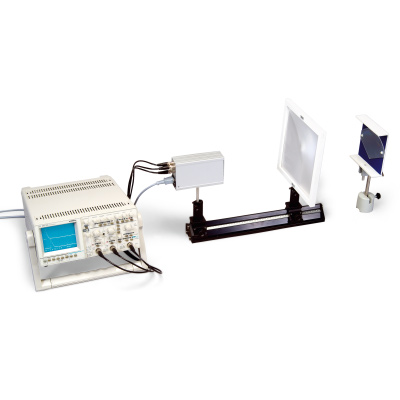

Comprises a compact housing containing a transmitter emitting short LED pulses, a photo receiver and a calibrated, oscillating quartz generator producing chronologically precise square-wave pulses. Emitted light pulses are returned by an internal reflector and by a triple-prism reflector placed a long distance from the light source. The returning light signals are then superimposed on the original signal. A dual-channel oscilloscope is used to measure the time difference between the two signals. The speed of light can be calculated from this difference and the distance to the triple-prism reflector.
The triple-prism reflector can be installed by eye without the need for complex adjustments

Contents: ..

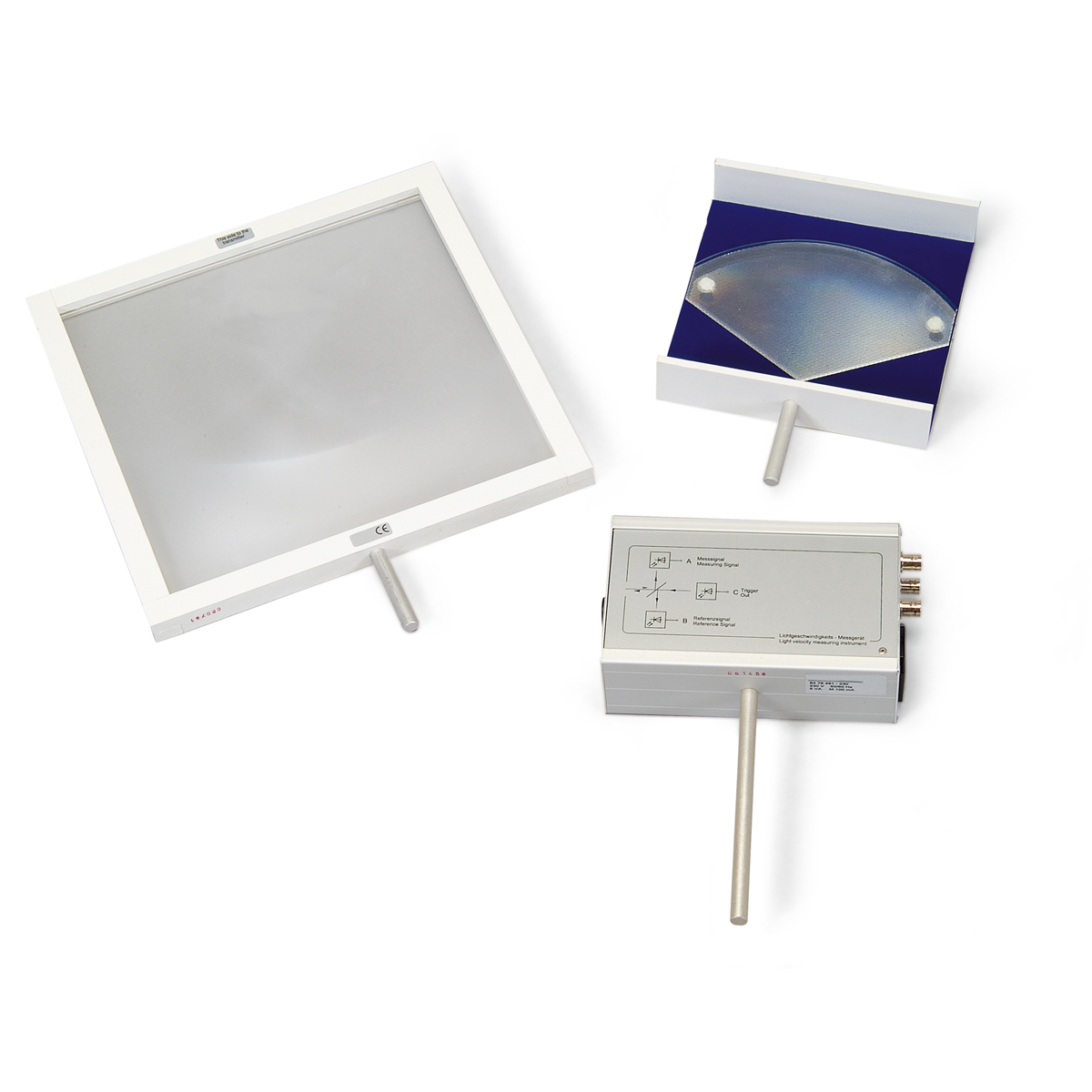

1 Control unit with a transmitter, receiver and integrated power supply unit
1 Fresnel lense on shaft
1 Triple-prism reflector on shaft
3 HF cables, 1 m



품번: 1000881 [U8476460-115]
무게 1.617 kg
브랜드 3B Scientific
