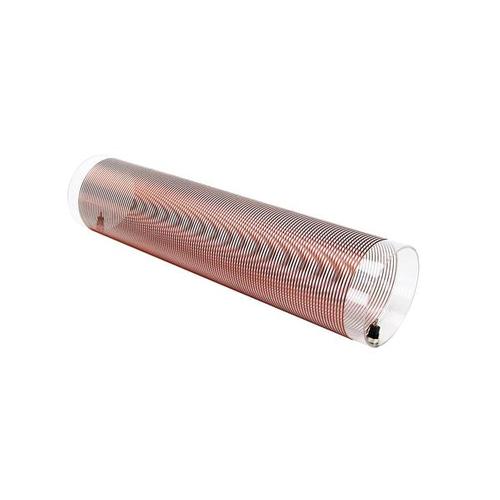

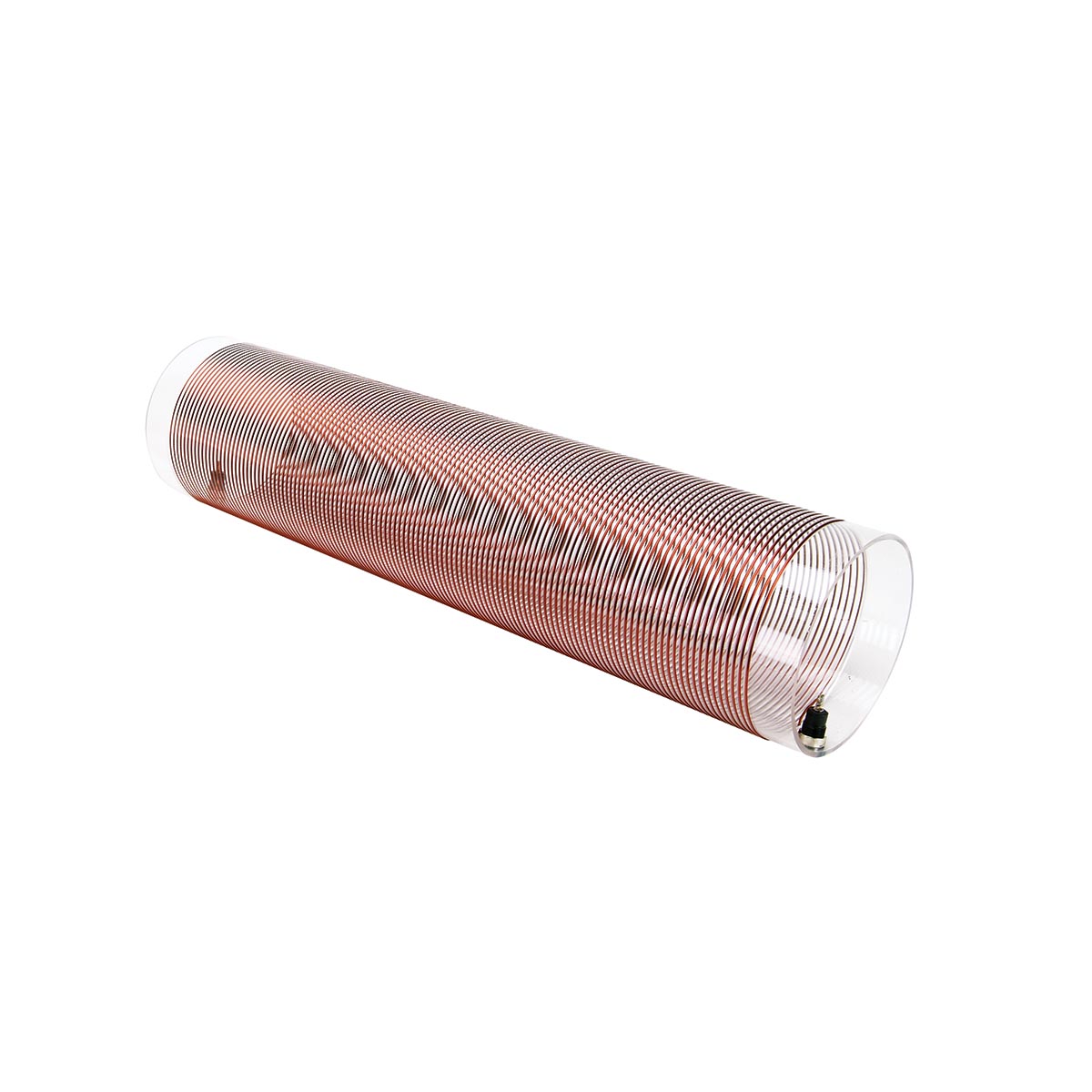

공심 솔레노이드,
지름 120 mm

가격 문의

제품을 사용하는 모든 실험에 대한 개요

제품 문의

제품설명
다음 실험들에 사용됩니다.

Product Information:_..

Field coil for investigating the magnetic flux density of cylindrical coils as a function of the turn density. The flux density is measured using a teslameter with Hall sensor (e.g. item no. 1024236). The coil is wound onto an acrylic cylinder.

Specifications:_..

Coil material:	Cu wire, 1.25 mm, Isoflex
Coil diameter:	120 mm
Number of turns:	120
Coil length:	490 mm
Current:	max. 10 A, for short periods 20 A
Connection:	via 4 mm-safety sockets
