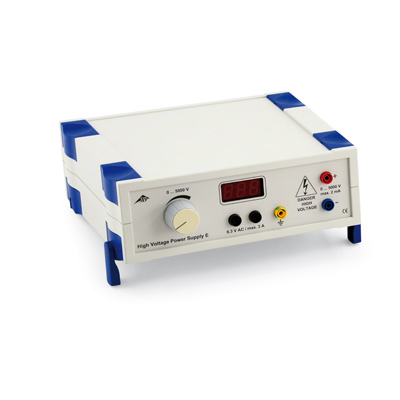

고전압 전원 공급 장치 E,
0 – 5 kV, 최대 2 mA

고전압 전원 공급 장치 E, 0 – 5 kV, 최대 2 mA, 1013412 [U8498294-230], 전원
고전압 전원 공급 장치 E, 0 – 5 kV, 최대 2 mA, 1013412 [U8498294-230], 전원

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz
가격 문의
Included In Bundle
제품을 사용하는 모든 실험에 대한 개요

Ideal for operation of numerous electron tubes: ..
• Very high-quality and extremely lightweight equipment in modern casing
• 3-digit digital display for high voltage
• Regulated high-voltage output not dependent on mains voltage
• High-voltage-proof supply for heater voltage
• No need to change fuses

Product Information: ..

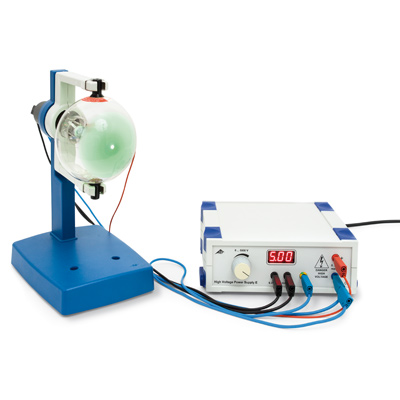

Universally applicable, floating high-voltage source for electrostatic experiments and for operating spectral tubes, gas discharge tubes and electron tubes. With built-in transformer resistance to external voltage to provide the heating voltage for electron tubes. Continuously adjustable high-voltage source, which is safe to touch, with passive current limiting and digital voltage display.

• Output voltage harmless to touch (ISC max. 2 mA)
• Safety transformer conforming to EN 61558-2-6
• Safe isolation between power supply and output circuits

Specifications: ..
High-voltage output: 0 – 5000 V DC, max. 2 mA, floating
Heater voltage output: 6.3 V AC, max. 3 A, resistance to voltage up to 5 kV
Overload protection: reversible fuse, 3 A
Connectors: 4-mm safety sockets
Power consumption: 35 VA
High-voltage display: 3-digit LED
Dimensions: 240 mm x 220 mm x 90 mm approx.
Weight: 2 kg approx.

품번: 1013412 [U8498294-230]
무게 2.1 kg
브랜드 3B Scientific
