Student Kit - Higher Level
Electronics

Student Kit - Higher Level Electronics, 1021672 [U8557920], Student Kits - Higher Level
Student Kit - Higher Level Electronics, 1021672 [U8557920], Student Kits - Higher Level
Student Kit - Higher Level Electronics, 1021672 [U8557920], Student Kits - Higher Level
Student Kit - Higher Level Electronics, 1021672 [U8557920], Student Kits - Higher Level
Student Kit - Higher Level Electronics, 1021672 [U8557920], Student Kits - Higher Level
670.00 €
In Stock
In stock
Product Information: ..

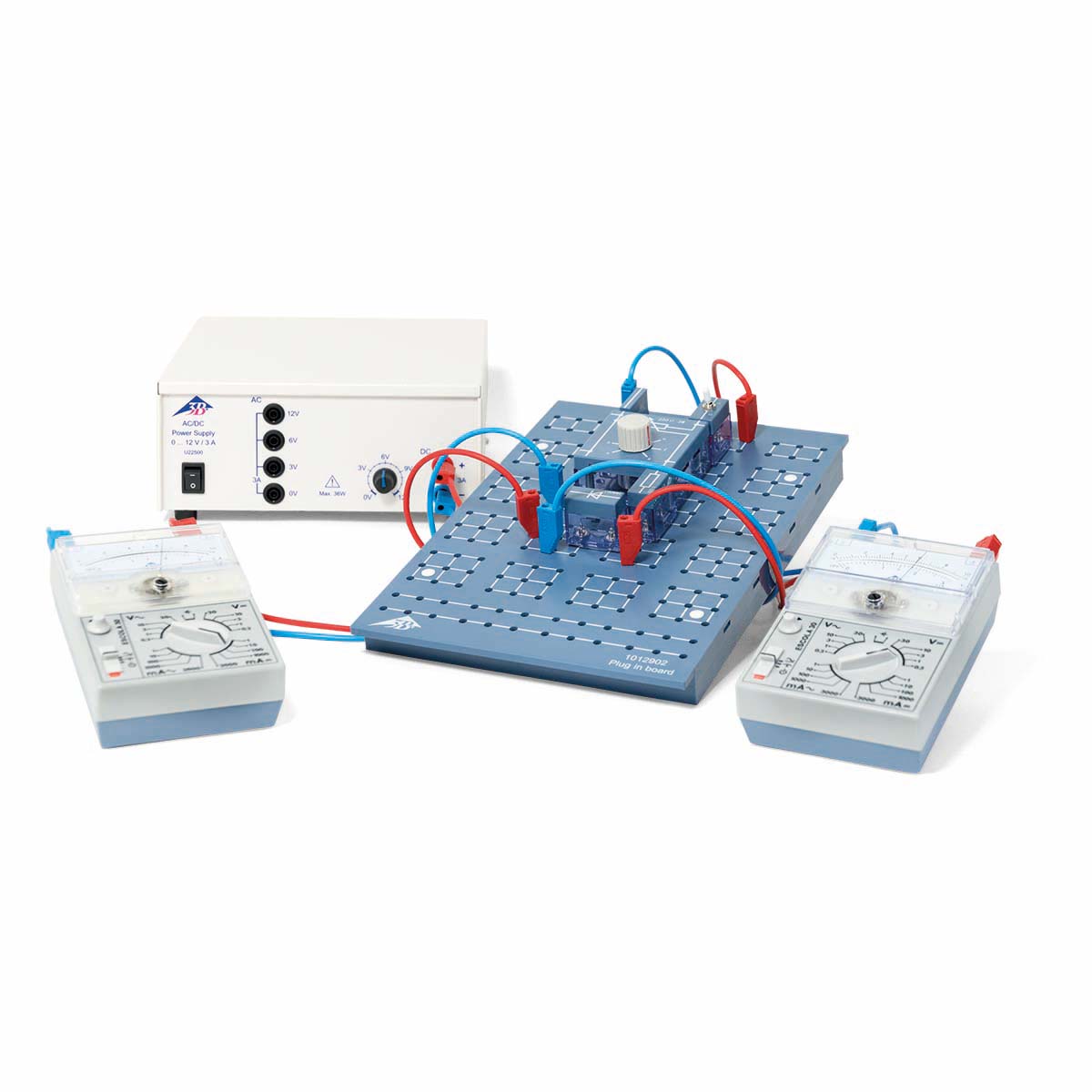

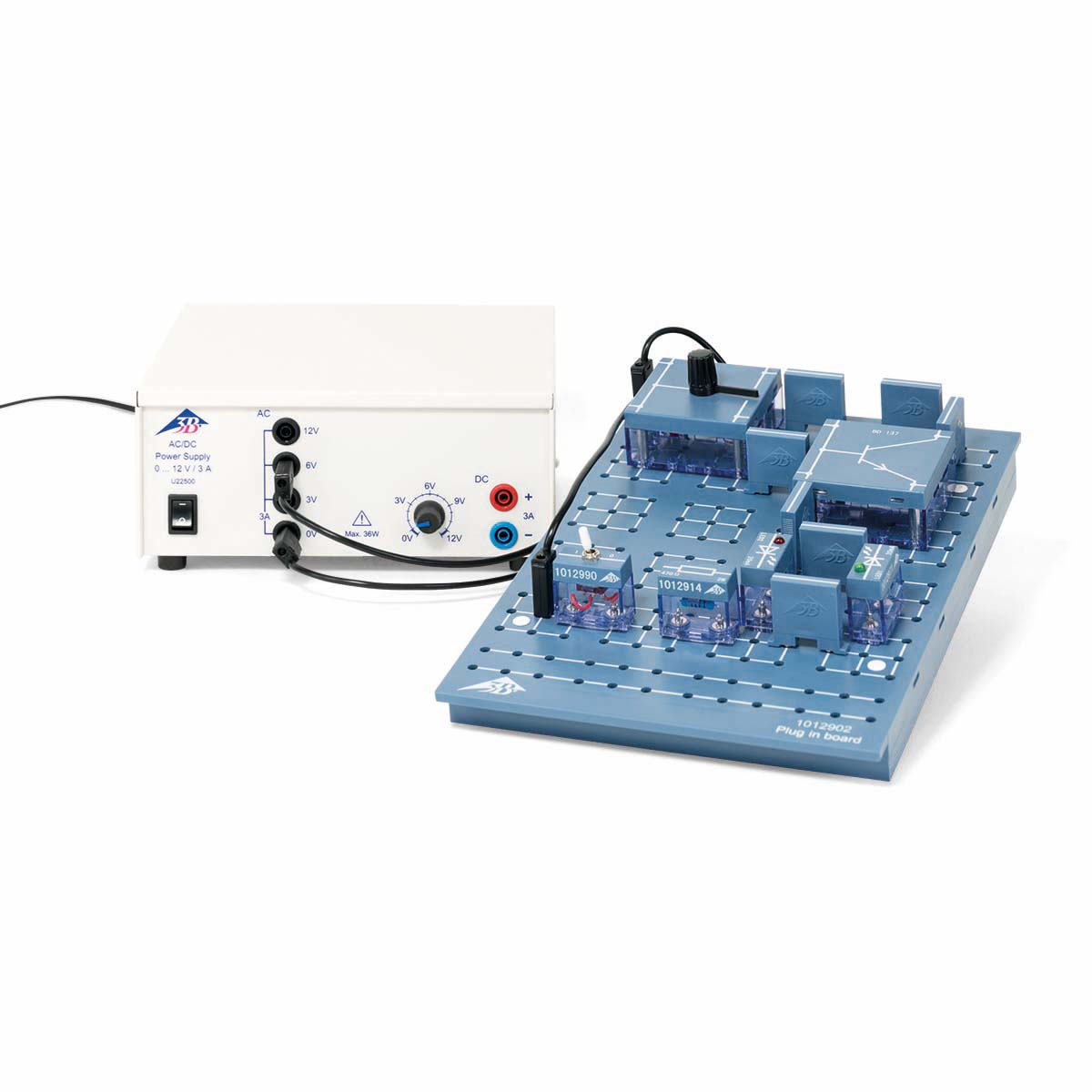

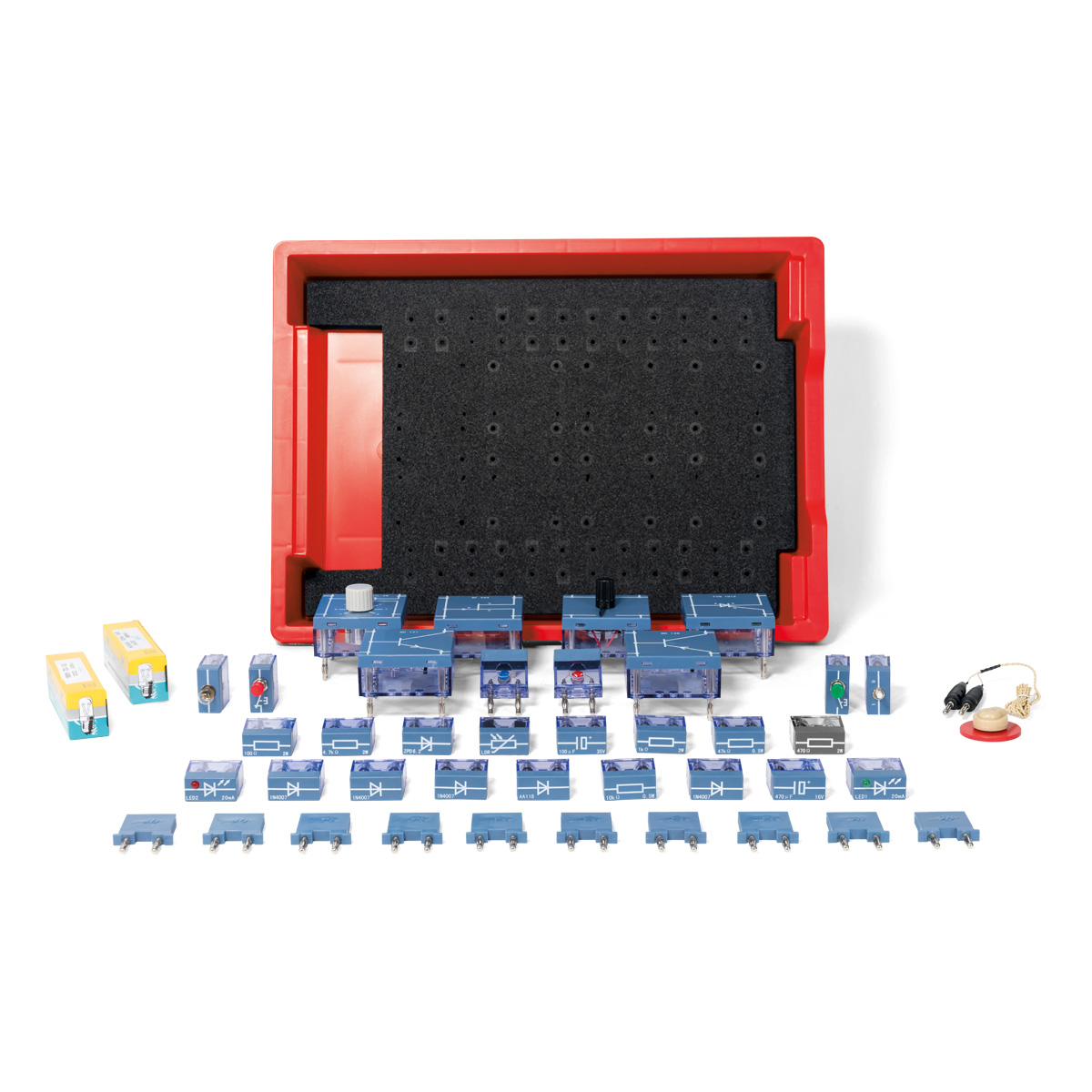

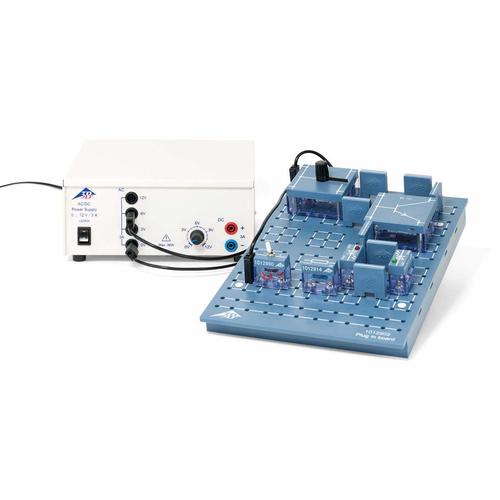

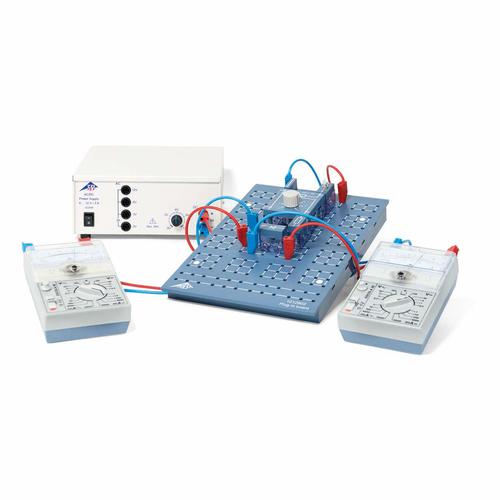

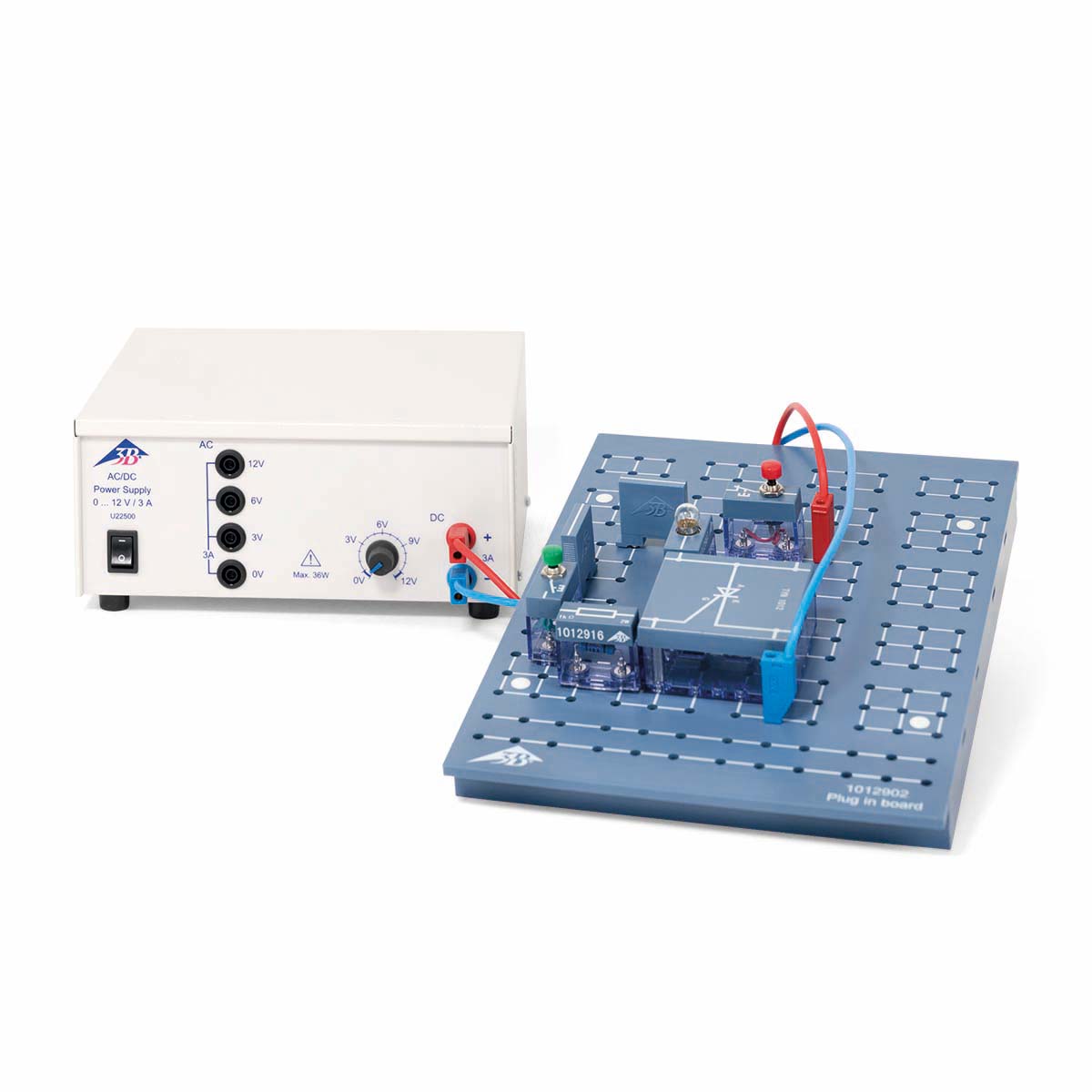

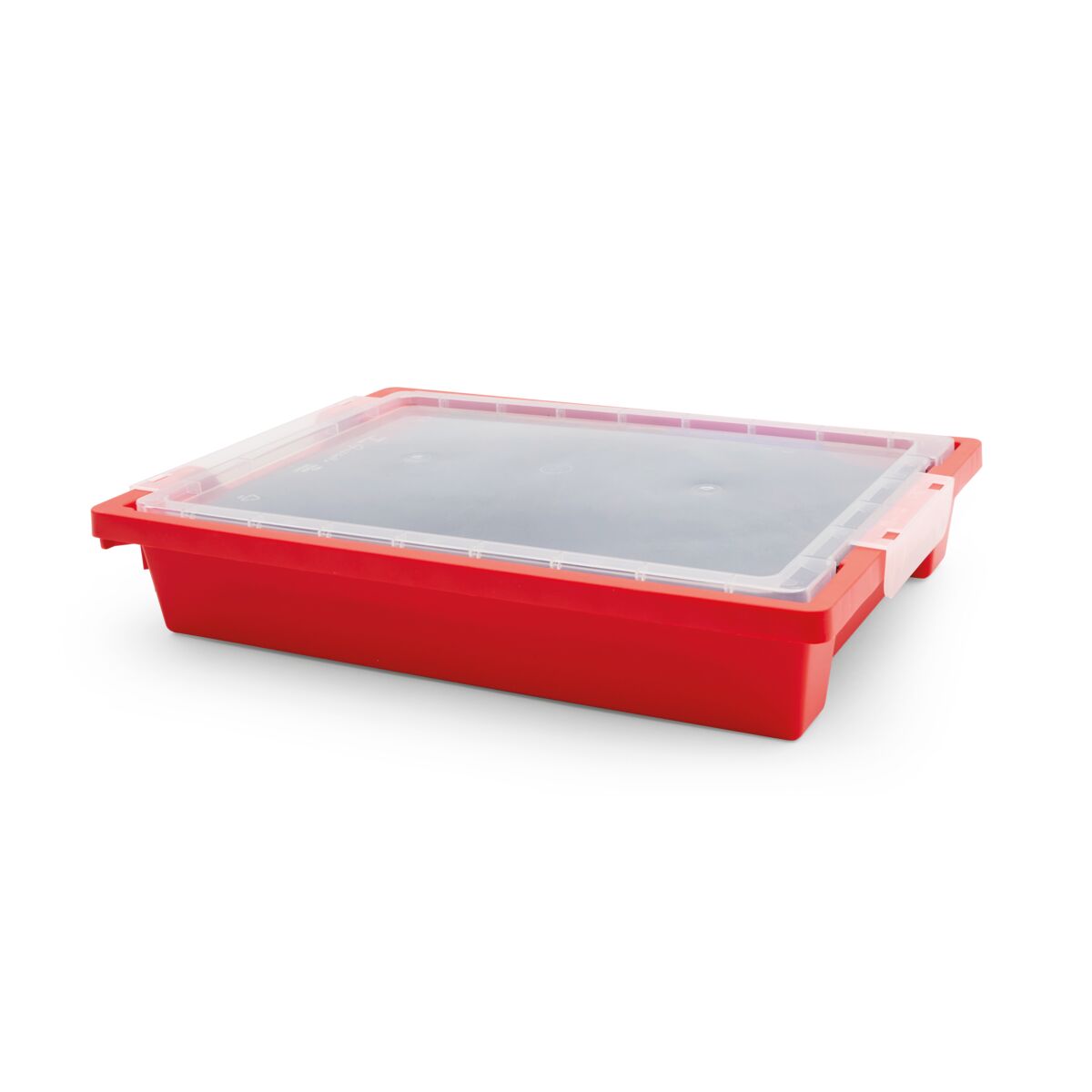

Set of apparatus for carrying out 11 fundamental student experiments on electronics. Stored in a tough Gratnell tray with foam inlay featuring recesses moulded to the shape of the apparatus and covered by a transparent lid. Circuits are assembled using components in plug-in housings plugged into a plug-in board. Power is supplied via an external power supply.
In the scope of delivery: comprehensive experiment descriptions (student / instructor version).

Includes 11 Experiments on the Subject of Electronics: ..
•   Characteristics of a semiconductor diode
•   Characteristic of an LED
•   Characteristic of a zener diode
•   Check how current flows through a transistor
•   Characteristics of a transistor
•   LDR photoresistor (light dependent resistor)
•   Thyristors in DC circuits
•   Temperature response of NTC and PTC thermistors
•   Delayed switching processes
•   Characteristics of a field effect transistor
•   Check for mains hum

Contents: ..
1   Set of 10 Jumpers
1   Resistor 100 Ω, 2W
1   Resistor 470 Ω, 2 W
1   Resistor 1 kΩ, 2 W
1   Resistor 4.7 kΩ
1   Resistor 10 kΩ, 0.5 W
1   Resistor 47 kΩ, 0.5 W
1   Electrolytic Capacitor 100 µF, 35 V
1   Electrolytic Capacitor 470 µF, 16 V
1   E 10 Socket, socket upward facing
1   Set of 10 bulbs, 12 V; 100 mA
1   Set of 10 bulbs, 4 V; 40 mA
1   Single-Pole Rocker Switch
1   Single-Pole Push-Button Switches, normally open
1   Single-Pole Push-Button Switches, normally closed
4   Si-Diodes 1N 4007
1   Ge-Diode
1   Zener Diode ZPD 6.2
1   LED green
1   LED, red
1   LDR 05 Photoresistor
1   NTC Thermistor 2.2 kΩ
1   PTC Thermistor 100 Ω
1   Potentiometer 220 Ω, 3 W
1   NPN Transistor BD 137
1   PNP Transistor BD 138
1   BF 244 Field Effect Transistor
1   TYN 1012 Thyristor
1   Single-Pole Change-Over Switch
1   Set of earpiece headphones
1   USB-stick with experiment descriptions

Item No.: 1021672 [U8557920]
Weight 3.634 kg
Brand 3B Scientific

Documentation

PDF Product Manual - Student Kit - Higher Level Electronics - U8557920 [1021672] (EN)
