Resistance Bridge

Resistance Bridge, 1009885 [U8551002], Resistance Measurement (Small)

Resistance Bridge

222.00 €

In stock

Overview of all experiments in which the product is used

Ask a question

Description
Experiments

Product Information:_..

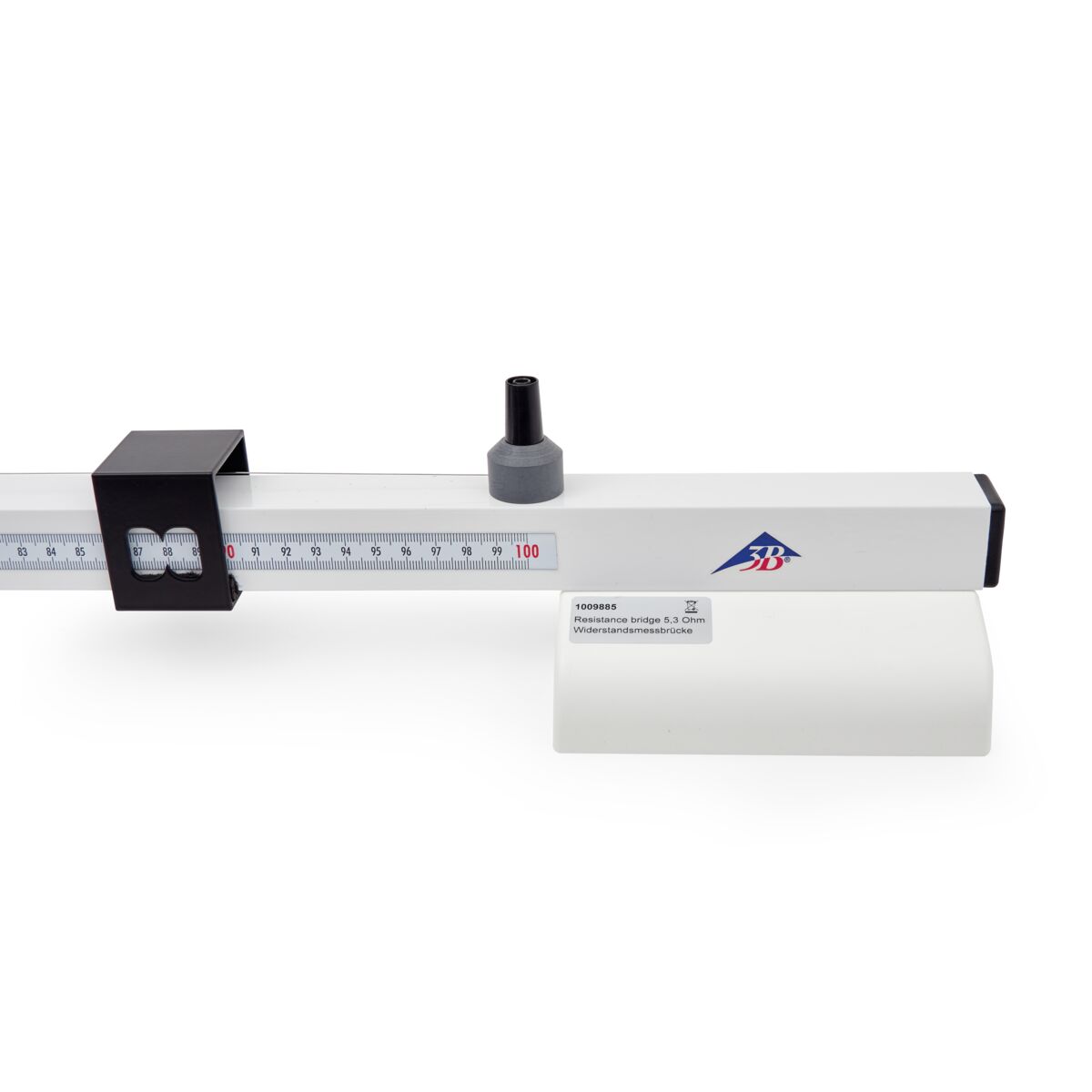

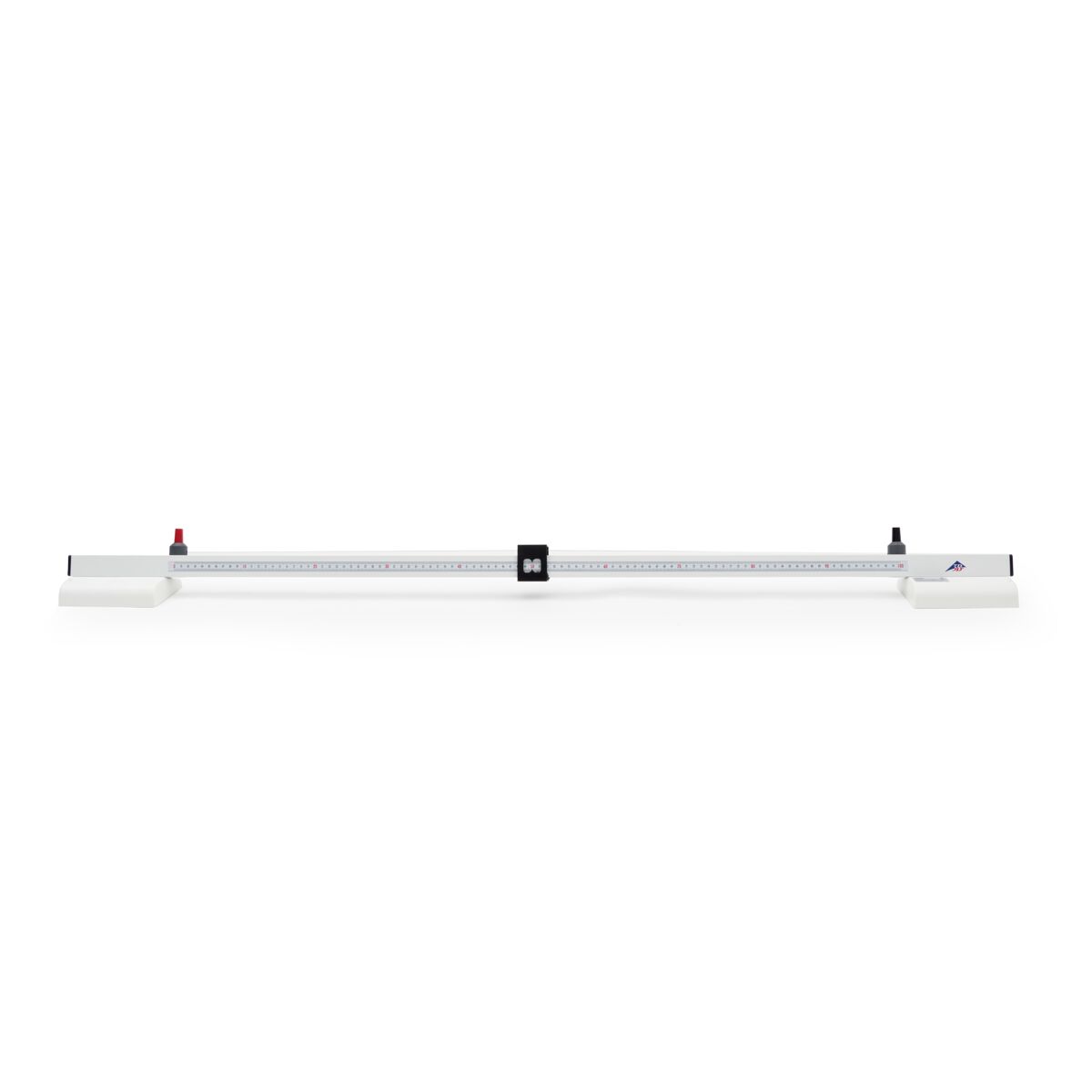

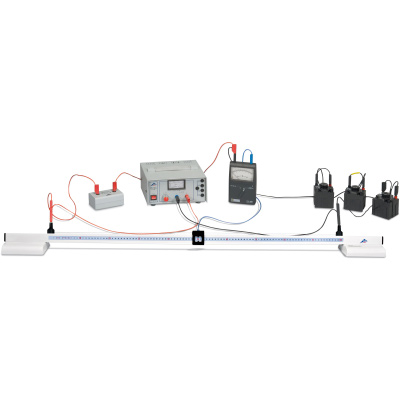

Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages. It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.

Specifications:_..

Dimensions:	1300 mm x 100 mm x 90 mm approx.
Rail:	30 mm x 30 mm approx.
Scale:	0 – 1000 mm
Scale divisions:	mm
Resistance wire:	1 m, 0.5 mm dia.
Material:	NiCr
Resistance:	5.3 Ω
Connection:	4 mm safety jacks
Maximum permissible voltage:	8 V
Maximum permissible current:	1.5 A
