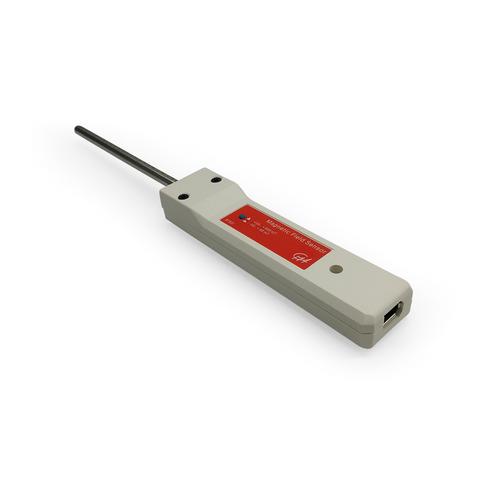

Magnetic Field Sensor, Transverse,
-100 mT to +200 mT

Magnetic Field Sensor, Transverse, -100 mT to +200 mT, 1021685 [UCMA-BT52i], Sensors for Physics
83.00 €
In Stock
In stock
Application: ..
This sensor can be used, for example, for:..
• measuring the magnetic field near a (strong) permanent magnet,
• investigating the magnetic field near a current-carrying wire,
• measuring the magnetic field near or within a coil or air-core solenoid.

Product Information: ..

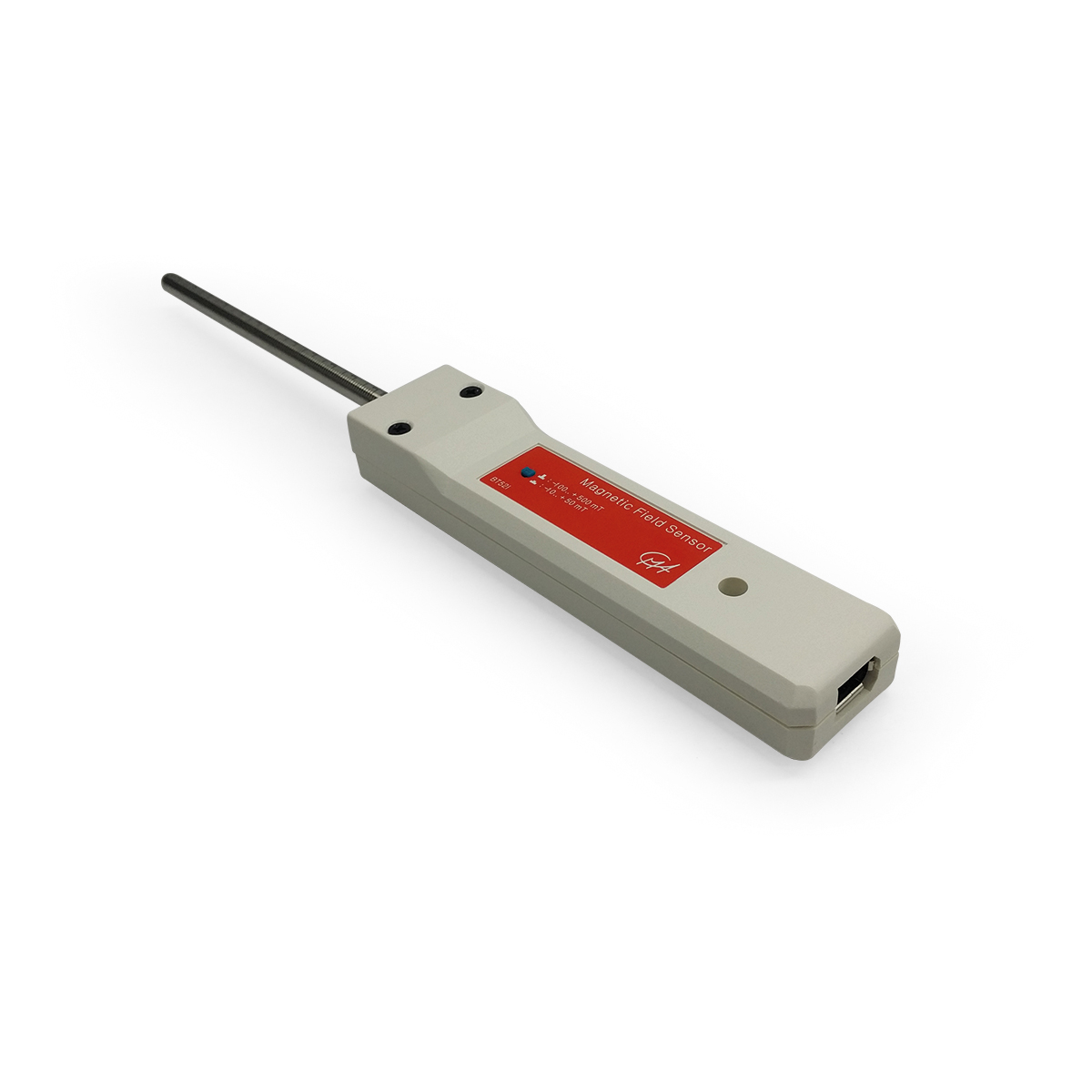

This magnetic field sensor contains a Hall sensor that is sensitive to magnetic fields. The Hall sensor is located at the probe tip of the stainless steel tube, at the 0 cm position indicated on the metal tube. The face of the Hall sensor is oriented perpendicular to the axis of the stainless steel tube, and the sensor is most sensitive when the metal tube is positioned parallel to the magnetic field lines. The sensor is therefore very suitable for measuring the magnetic field inside coils or near (very strong) permanent magnets.
The magnetic field sensor has two measuring ranges that can be selected using a switch.

Specifications: ..
Model: BT52i
Measuring range: -10 ... +50 mT  -100 ... +200 mT
Resolution (12 bit):
    0,024 mT
       0,24 mT
Accuracy: ± 5%
Voltage offset: 0.5 V ± 3%

Additionally required: ..
Variant 1: (Windows PCs, Macs, iPads, iPhones, Chromebooks,  Android tablets and Android smartphones)..
1 x 1021514 Sensor Cable
1 x 1022284 WiLab Interface
1 x Freeware Coach 7 Lite or Software License Coach 7
Variant 2: (Data Logger VinciLab 2)..
1 x 1021514 Sensor Cable
1 x 1021477 VinciLab 2 (Software Coach 7 included)

Item No.: 1021685 [UCMA-BT52i]
Weight 0.16 kg
Dimensions 0 x 0 x 0 cm
Brand CMA - Centrum voor Microcomputer

Documentation

PDF Safety and Warning Information
